4" Precision Polishing Fixture with Vacuum Jig for Faster Thinning and Polishing

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-EQ-PF-4-1V
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Min order:
2
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

4" Precision Polishing Fixture with Vacuum Jig for Faster Thinning and Polishing

SPECIFICATIONS:

Features

· Precision Polishing Jig for accurate wafer/substrate polishing and back-thinning

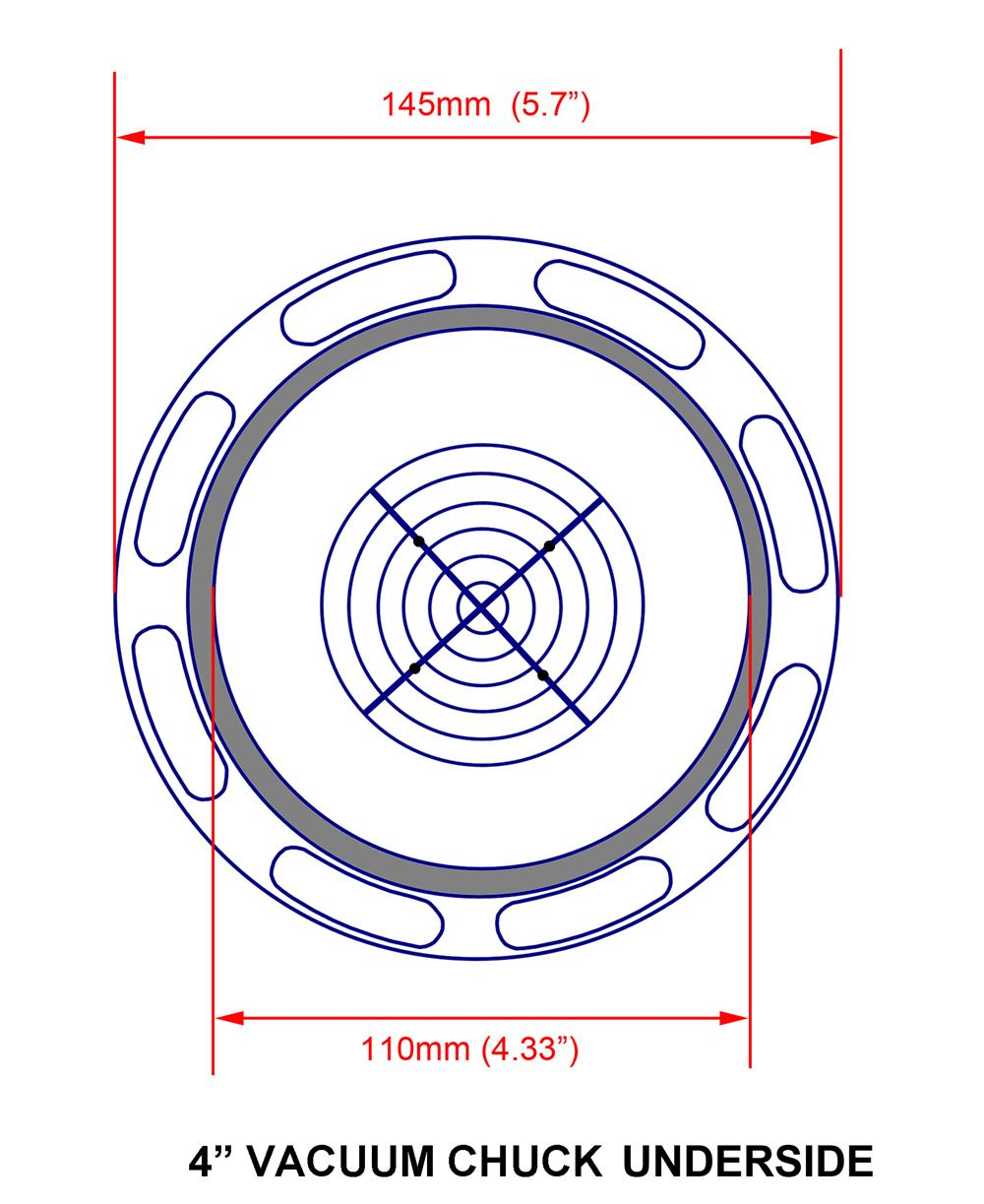

· 4" Diameter sample holder vacuum chuck to take wafer or substrate up to 4"

· Vacuum chuck can suck wafer through vacuum pump without wax and make wafer sample mounting clean, faster and flat

· 2 feet length vacuum tube is included to connect the vacuum pump, which keeps vacuum pressure during jig rotation

· Thickness control screw fixture with a resolution of 0.005 mm to limit stock remove

· One digital micrometer is included with a resolution of +/- 1 micron for more accurate control polishing remove

· Two dead weights are included for adjusting polishing gravity

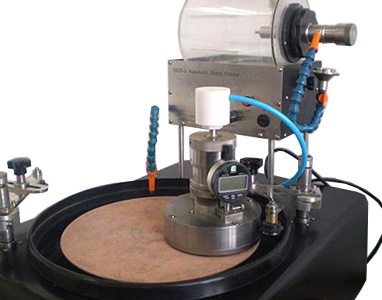

· This Polishing fixture can fit with, Unipol 1202 and Unipol 1502 and any precision 12" or larger polishing machine with yoke support to achieve automatic polishing or thinning.

· Require a vacuum pump with a rate > 70 L/ min.

· Maximum travel distance: 6.7mm

· Net Weight: 18 lbs

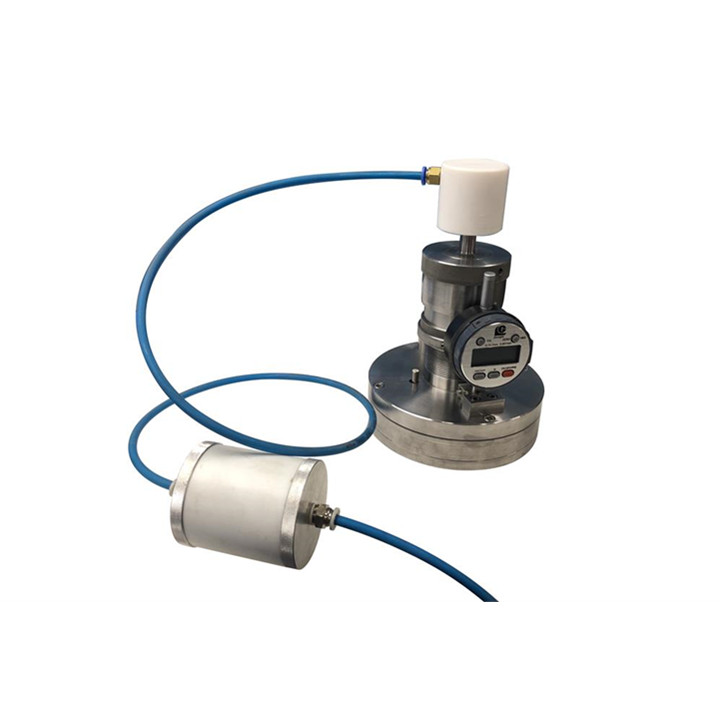

Product Images

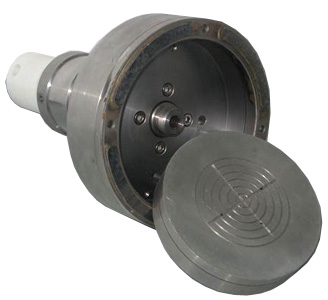

Note: super-hard tungsten alloy is weld on the bottom of jig for polishing responsible

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
