Item No.:
TMAX-EQ-PF-2-1-LDPayment:
L/C, T/T, Western Union, Credit Cards, PaypalMin order:
2Shipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

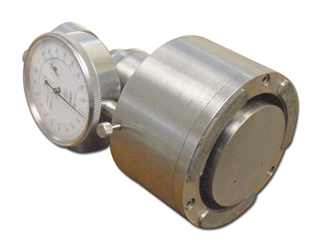

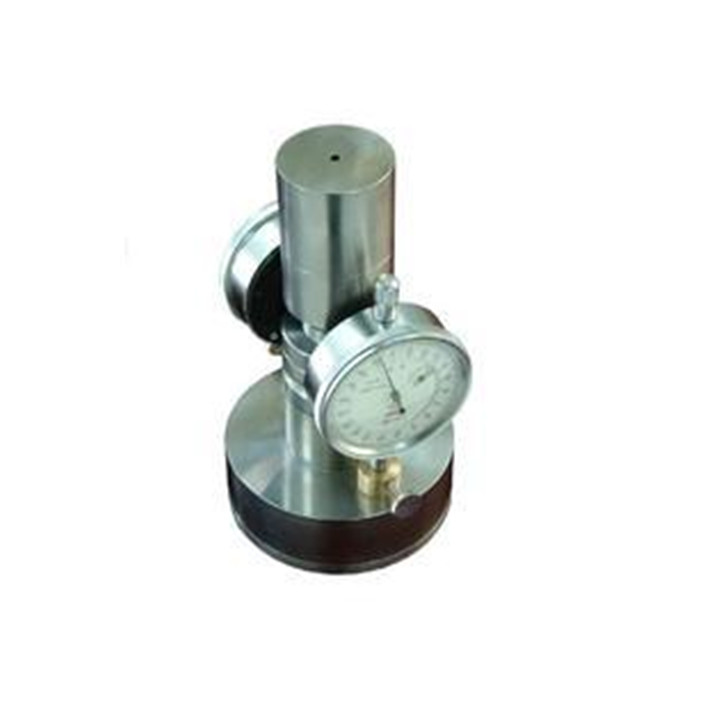

Two years limited warranty with lifetime technical support2" Polishing Fixture for Automatic Thinning and Polishing
|
|
· Precision Polishing Jig for accurate wafer / substrate polishing and back-thinning · Sample holder can take wafer or substrate up to 2" Diameter with 2mm Max Thickness · Thickness control screw fixture with resolution of 0.005 mm to limit stock remove · Two micrometers are included with 0.001 mm increments · Two dead weights are included for adjusting polishing gravity · This Polishing fixture can fit with Unipol-810, Unipol-802 and any precision 8" polishing machine with yoke support to achieve automatic polishing or thinning. · Excellent for preparation of TEM sample and IC section analysis and Flat single crystal substrates |
|
Dimension |
· Weight 6.95 lbs with both force weights. · Sample plate diameter: 2.125 inches · Diameter of the entire base: 90mm (~3.5 inches) |
|
|
· Usually mounting a piece of sample on the surface of the bottom plate by wax. · It will fit another polisher if it came with the Y-sharp rack support.
· Note: super-hard tungsten alloy is weld on the bottom of jig for polishing resistible. |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
