Voltage

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.

Power

400W

Two Super Flat Lapping Plate

Flatness< 0.25 micron/Inch²

Surface Run-out

< 5 micron

Features

· One cast-iron plate for lapping and one cast aluminum plate for polishing

· Heavy-duty aluminum case with bright painting

· Three rocking workstations equipped with wafer holders and condition rings

Sample Size & Workstation

· Three workstations with 4" sample per running

· One workstation with 6" sample per running

· One workstation with 8" sample per running

Adjustable Timer for Auto-stop

0~99 hours

Variable Speed

0 to 125 RPM with digital display

Dimensions

720mm L x 580mm W x 380mm H

Optional Accessories

· Consumables for polishing/lapping/grinding. Click Pic. 1  to see more details

· The multi-sample polishing fixture is available up to 3 x 8  pcs for 1" dia. samples per batch (Pic. 1)

· 4" Polishing Fixture With Pressure Indicator for Precision / Automatic Thinning and Polishing- EQ-PF-4-1P is available for ultra-flat surface lapping and polishing (Pic. 3 &4)

· Precision Thickness Checker with 0.001 mm Dial/Digital Indicator available at an extra cost (Click Pic.5)

  Pic. 1 Pic. 2  Pic. 3Pic. 4Pic. 5

Compliance

· CE Certified

· NRTL certification is available at the extra cost

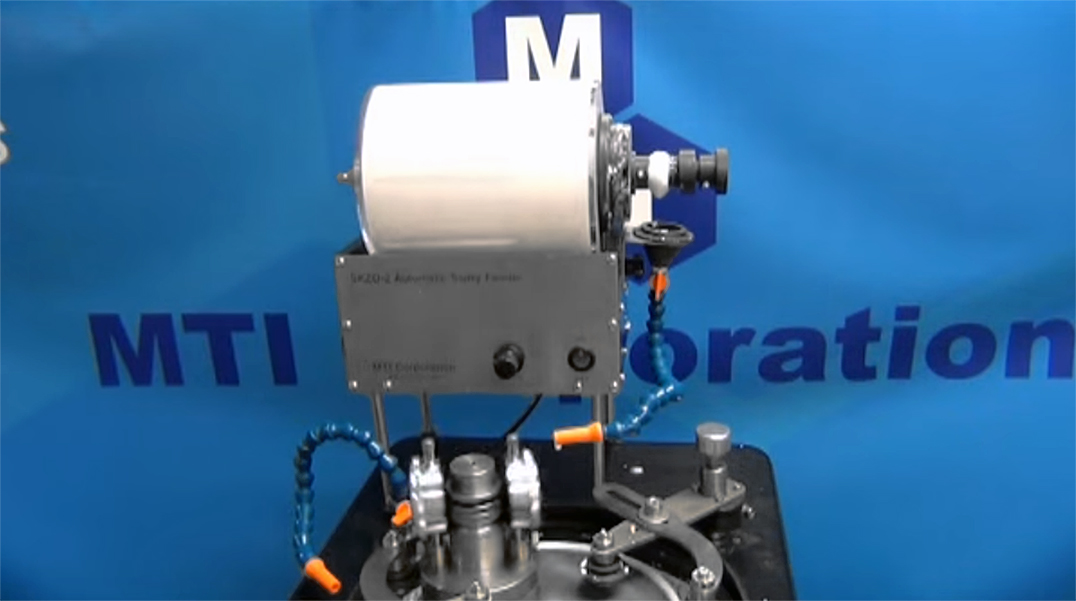

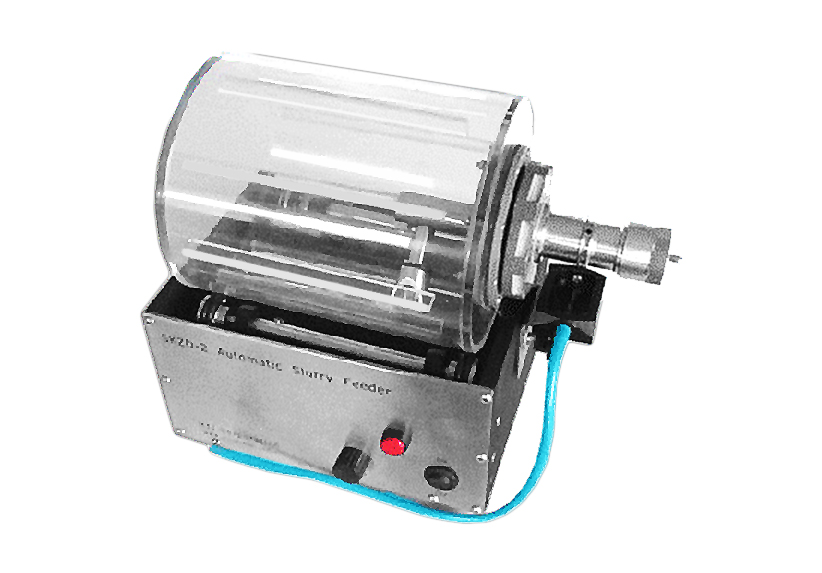

Optional Automatic Slurry Feeder

· Automatic slurry feeder SKZD-2 is not included

· The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for a long time polishing

· Please click the left picture to order.

Warranty

· One year limited warranty with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Shipping Dimensions

· 48" x 40" x 35" (L x W x H)

Shipping Weight

· 420 lbs

Application

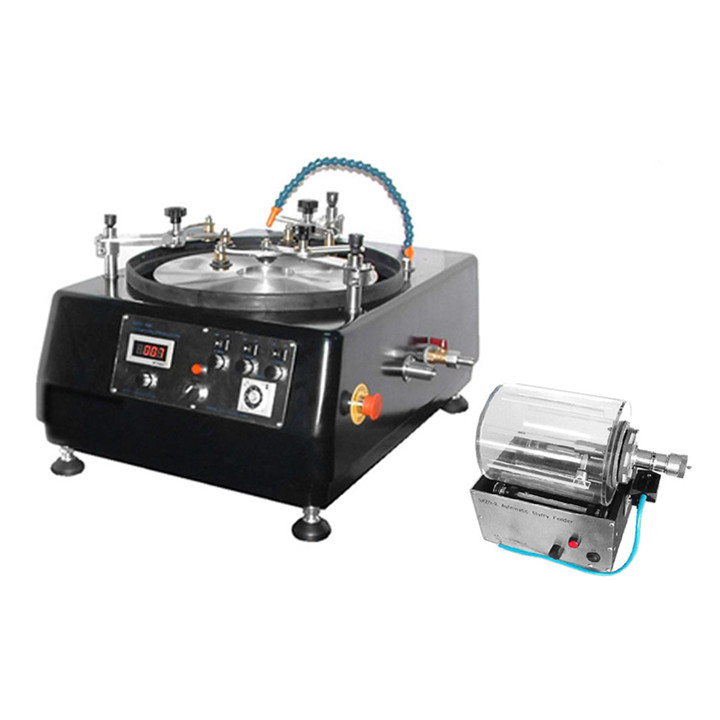

Unipol-1502 allows a sample size up to 8" with a different number of workstations involved. A total of 3 yokes are equipped.
