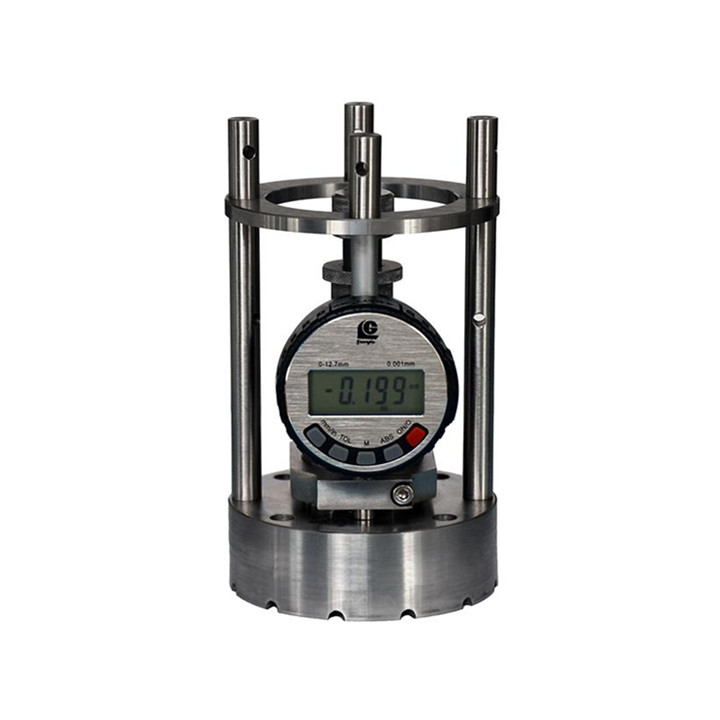

2" Polishing Fixture with a Digital Micrometer for Precise and Automatic Thinning and Polishing

Features	· Precision Polishing fixture for accurate wafer/substrate polishing and back-thinning · Maximum sample thickness: 10mm · Maximum sample diameter: 50mm · Sample holder travel distance: 10mm Max. (Verticle movement) · Sample plate pressure without load: 500g · May reduce wafer thickness < 50 microns with a proper procedure

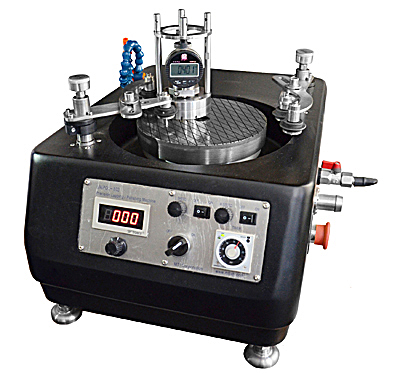

Compatibility	· This Polish Fixture is compatible with Unipol-810, Unipol 802, Unipol 1202, Unipol 1502 and Unipol 1200S.
Digital Micrometer	· One digital micrometer is included with the resolution of +/- 1 micron for more accurate lapping.
Dead Weight	· Standard package: a set of weights (total 400g) · Optional dead weights available: 25g, 50g
Size	O.D: 89mm; Height: 154mm

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
