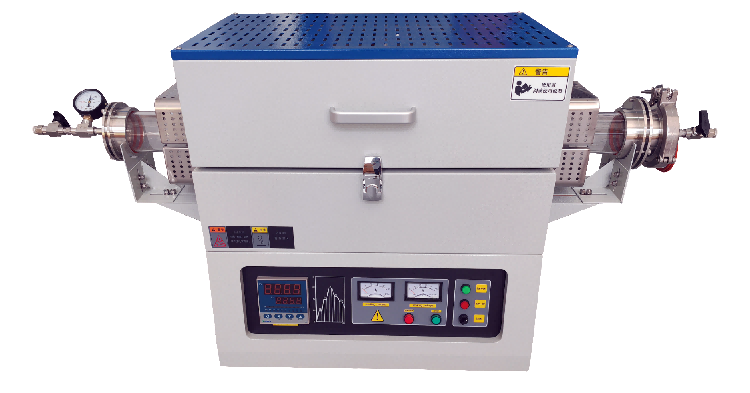

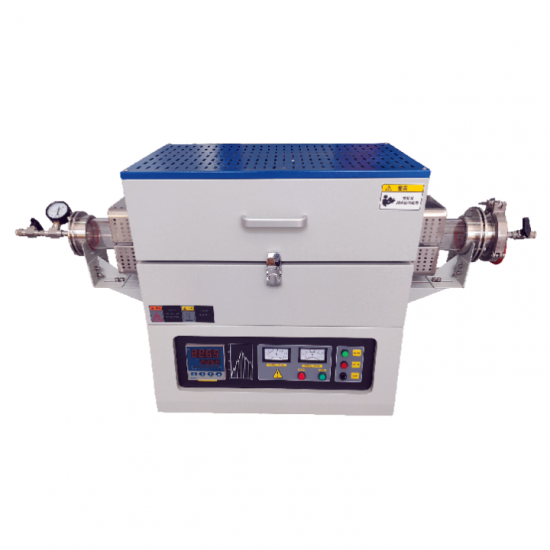

Main parameter

PN: TMAX-SK2-2-12TPC2

Max.Temp: 1200C

Working temperature:0-1100C

Tube diameter:80mm

The heating zone length:205mm(single zone)

Length:800mm

Tube material:Quartz tube

Power:2kw

Heating rate:0~20 Degree/Min

Voltage:220V,single phase 50/60HZ

Max.vacuum:-0.1Mpa

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

External dimensions: 420*505*646mm

Net weight:about 78kg

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with vacuum pump, and all holes are equipped with ball valves.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

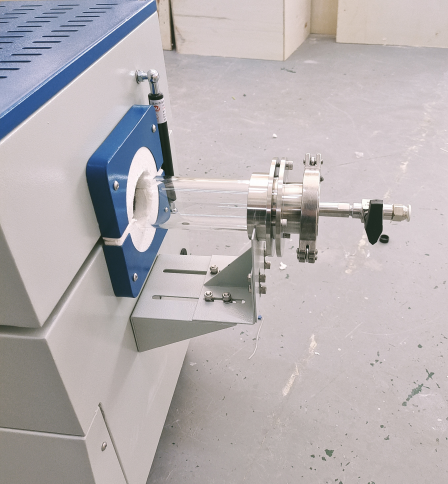

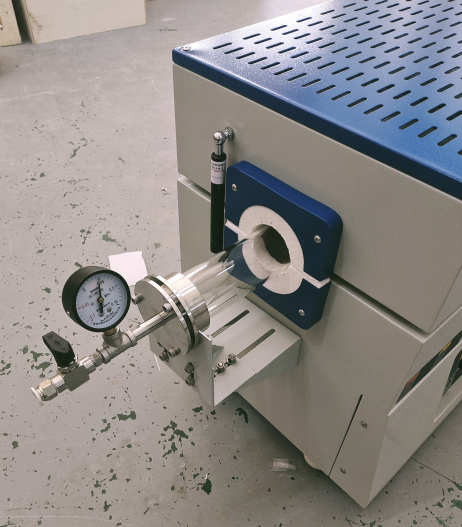

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

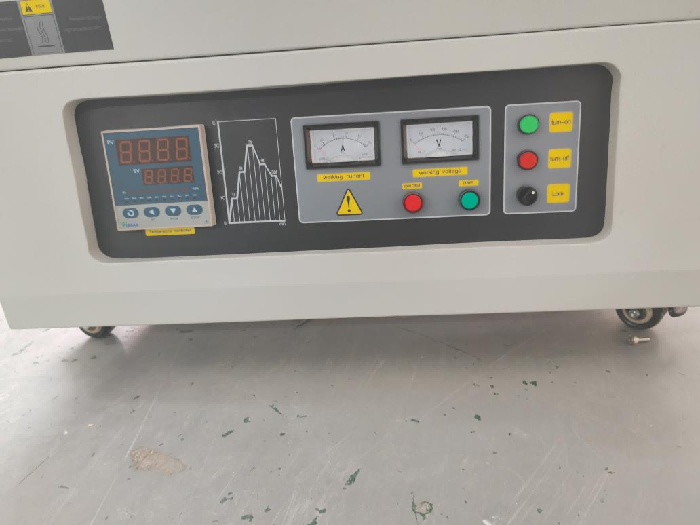

Temperature control

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Quartz tube

1 pcs

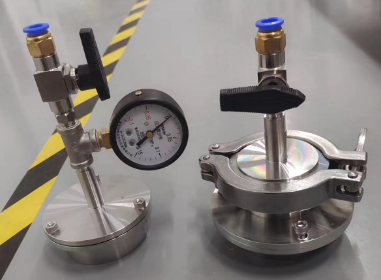

Stainless steel flange

1 set

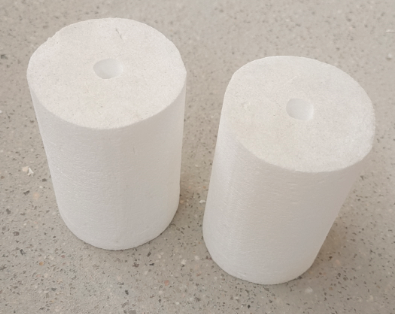

Tube stopper

2pcs

10mm Air pipe

1piece

User manual

1 book

Vacuum pump

1 set
