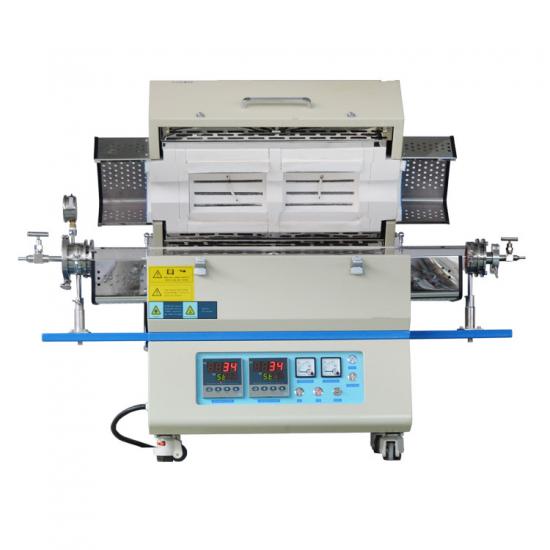

Model

TL1200-1200-I

TL1200-1200-II

TL1200-1200-III

TL1200-1200-IV

Power

3.6KW

3.6KW

3.6KW

5.2KW

Tube size（OD）(mm)

Dia60（OD）X1000mm

Dia80（OD）X1000mm

Dia100（OD）X1000mm

Dia150（OD）X1000mm

Dimensions

1140X460X695

1140X460X695

1140X460X695

1110X530X647

Supply voltage

                 220V

Phase

                Single

Heating element

           Resistance wire

Temperature control

UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2.Withover-temperatureprotection,theelectricfurnaceheatingcircuitisautomaticallycutoffwhenthetemperatureis over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electricfurnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

(you need to pay extra for the replacement of imported instruments, optional)

FP93 temperature controller        European instrument   Touch screen instrument

(shimaden, Japan)

Furnace material

High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

Formed by Japanese technology.

The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

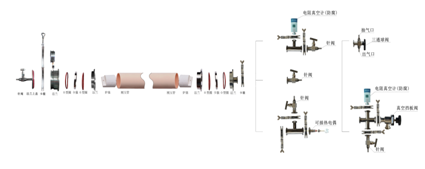

Valve and flange

60/80/100 top view

Control accuracy

+/- 1 ℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E Simenkang, Germany

The highest temperature in the first and second

temperature zones

1200 ℃

Rated temperature in the first and second

temperature zones

1100 ℃

Length of heating section in the first

temperature zone

205mm

Length of heating section in the second

temperature zone

205mm

Heating rate

≤30 ℃/ Min (it can be modified as required)

Temperature field curve

Recommended rate of

temperature rise

≤15  ℃/ Min

Thermocouple Type

K Type

Total constant temperature

length

250mm

Peripheral surface

temperature

≤45℃
