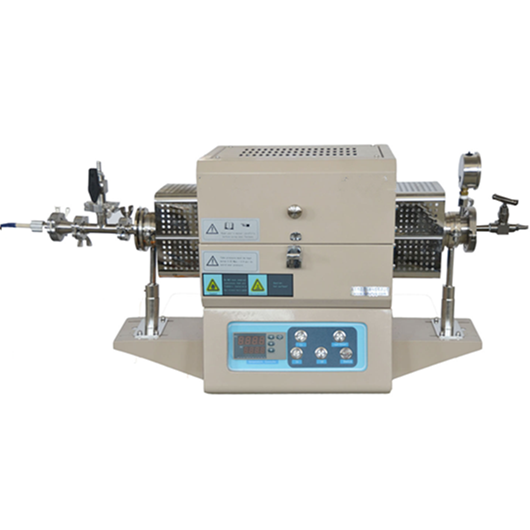

Lab 1200C Mini Tube Furnace with Small Tube External Dia25/50*600 mm

Lab 1200C Mini Tube Furnace with Small Tube External Dia25/50*600 mm

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-1200minitube
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lab 1200C Mini Tube Furnace with Small Tube External Dia25/50*600 mm



1. This tube furnace uses resistance wire as heating element, double-layer shell structure and 30-stage program temperature control system, phase shift trigger, thyristor control, furnace is made of imported alumina polycrystalline fiber material, divided into upper and lower Two semi-circles, when it is necessary to rapidly cool or change the pipe, the furnace can be opened, and the double-layer furnace shell is equipped with an air-cooling system, which can quickly raise and lower the temperature. The two ends of the furnace tube can be sealed by stainless steel flange, and the stainless steel flange is equipped with a gas nozzle. , valves and pressure gauges, vacuum can reach 10-3 Pa when vacuuming, the furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is a high temperature atmosphere for universities, research institutes and industrial and mining enterprises. Ideal for sintering, atmosphere reduction, CVD experiments, vacuum annealing.


2. Installation conditions:

1) Power 220V 50HZ 16A air switch or socket

2) No water cooling is required, so no cooling water is needed


3. Furnace shell structure: The furnace shell is made of iron plate, two-layer shell, air-cooled between the two shells, ensuring that the surface temperature of the shell is below 45 degrees.


4. UAV program temperature control instrument

1) 30-stage program temperature control can only be adjusted by PID.

2) With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3) With 485 communication interface (standard when purchasing software)

4) It has the function of power-off protection, that is, when the furnace is powered on after the power is cut off, the program does not rise from the starting temperature, but rises from the temperature when the power is turned off.

5) The meter has the function of temperature self-tuning.

(you need to pay extra for the replacement of imported instruments, optional)


1). FP93 temperature controller (shimashima, Japan)

2). EUROTHERM instrument

3). Touch screen instrument


5. Open cover protection system: The furnace is equipped with a travel switch, which automatically cuts off the power when the furnace door is opened, effectively ensuring the safety of the user.

6. Furnace material: Imported furnace material, no powder, good material insulation performance, high reflectivity, balanced temperature field, strong resistance to thermal expansion and contraction.

7. Control system: 1) Electrical appliances: Chint, 2) SCR: Germany Ximenkang 106/16E.

8. Flange: Double-ring sealing technology ferrule flange is adopted to effectively improve the airtightness of the flange. It is very convenient to remove and unload; the flange can be equipped with a variety of joints, and can be connected with a resistance vacuum gauge, KF25 bellows, Explosion-proof valves, etc.


Main technical parameters:

Power

1.2 KW

Standard configuration

Tube size

External Dia25/50 X600 mm

Quartz tube: 1


Stainless steel flange: 1 set


Valve: 2


Pressure gauge: 1


Air nozzle: 2


Furnace hook: 1


High temperature gloves: 1 pair


Sealing ring: 8



Boundary dimension

340X290X415mm

Supply voltage

110v/220V 60hz Single phase

Phase

Single phase

Heating element

Resistance wire

Control mode

Temperature control in 30 stages

Chambermaterial

Aluminium oxide polycrystalline fibre

(import)

Control precision

+/- 1℃

Maximum temperature

1200℃

Temperature rating

1100℃

Heating length

200 mm

Flange

304 stainless steel, bayonet type, easy to remove

Thermocouple Type

K type

Peripheral surface temperature

less than45℃

Heating rate

≤ 30℃/Min

Recommended heating rate

≤ 15℃/Min



mini tube furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
