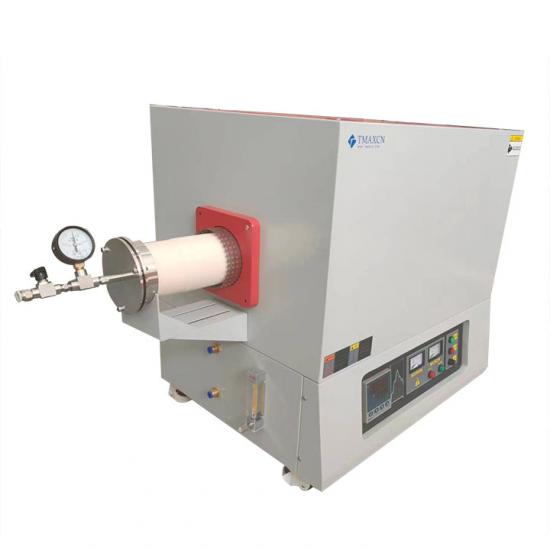

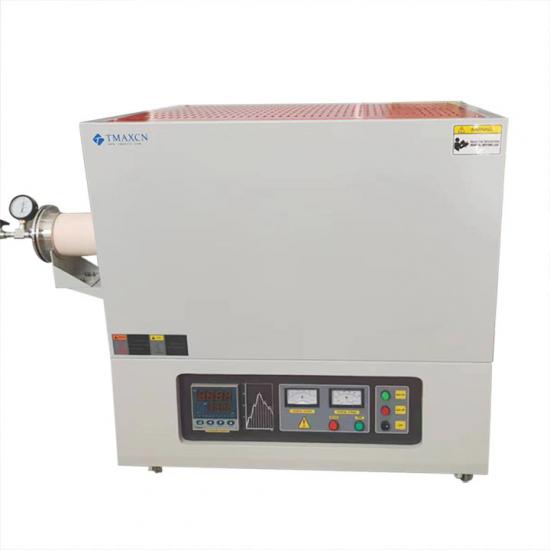

Lab 1400C Single Zone Tube Furnace Uses Silicon Carbon Rod as Heating Element

Lab 1400C Single Zone Tube Furnace Uses Silicon Carbon Rod as Heating Element

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-1400tube
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lab 1400C Single Zone Tube Furnace Uses Silicon Carbon Rod as Heating Element



This tube furnace uses silicon carbon rod as heating element, double-layer shell structure and Yudian temperature control instrument, which can carry out multi-stage program temperature control, phase shift triggering, thyristor control, and furnace polycrystalline fiber material. The flow meter is used to control the intake flow. Both ends of the furnace tube can be sealed by stainless steel flange. The stainless steel flange is equipped with a nozzle, a valve and a pressure gauge. When vacuuming, the vacuum can reach 10-3 Pa. The furnace is horizontal. Easy to use and easy to operate. The furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is an ideal product for high temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, research institutes and industrial and mining enterprises.


Model

  1400-I

1400-II

1400-III

Power

4 KW

4 KW

   6KW

Tube size(OD)(mm)



Dia 60 X1000

Dia80X1000

Dia100X1000

Corundum tube: high purity AIO ceramics (including) 99.5%

Two furnace plugs are placed on each side to block the heat radiation from the furnace tube center. The plugs must be placed in the correct position of the furnace chamber before heating

·        Dimensions

1120X490X855

1120X490X855

1120X520X945

Supply voltage

                                               220V

Phase

                                         single phase

Heating element

                                    silicon carbide rod

Temperature control type


UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1420 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning


(you need to pay extra for the replacement of imported instruments, optional)



 FP93 temperature controller (shimashima, Japan) EUROPEAN instrument Touch screen instrument


·        Chambermaterial

 1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2, using Japanese technology molding, no slag, good insulation.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

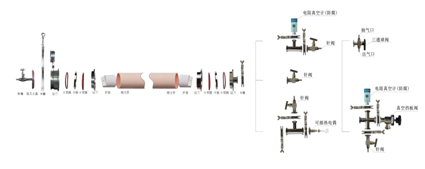

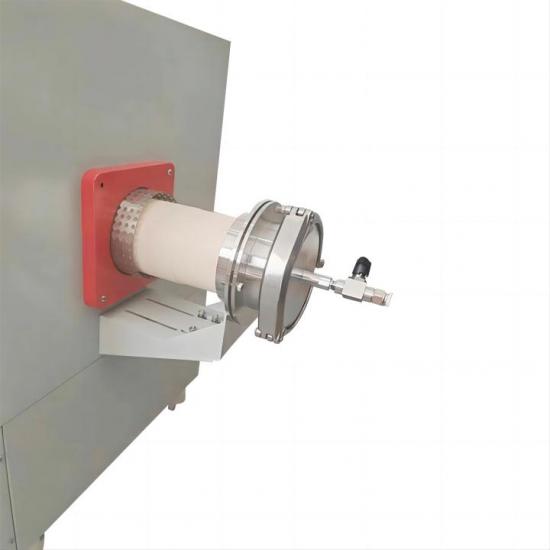

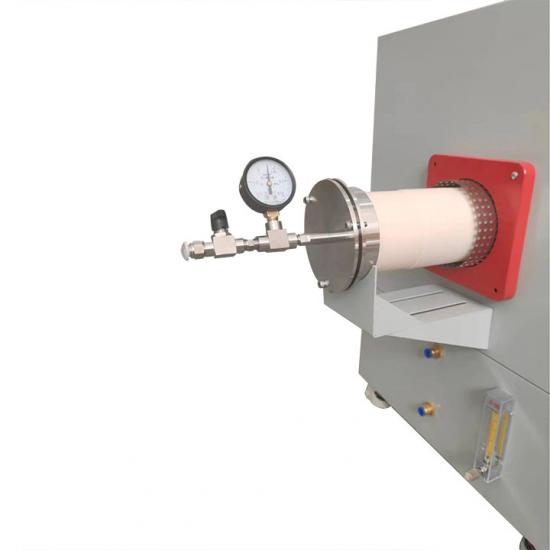

Valve and flange


Control precision

                                                     +/- 1℃

Trigger

                                    Phase-shifted trigger

Electric appliance

                                              Zhejiang chint

Silicon controlled

                                         106/16ESEMIKRON

Maximum temperature

                                                      1400℃

Rated temperature

                                                      1350℃

Heating rate

                         ≤30℃/ Min(it can be modified as required)

Recommended rate of temperature rise

                                                    ≤15 ℃/ Min

Thermocouple Type

                                                      S Type

Heating length

                                                     300mm

Temperature field curve


Temperature calibration (optional)

Regular temperature calibration of the tube furnace maintains the accuracy and uniformity of the furnace temperature. You can purchase a simple calibration tool from the company to assist you with this work. The complete calibration kit includes standard thermocouples, temperature calibrators, and compensation wires.



Peripheral surface temperature

≤45℃




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
