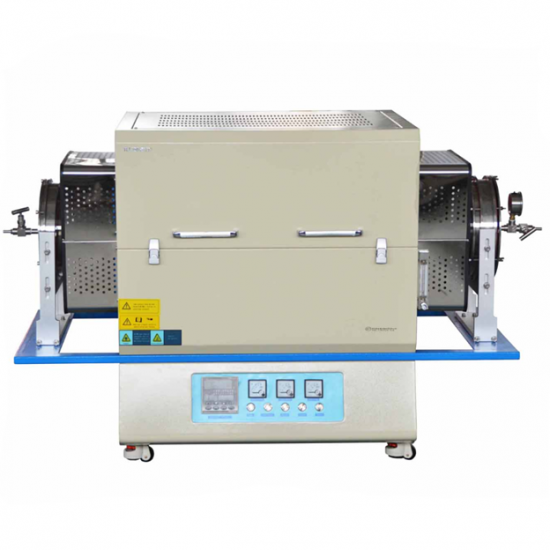

Lab Large 1200C Single Zone Tube Furnace with Big Tube size

Lab Large 1200C Single Zone Tube Furnace with Big Tube size

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-1200bigtube
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lab Large 1200C Single Zone Tube Furnace with Big Tube size

Model

TL1200-I

TL1200-II

  TL1200-III

Power

5KW

6KW

7KW

 Tube size(OD)(mm)

High purity quartz tube :150/200/250*1000mm(tube diameter optional)

with a furnace plug on each side, the furnace plug can block the thermal radiation in the center of the furnace tube, must be placed in the correct position in the furnace chamber before heating

Dimension

610X490X630

650X540X680

750X640X780

Voltage

                                                                220V

Phase

                                                          single phase

Heating element

Domestic high quality Kanthal resistance wire (imported Kanthal A1 from Sweden is optional)

Control Mode

Use Yudian program temperature control instrument (standard)

1. 30-segment program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected).

3. With 485 communication interface (standard with optional software)

4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is off.

5.The meter has the function of temperature self-tuning

(you need to pay extra for the replacement of imported instruments, optional)



FP93 instrument                     EUROTHERM instrument            Touch screen instrument

(shimaden, Japan)

Chamber material

1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded by Japanese technology.

3.The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software.

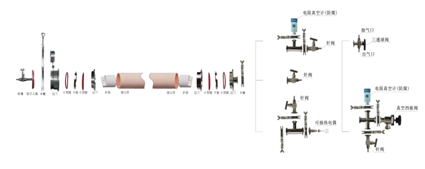

Valves and flanges



Planform

Control precision

                                                     +/- 1℃

Trigger

                                        Phase-shifted trigger

Electric appliance

                                            Zhejiang chint

Silicon controlled

                                      106/16E SEMIKRON

max temp

                                                   1200℃

rated temp

                                                   1100℃

heating rate

                               ≤30℃/ Min(Can be modified as required)

Recommended rate of heating

                                                 ≤20  ℃/ Min

Thermocouple Type

                                                   K Type

Length of heating section

                                                     400mm

Constant temperature length

                                                      150mm

Temperature field curve

temp calibration (optional)

Regular temperature calibration of the tube furnace can maintain the accuracy and uniformity of the furnace temperature. You can choose a simple calibration tool from our company to assist you in this task. The complete calibration kit includes standard thermocouples, temperature calibrators, and compensation leads.



Ambient surface temp

≤45℃


single zone furnace

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
