Main parameter

PN: TMAX-SK2-15-12TPT3

Max.design Temp: 1200C

Working temperature:0-1000C

Tube size:200*200mm

Three heating zone,heating zone length:500+500+500mm

Tube material: Square type stainless steel tube

Heating rate:0~20 Degree/Min

Voltage:220V/380V 50/60HZ

Power:15kw(subject to design)

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

No need vacuum

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

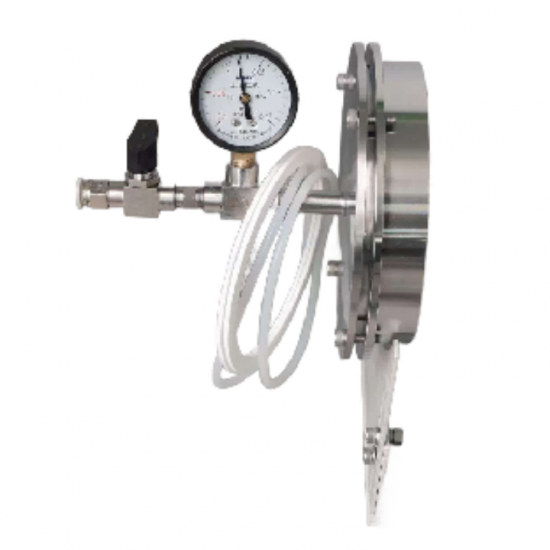

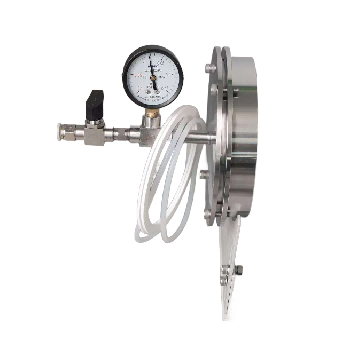

Each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with exhaust vents, and all holes are equipped with ball valves.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

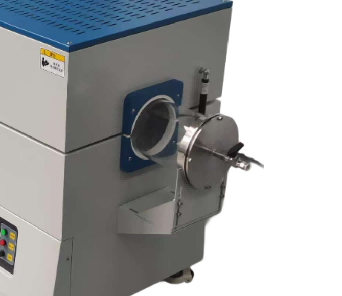

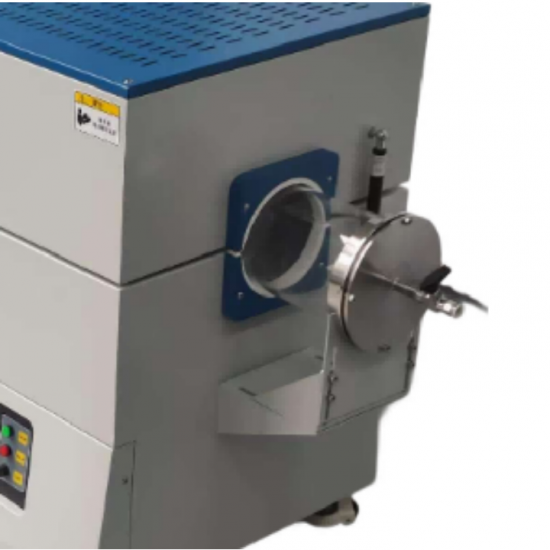

Adopt 304 stainless steel flange, with easy loading and unloading, Convenient for placing materials,oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

SS tube

1 pcs

Stainless steel flange

1 set

Tube stopper

2pcs

10mm Air pipe

User manual

1 book
