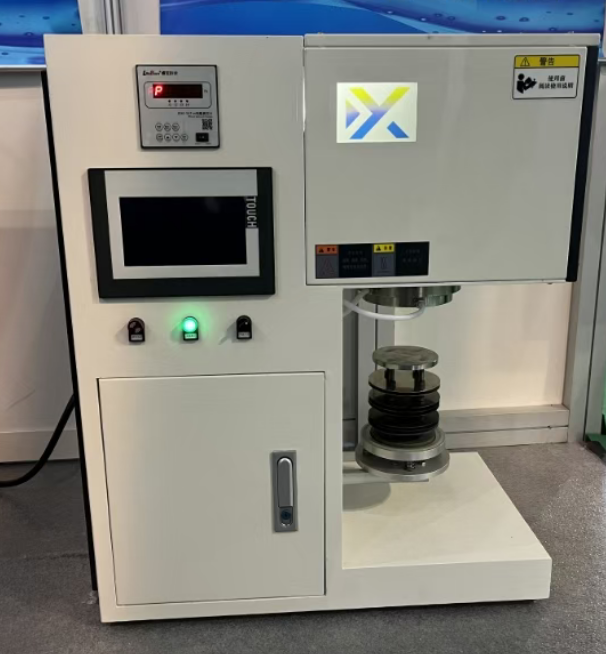

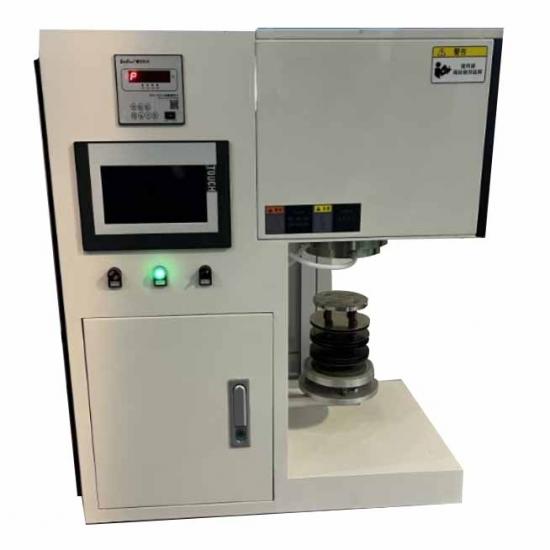

Main parameter

PN: SK2-XY-12TP

Max.design Temp: 1200C

Working temperature:0-1100C

Tube outer diameter:130mm

The heating zone length:140mm(single zone)

Tube material:Quartz tube(Blind tube)

Power:3kw(subject to design)

Heating rate:0~20 Degree/Min

Voltage:240V,single phase 50/60HZ

Max.vacuum: 10pa(cold state)

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

Sample loading

The top material tray is electrically adjustable, making it convenient to place and retrieve materials.

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with vacuum pump, and all holes are equipped with ball valves. The maximum positive pressure in the tube does not exceed 0.02Mpa

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Adopt 304 stainless steel cooling flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Temperature control

Adopt international advanced touch screen temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Vacuum system

Vacuum pump: Two-stage rotary vane pump

Vacuum pump ultimate vacuum:10-1Pa

Furnace vacuum:10Pa

KF25 quick connect, vacuum bellows, vacuum gauge ect

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible tongs

1 pc

Quartz tube

1 pcs

Stainless steel flange

1 set

Sample Material Rack

1 set

10mm Air pipe

1piece

User manual

1 book

Chiller

1 set

Vacuum pump

1 set
