Ultrasonic Spray Pyrolysis Coating System Coater Supplier



Overview

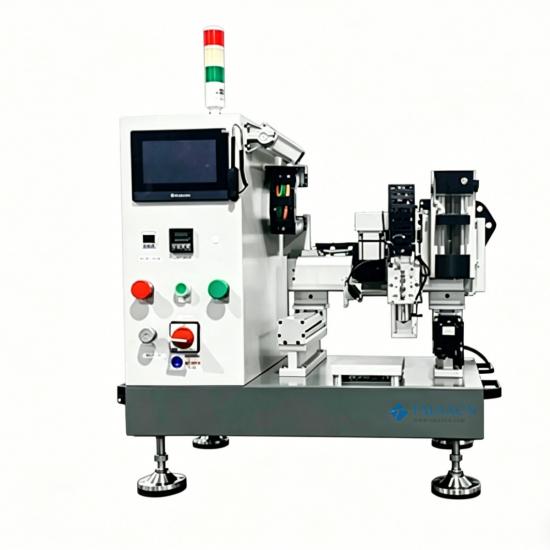

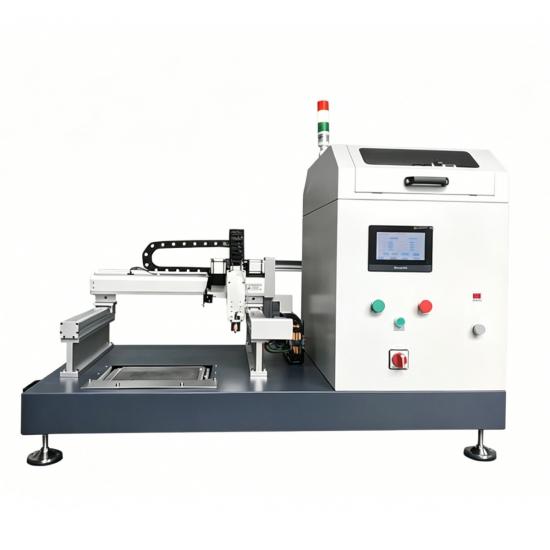

The CF02 Ultra-High-Temperature Ultrasonic Spray Pyrolysis System is designed for applications requiring moderate high-temperature drying, spray pyrolysis, spray drying, and substrate coating, with a surface temperature capability of up to 600°C. This system enables the preparation of uniform thin-film coatings, including:

· Indium Tin Oxide (ITO)

· Aluminum-doped Zinc Oxide (AZO)

· Zinc Oxide (ZnO)

· Fluorine-doped Oxide Layers

Customized Solutions

We provide tailored solutions for cutting-edge industries, including:

Industry	Applications
Nanotechnology	Functional thin films, nanocomposites
Fuel Cells	Electrode coatings, catalyst layers
Semiconductors	Conductive/insulating layers
Medical Coatings	Biocompatible films, drug delivery
Spray Pyrolysis	Precursor decomposition, oxide films

Key Advantages

· Full-spectrum support: End-to-end solutions for functional coatings, ensuring stable mass production.

· R&D customization: Specialized coating development for unique instrument requirements.

· OEM services: Comprehensive coating processing for diverse industrial needs.

---

Technical Highlights

Core Features

· Uniform thin-film deposition: Achieves coatings as thin as tens of nanometers.

· Precise flow control: Stable spraying even at ultra-low flow rates.

· High thickness accuracy: Exceptional control over coating uniformity.

· >95% liquid utilization: Minimizes waste and reduces operational costs.

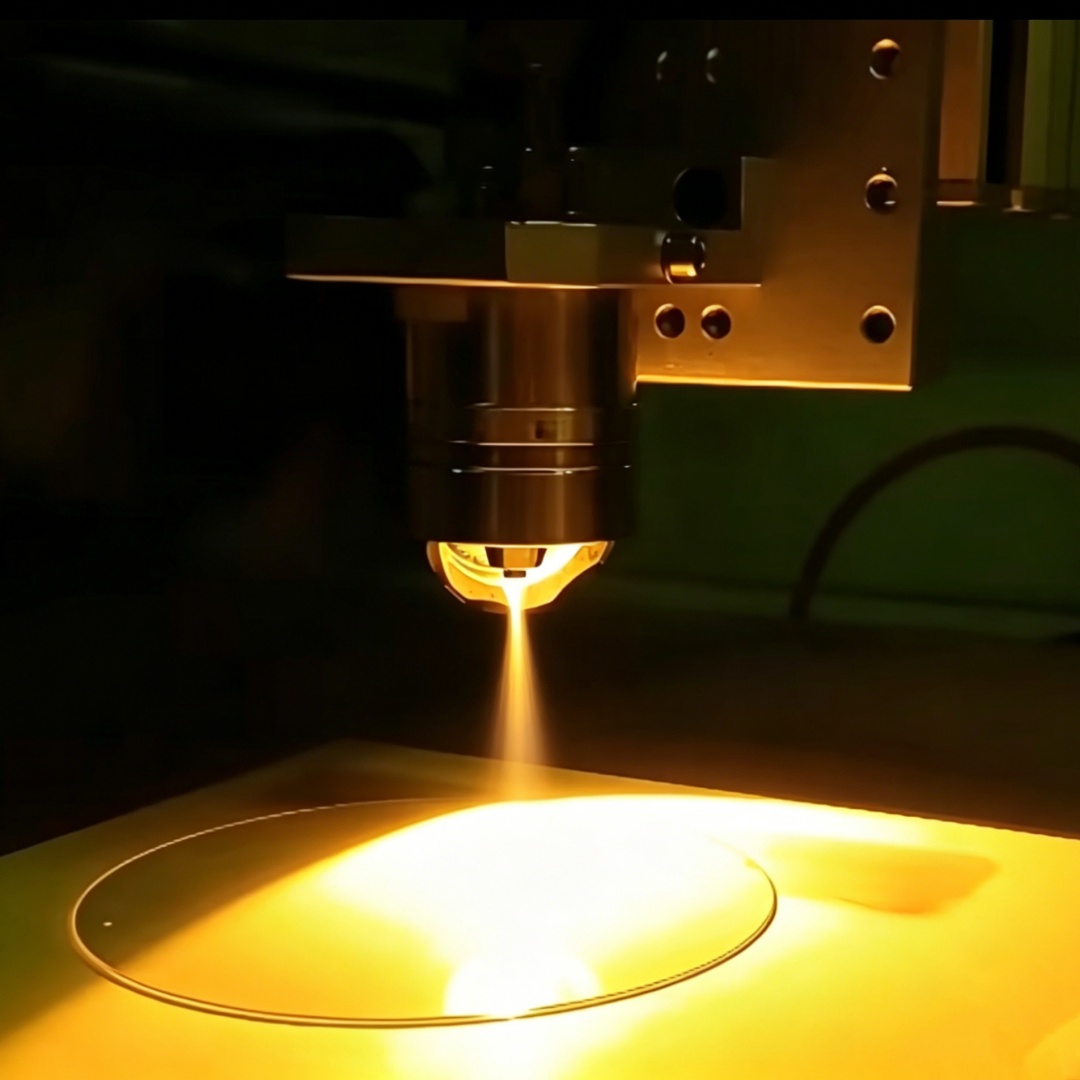

· Clog-resistant ultrasonic nozzle: Ensures uninterrupted operation.

· Compact benchtop design: Portable and space-efficient.

· Scalability: Suitable for both R&D and production-scale demands.

· Repeatable results: Highly controllable spraying for consistent performance.

Target Industries

· Electronics

· New Energy

· Biomedical

· Glass

· Textiles/Nonwovens

· Nanotechnology

---

Specifications

Basic Parameters

Parameter	Details
Dimensions	520 × 500 × 640 mm
Coating Area*	200 × 200 mm (customizable)
Power Supply	120V/220V (±10%), 50–60 Hz
Nozzle Options	Multiple ultrasonic nozzles available
Motion System	XYZ 3-axis precision control
Heating/Vacuum	Integrated heated/vacuum plate
Certifications	CE, FDA

Advanced Capabilities

· Ultrasonic nozzle technology: Enables nanoscale misting for perovskite, dye-sensitized, and organic solar cell research/production.

· 600°C thermal stability: Ensures dense, homogeneous coatings for transparent conductive layers in displays, sensors, and flexible electronics.

· Process versatility: Supports spray pyrolysis, dry deposition, and precursor decomposition for ceramics and functional oxides.
