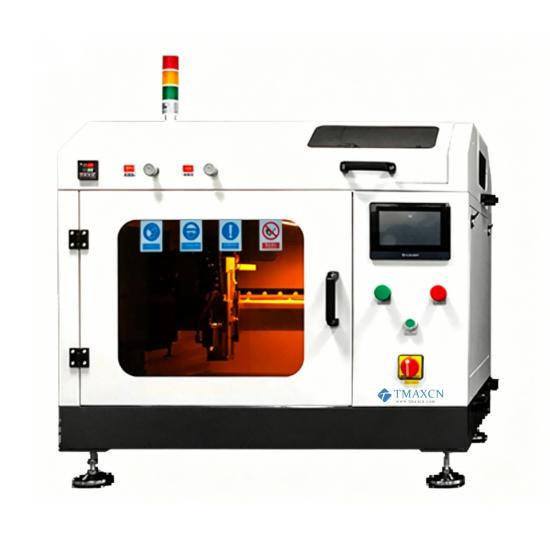

Ultrasonic Spray Pyrolysis Coater For Fuel Cells & Solar Cells



We provide customized solutions tailored to cutting-edge industries, including:

· Nanotechnology

· Fuel cells

· Semiconductor coatings

· Medical coatings

· Spray pyrolysis

Our services encompass:
✔ Full-spectrum functional coating solutions with long-term technical support for stable mass production.
✔ Custom R&D for specialized equipment coatings.
✔ OEM coating services for diverse applications.

---

A high-tech system delivering uniform, ultra-thin, and precisely controlled film coatings. Features real-time monitoring via a teaching device.

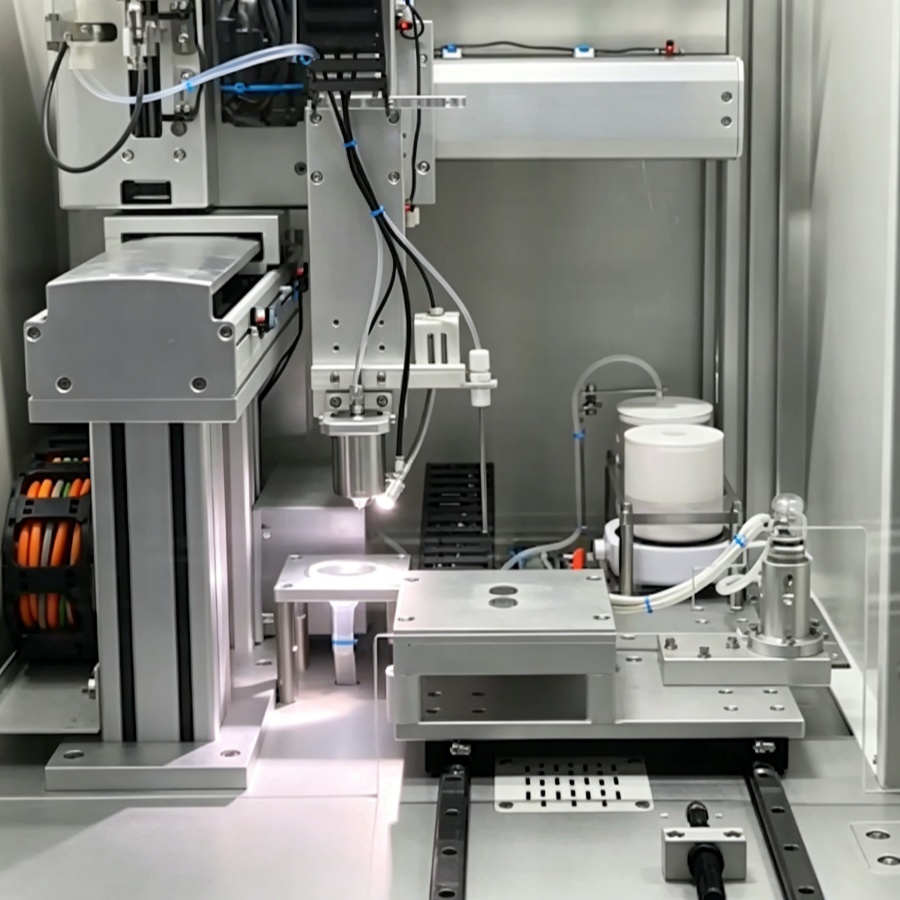

Integrated Systems

Component	Function
Ultrasonic system	Ensures fine atomization for even coating.
Carrier gas system	Enhances spray precision and control.
Heating stage	Optimizes substrate temperature for adhesion.
Vacuum adsorption	Secures substrates during coating.
Exhaust system	Safely removes fumes.
Laser teaching system	Facilitates precise nozzle alignment.

Applications

· Fuel cell proton exchange membrane spraying

· Thin-film solar cells

· Nano-modified material coating

· Glass coating

· Spray pyrolysis

---

Key Advantages

· ✅ R&D and small-batch production compatible

· ✅ Compact desktop design for easy mobility

· ✅ Material utilization rate up to 95%

· ✅ Uniform coating stability: ±5% thickness variance

· ✅ Effective spray area: 400mm × 400mm

---

Features & Specifications

· Uniform thin-film spraying (as thin as tens of nanometers).

· Precise flow control, enabling ultra-low-flow spraying.

· High thickness control accuracy.

· Liquid utilization >95%.

· Clog-resistant spray head.

· Portable benchtop design.

· Suitable for lab and industrial use.

· Highly controllable spraying for reliable, repeatable results.

Technical Parameters

Parameter	Specification
Dimensions	1260 × 850 × 950 mm
Spray area*	400 × 400 mm (*Customizable)
Power supply	120V / 220V ±10%, 50–60Hz
Ultrasonic nozzles	Compatible with multiple nozzle types
Control interface	7-inch HMI
Heating/vacuum plate	Standard
Certifications	CE, FDA
