Benchtop Ultrasonic Spray Coating Machine Equipment for Thin Film



Product Overview

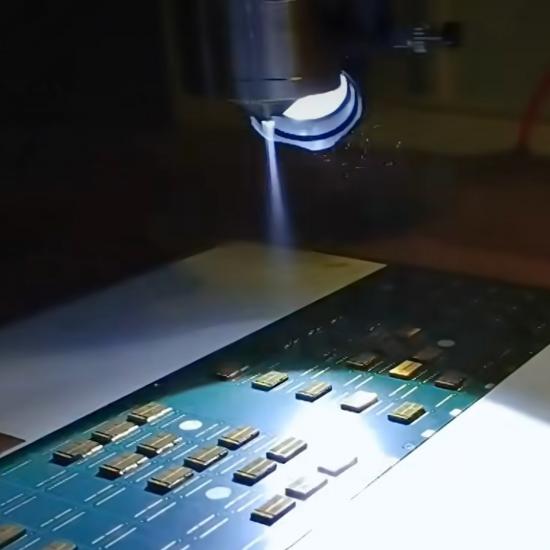

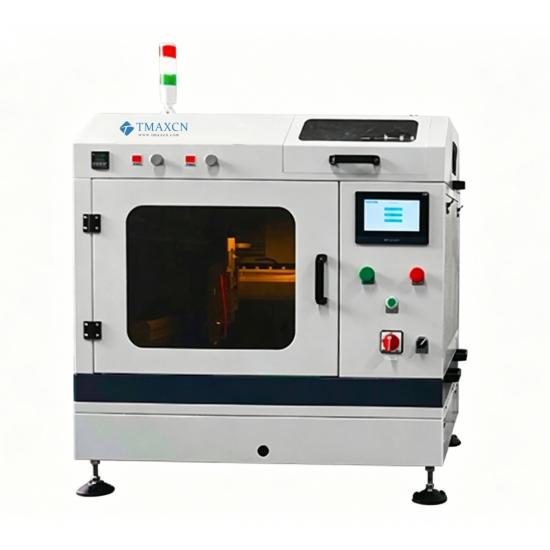

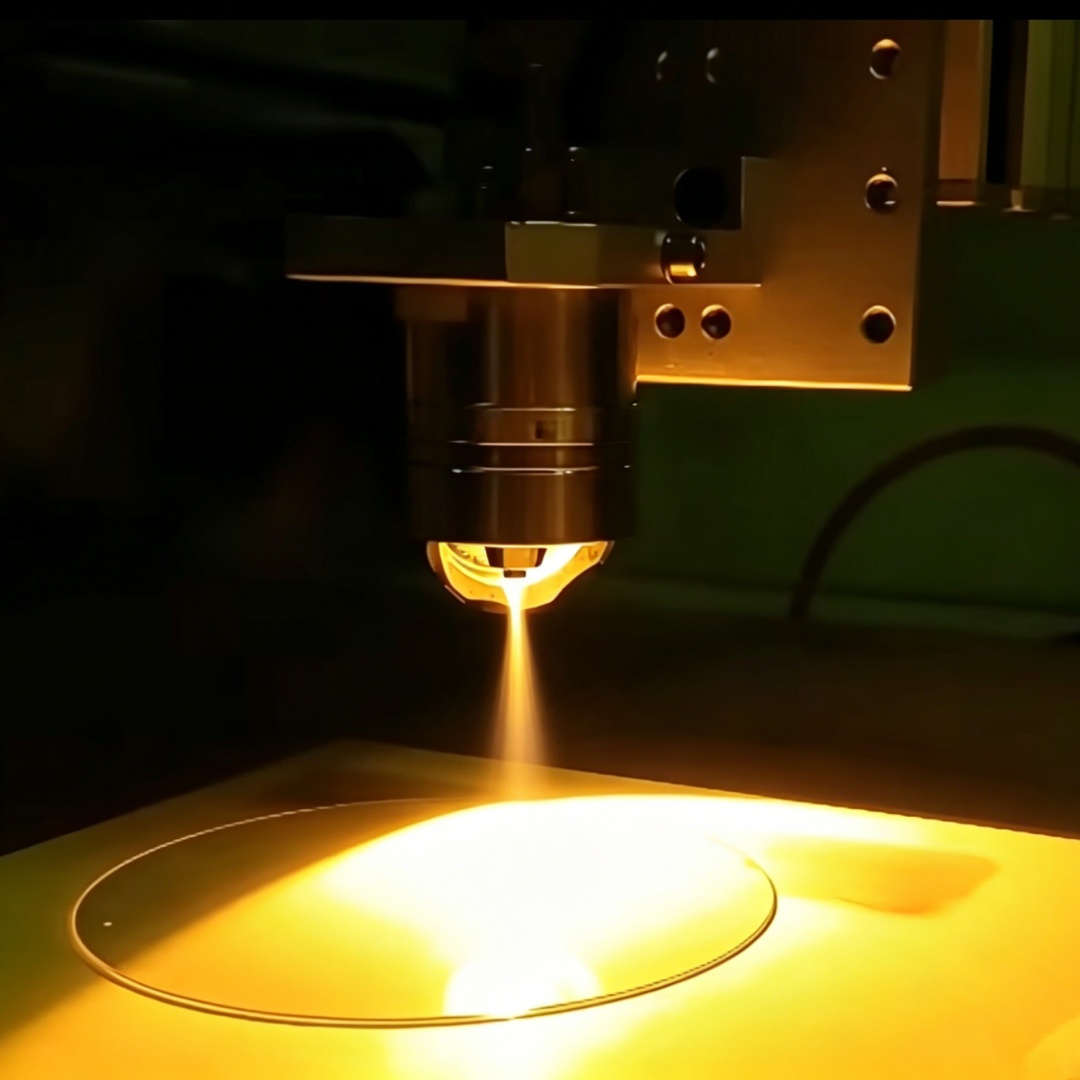

The CF03 Ultrasonic Spray Coating System is a compact, benchtop coater compatible with spin-coating units, delivering thinner, more uniform, and highly controllable thin-film coatings.

Key Features

· Integrated systems: ultrasonic spray, carrier gas, heated stage, vacuum adsorption, exhaust, and laser alignment.

· Compatible with full-range ultrasonic nozzles.

· Ideal for small to medium-area thin-film preparation and spray pyrolysis applications.

· Widely used in precision coating industries.

Primary Applications

Industry	Application Examples
Fuel Cells	Proton exchange membrane coating
Solar Energy	Thin-film solar cells
Nanomaterials	Nano-modified material spraying
Glass	Glass coatings
Electronics	Semiconductor layers
Biomedical	Medical device coatings
Textiles/Nonwovens	Functional fabric coatings

---

Advantages

✔ R&D and small-batch production compatible
✔ Compact benchtop design (easy to relocate)
✔ High material utilization (up to 95%)
✔ Uniform & stable coatings (±5% thickness variation)
✔ Effective coating area: 150mm × 150mm

---

Technical Specifications

Performance Characteristics

· Ultra-thin films (as low as tens of nanometers)

· Precise flow control (spraying at ultra-low rates)

· High thickness accuracy

· >95% liquid utilization rate

· Clog-resistant nozzles

· Lab-to-production scalability

· Repeatable, reliable results

Basic Parameters

Parameter	Details
Dimensions	730 (L) × 570 (W) × 950 (H) mm
Coating Area*	150 × 150 mm (*customizable)
Power Supply	120V/220V ±10%, 50–60Hz
Nozzle Options	Multiple ultrasonic nozzles supported
Control Interface	7" HMI
Additional Modules	Heated stage & vacuum plate
Certifications	CE, FDA

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
