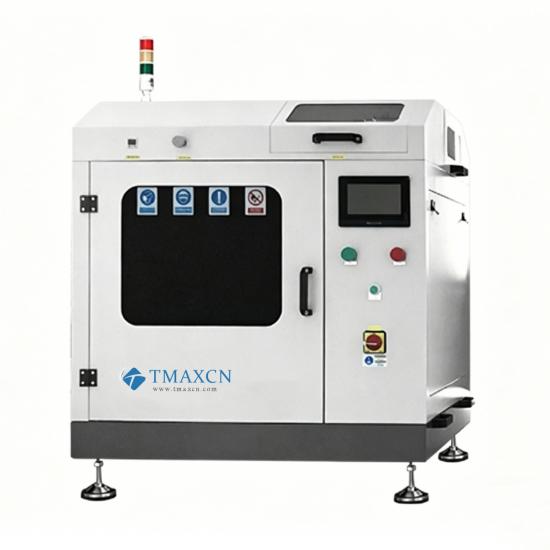

Ultrasonic Atomization Spray Coating Machine Equipment



We specialize in customized solutions tailored to cutting-edge industries, including:

· Nanotechnology

· Fuel cells

· Semiconductor coatings

· Medical coatings

· Spray pyrolysis

We provide comprehensive functional coating solutions and long-term technical support to ensure stable mass production. Our services include:

· Custom R&D for specialized instrument coatings

· OEM coating services for diverse applications

---

A wide-spraying machine integrating advanced atomization and control technologies for uniform, ultra-thin, and highly controllable thin-film coatings.

Key Features:

· Multi-system integration: ultrasonic, carrier gas, heating stage, vacuum adsorption, exhaust

· Compatible with full-range ultrasonic nozzles

· Ideal for small-to-medium area coating and spray pyrolysis

· Widely used in precision coating preparation

Applications:

Industry	Use Cases
Electronics	Lithography wafer, photoresist
New Energy	Fuel cell PEM, thin-film solar, perovskite
Biomedical	Medical device coatings
Glass	Optical/functional coatings
Textiles/Nonwoven	Functional fabric treatments
Nanotechnology	Nano-material deposition

---

Advantages

· R&D and small-batch production compatible

· Compact benchtop design (easy to relocate)

· 95% material utilization rate

· High coating uniformity (±5% variation)

· Effective spraying area: 300mm × 400mm

---

Features & Specifications

Features

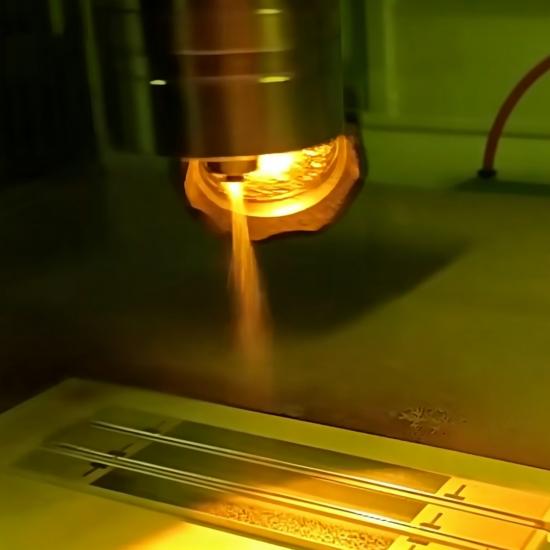

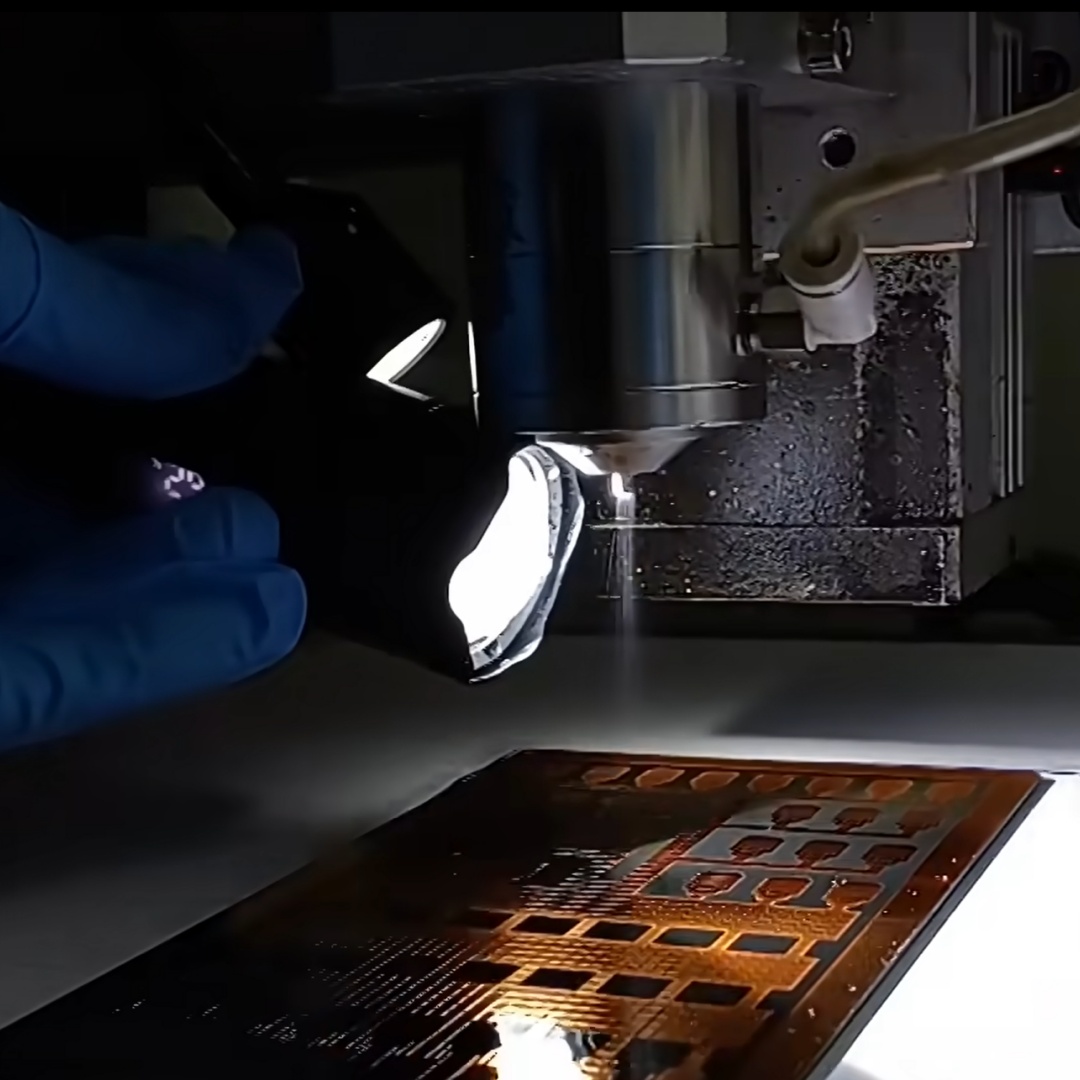

· Uniform & efficient spraying (film thickness down to tens of nanometers)

· Precise flow control (operates at ultra-low flow rates)

· High thickness control accuracy

· >95% liquid utilization

· Clog-resistant spray head

· Portable benchtop design

· Suitable for both R&D and production

· Highly repeatable results

Technical Parameters

Category	Specification
Dimensions	1500mm (L) × 950mm (W) × 900mm (H)
Spray Area*	200mm × 200mm (customizable)
Power Supply	120V/220V, ±10%, 50-60Hz
Nozzle Options	Multiple ultrasonic nozzles available
Control Interface	7-inch HMI
Additional Modules	Heating/vacuum plate
Certifications	CE, FDA

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
