Precision Ultrasonic Spray Coating Unit for Drug-Eluting Stent Coating Buy



Key Features:

· Precision Ultrasonic Nozzle: Micro-sized ultrasonic spray head for accurate drug dosage control.

· Flawless Coating: Uniform drug layers free from adhesion, pinholes, or orange peel defects.

· Exceptional Consistency: Outstanding uniformity, stability, and repeatability.

· Multi-Stent Compatibility: Suitable for coronary, intracranial, sinus, and other stent specifications.

· High Chemical Resistance: Compatible with diverse organic solvents.

---

Product Overview

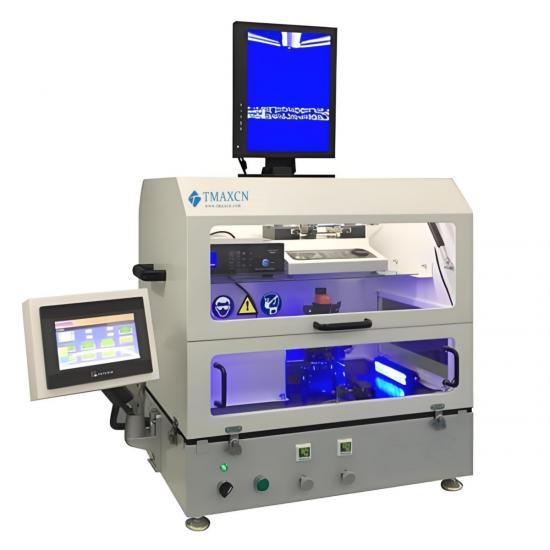

The Drug-Eluting Stent Coating Spray System is a specialized ultrasonic spraying machine designed for applying drug coatings to stents. Equipped with TMAX’s micro-fine or focused ultrasonic nozzles, it utilizes ultrasonic atomization technology to prepare homogeneous drug coatings on stent surfaces. The system ensures precise drug loading, eliminates coating defects (adhesion, pinholes, etc.), and supports coatings for coronary, peripheral, sinus, and intracranial stents.

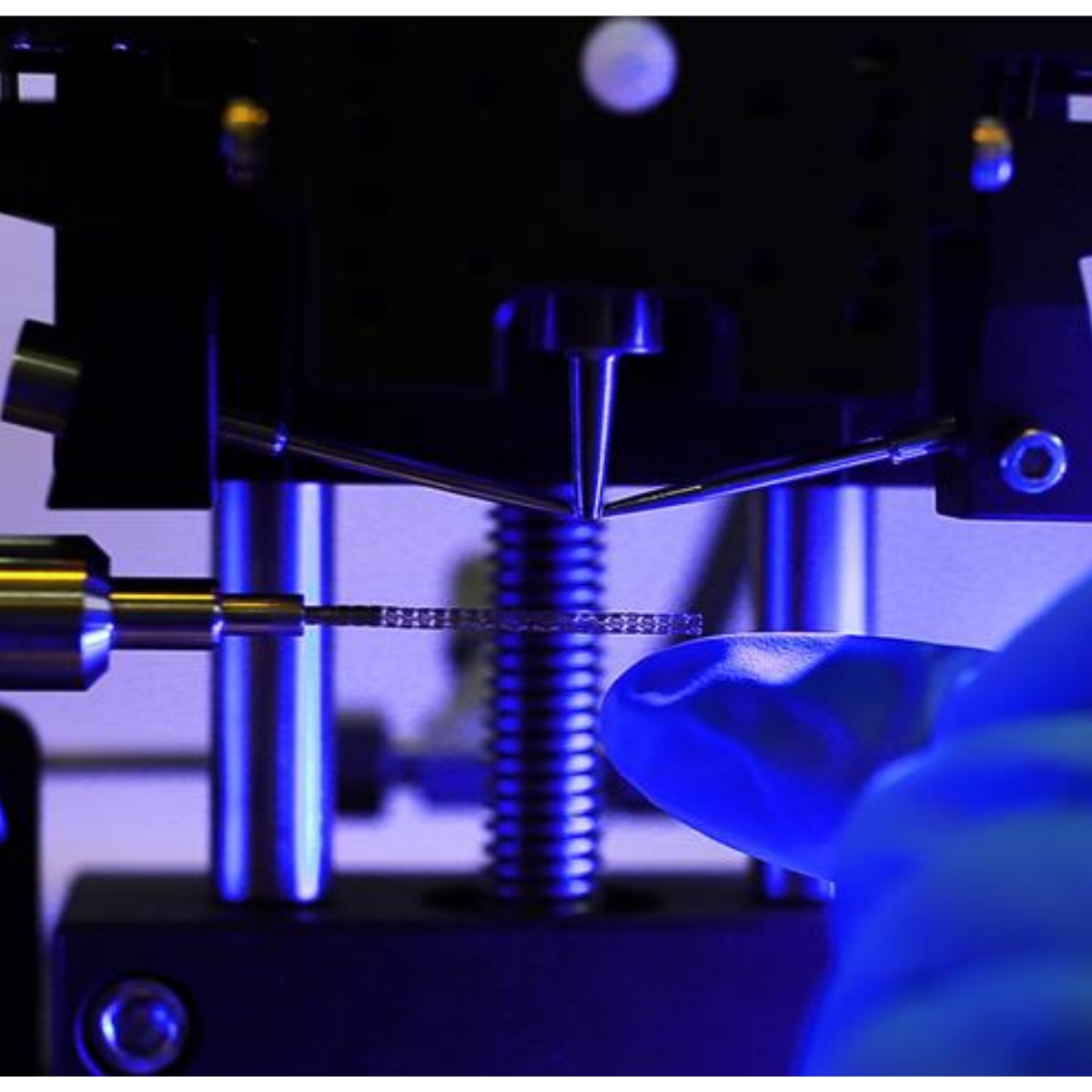

TMAX’s spray system employs a proprietary micro-nozzle design with optimized fluid/gas delivery, enabling ultra-precise spray patterns (1–10 mm width) and minimal flow rates. It uniformly coats stents with drug solutions (e.g., rapamycin, paclitaxel in organic solvents), forming dense, defect-free layers. Integrated stent fixtures allow rapid loading/unloading, while an onboard drying module accelerates processing.

---

Technical Specifications

System Integration

· Modular Design: Combines ultrasonic nozzle, motion control, liquid delivery, and stent handling.

Coating Performance

· Uniformity: Defect-free coatings (no pinholes/adhesion).

· Drug Loading Accuracy: High consistency (±1%).

· Material Efficiency: 85%+ utilization rate (4× higher than airbrush spraying).

· Solvent/Polymer Compatibility:

o Solvents: Acetone, THF, DMAC, chloroform, toluene.

o Polymers: PU, PC, silicone, polystyrene.

Nozzle Technology

· TMAX Micro/Focused Nozzles: Stable operation at ultralow flow rates (0.005–2 mL/min).

· Self-Cleaning Design: Prevents clogging.

· Drying Aid: Micro-gas jet for in-process coating drying.

Control & Automation

· Fully Digital Ultrasonic Controller: Multi-core DSP with 0.01W power precision.

· High-Precision Syringe Pump: Supports multi-size injectors.

· Touchscreen HMI: User-friendly interface with color display.

Safety & Compliance

· Ventilation: Interfaces with lab/exhaust systems or built-in fan.

· Stent Fixtures: Quick-release designs for diameters <12 mm, lengths <100 mm.

---

Advantages vs. Conventional Methods

· 4–5× higher coating transfer efficiency than pneumatic spraying.

· Adaptability: Custom fixtures for R&D or production scaling.

For process optimization and industry-standard compliance, trust TMAX’s ultrasonic stent coating expertise.
