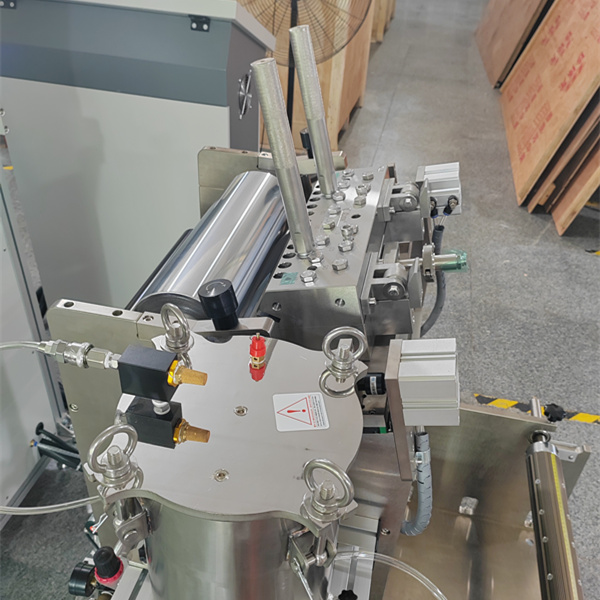

Slot Die Coating Machine with Feeding System

A slot die is used for precise coating or extrusion of thin films and uniform layers, commonly applied in industries such as flexible electronics, solar panels, batteries, and coatings for packaging materials.

Specification Parameters for coating machine
Control system		independently developed
Coating width		200-750mm customised
Roller width		200-800mm customised
Coating head		slot die
Slor die		Slot die
Coating thickness		0.01-5MM (uniformity ± 3%)
Coating speed		0.1-3m/min advised (adjustable according to the drying condition of the glue)
Heating oven		2-20 meters
Temperture		Heated air circulation,upto 200C
Drying passage roller		304 stainless steel
Drying channel material		304 stainless steel (box)
Drying channel lifting		cylinder lifting
Feeding		Peristaltic pump + feeding system
Cutting device		Optional
Tension control		adjustable tension
Deviation correction device		fully automatic deviation correction for receiving materials
Drying blower		adjustable speed
Inflation shaft		3-inch inflation shaft
Winding diameter		500mm
Equipment power supply		380V
Certification		CE
