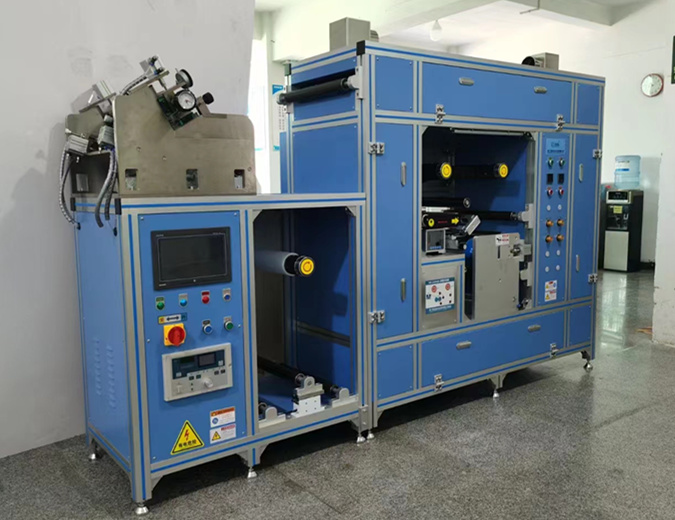

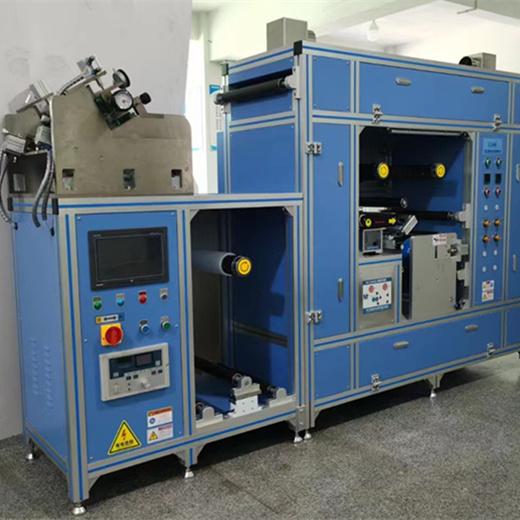

Graphene Coating Machine Graphene Heat Conduction Film Coater

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-GD
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Graphene Coating Machine Graphene Heat Conduction Film Coater

It is applicable to the precise coating production of high thermal conductivity graphene heat conduction film and graphene heat conduction film in the fields of smart phones, tablet computers, smart VR, planetary circuits, electrothermal painting, floor heating film, etc. The coating machine has better price and higher production efficiency

Specification

Control system	Independent research and development system
Uniform coating	＜5%
Coating width	Effective coating width100-380mm
Coating thickness	0.005-3MM（wet film）
Coating typoe	Doctor blade
Tension control	Automatic tension adjustment (according to the membrane tension required to adjust)
Oven length	10meters(Back to type)
Dryingoven temp	Normal temperature ~120 degrees (can be segmented constant temperature)
Heating method	Electrical heating
Oven wind force	Adjustable
Deviation correcting device	Automatic rectifying of winding
Exhaust air system	Suction is adjustable
Production speed	1-20 m/min
Equipment air pressure	6 KG/cm2
Power supply	380V 50Hz
Equipment power	10KW
Dimension	270013001800mm
