Product name

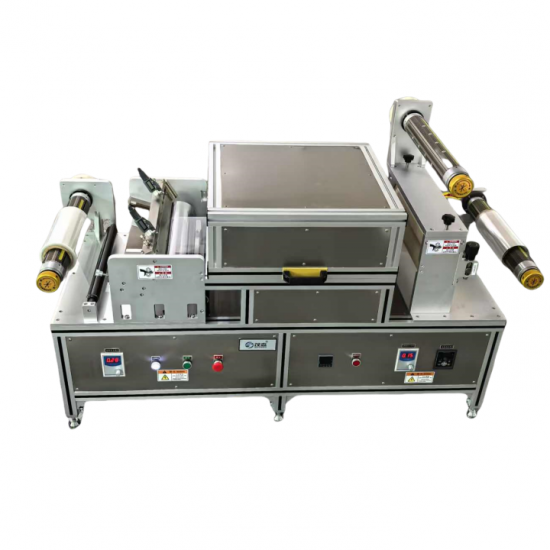

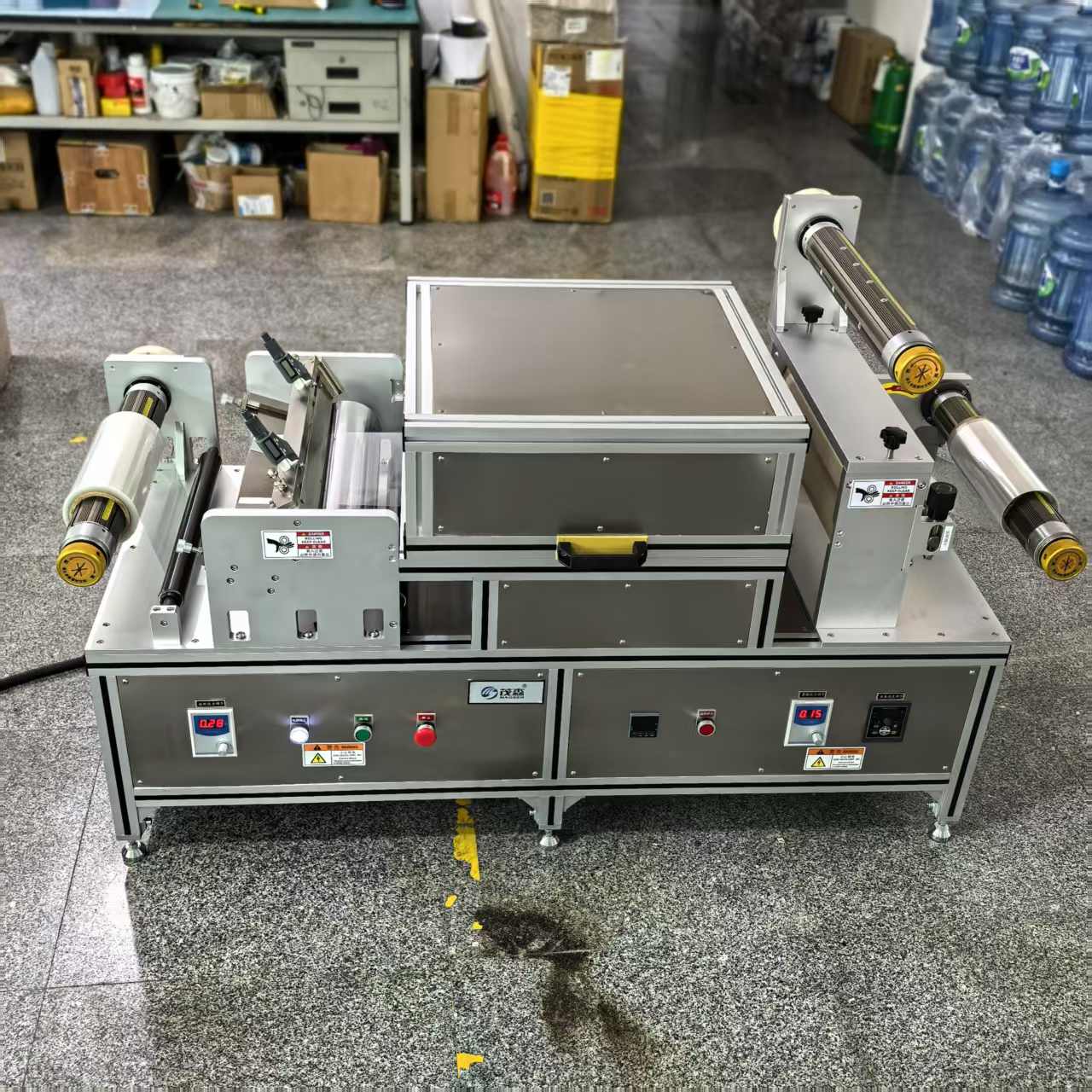

MS-ZN380 roll to roll coating machine

Applications

Mobile phone case, automotive supplies, special film, various films

Substrates

PET

Control system

Boson company independent research and development

Coating width

380mm

Coating methods

The Doctor blade coatinge

Coating thickness

0.01-1 mm

Coating accuracy

Uniformity ±3%

Thickness adjustment

Digital micrometers

Coating speed

0.5-3 m/min (speed adjustment according to glue drying condition)

Drying tunnel length

1 meter

Solution feeding methods

Manual gluing

Rewind and unwind diameter

300mm

Rewind and unwind airshafts

3 inch airshaft (tile type)

UV curing length

0

Post lamination

Rubber roller coating

Tension control system

Adjustable

Power supply

AC220V

Power

6KW
