Custom Doctor Blade & Wire Rod Coating Machine for Lab Use

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-LAB-DB300
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

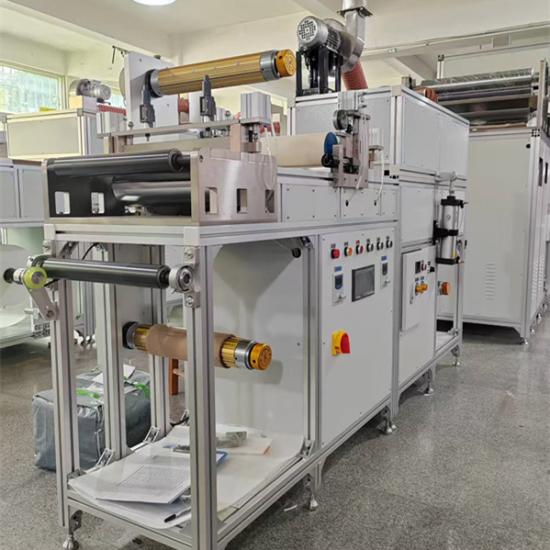

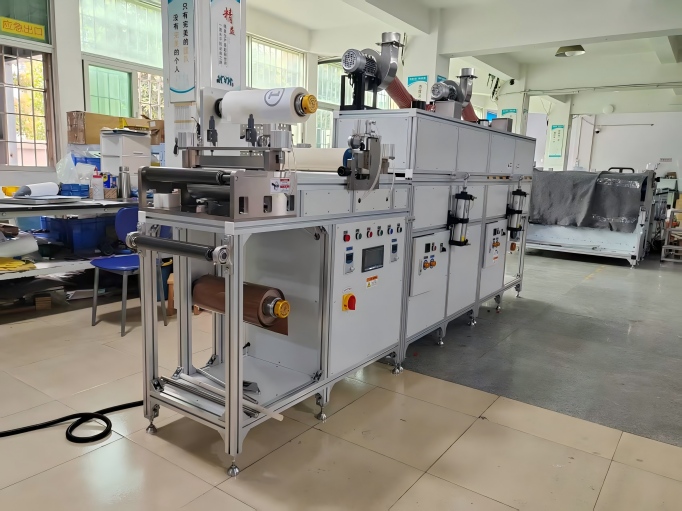

Custom Doctor Blade & Wire Rod Coating Machine for Lab Use

This is an aprecision laboratory-grade doctor blade & rod bar coating machine designed forsmall-scale research, testing, and customized production. It is ideal forcoating high-viscosity materials onto PET, film, paper, fabric, and other substrates. With acustomizable design, this machine can be tailored to specific coating requirements, making it an excellent choice fornew material development, battery electrode coating, adhesive coating, and specialty film applications.

Technical Specifications

Control system		Delta PLC Control
Coating width		Effective coating width max. 300mm, max. substrate width 350mm
Coating method		Doctor blade & wire rod
Coating thickness		0.005-2mm
Oven length		2m, can be customized
Oven temperature		normal temperature ~180C
Heating control		Thermocouple sensor (touch screen temperature controller)
Heating method		Electric heating tube
Drying channel fan		Speed adjustable
Blower fan		speed adjustable
Coating speed		0.1-1 meters/min adjustable
Tension control		Adjustable Tension Release (1~10N)
Rewind and Unwind Shaft		3-inch Rewind Shaft (Wafer Type)
Power supply		220V, 50/60Hz
Power Consumption		5000W(total power is subject to physical)
Air source access		0.55Mpa~0.7Mpa (Air compressor provided by customer)
