Item No.:
TMAX-LAB-UV100Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

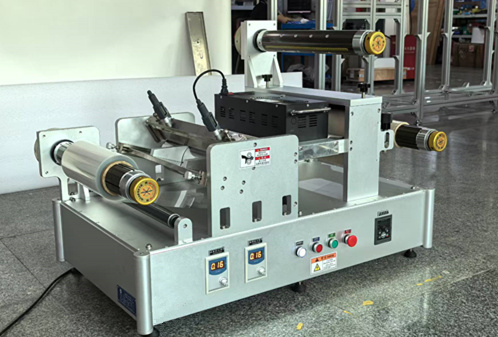

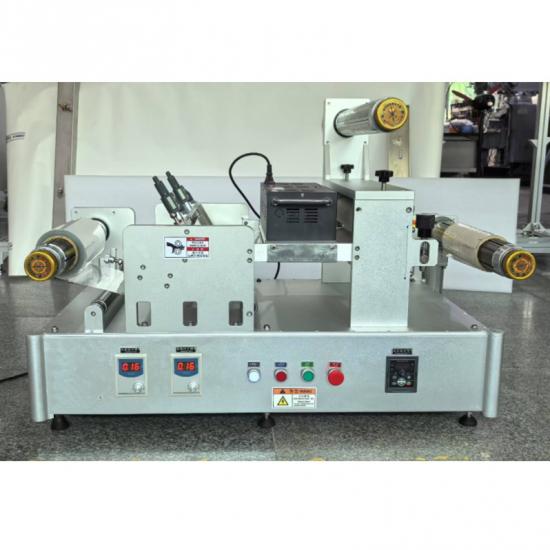

Two years limited warranty with lifetime technical supportLab Compact UV Laminating & Coating Machine
This is a compact, precision laboratory-grade UV lamination machine designed forPET films, optical films, and electronic materials. This machine is ideal forR&D applications and small-scale production, ensuring high-precision lamination and fast UV curing with a bubble-free, uniform adhesive layer.
Technical Specifications
|
Parameter |
LAB-UV100 |
|
Max Lamination Width |
100mm (Customizable: 150mm/200mm) |
|
Applicable Substrates |
PET, PC, PI, Glass, PMMA |
|
Lamination Method |
Roller-Based Lamination |
|
UV Light Source |
LED-UV 365nm/395nm (Adjustable) |
|
UV Power |
2000mW/cm² |
|
Lamination Pressure |
1-10kg (Adjustable) |
|
Speed Control |
0.1-5m/min (Adjustable) |
|
Alignment System |
Manual /Auto |
|
Power Supply |
AC 220V, 50Hz |
|
Dimensions |
600mm × 400mm × 450mm |
|
Weight |
40kg-80KG |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
