Roll-to-Roll Coating Machine with Comma Bar / Doctor Blade / Micro Gravure / Slot-Die, UV or Hot Air Drying

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ZN
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

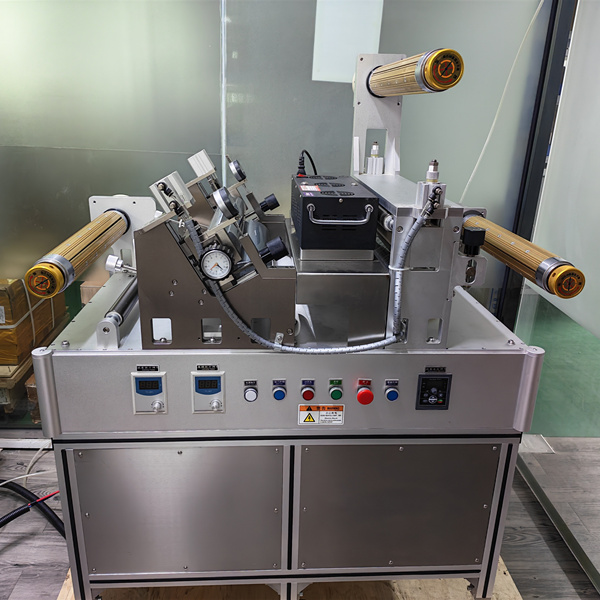

Roll-to-Roll Coating Machine with Comma Bar / Doctor Blade / Micro Gravure / Slot-Die, UV or Hot Air Drying

This is a compact, precision laboratory-grade UV lamination machine designed forPET films, optical films, and electronic materials. This machine is ideal forR&D applications and small-scale production, ensuring high-precision lamination and fast UV curing with a bubble-free, uniform adhesive layer.

Technical Specifications

Item	Specification
Product Name	Automatic Coating Machine
Applications	Phone case, automotive products, special films, various films.
Substrates	PET or other films
Control System	Self-developed
Coating Width	10- 200mm or customised
Coating Methods	Comma Bar / Doctor Blade / Micro Gravure / Slot-Die
Coating Thickness	0.01–1mm
Coating Accuracy	Uniformity ±3%
Coating Thickness Measurement	Digital Micrometers
Oven length	1m, hot air or UV drying
Coating Speed	0.5–3 m/min（Adjustable according to glue drying condition）
Solution Feeding Methods	Manual glue supply
Rewind and Unwind Diameter	300mm
Rewind and Unwind Airshafts	3-inch Airshaft
Post Lamination	Rubber Roller
Tension Control System	Adjustable
Power Source	AC220V Input Voltage: AC220V
Power Capacity	6KW
