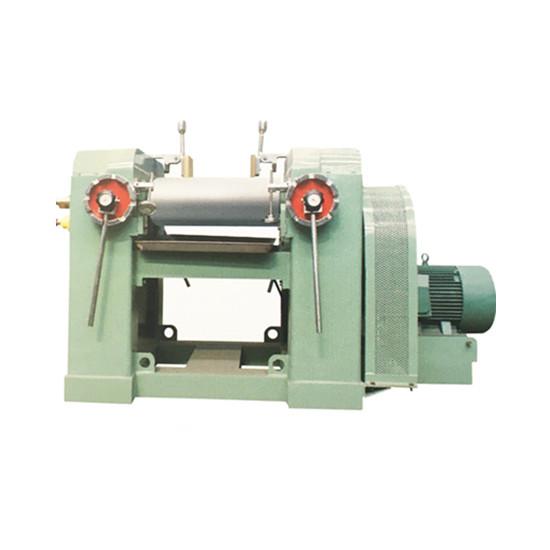

Roller Working Length 300mm 380mm/675mm 514mm and 810mm,Three Roller Mill Machine With A Speed Reducer Gear Box

Roller mill is welded by high quality steel plate. The transmission gear adapts oil-immersed type and the operative handwheel is transmitted by gear. It features beautiful appearance, convenient to operate, long life and so on. Particularly it is suitable for grinding the material with high dispersive viscosity and fine size. JRS series Three Roller Mill machine widely used in pencil leads, colorant, which need very strong force. The machine with a speed reducer gear box.

Applications

SQ series roller mill is widely used in grinding & dispersing soap, oil, cosmetics, lubrication grease, CSA new material, Carbon fiber, etc.

Applications

It is widely used in all kinds of oil, electronic paste, plant gum , soap, etc. And YSH three roller mill specialized in grinding and dispersing powder type material like peanut, guar gum, etc.

Configuration table
Optional○
Material of body frame	Stainless steel	○
	Carbon steel	○
Adopting gap adjusting		○
Topple over device		○
Chamber		○
Inverter control		○



Model			SQ6/JRS150	SQ9/JRS260	SQ12	SQ16/JRS405SGX16
Roller diameter(mm)			150	230/260	305	400
Length of roller working surface(mm)			300	380/675	514	810
Distance from discharge hole to ground(mm)			660	720	680	730
Output(L/h)			25-30	30-60	60-90	100-140
Roll rotating speed	Low speed roll		34	13.4	148	11.5
	Medium speed roll		78	39.4	43.9	21
	HIgh speed roll		181	116.3	129.8	91.9
Main motor power(KW)			3	15	30	55
Overall dimension (mm)		L	920	2060	2400	3430
		W	880	1420	1680	2010
		H	1150	1200	1250	1500
Machine weight(kg)			500	2500	4800	6000
Packing dimension(mm)		L	1000	2200	2500	3550
		W	1000	1550	1800	2150
		H	1400	1500	1600	1900

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
