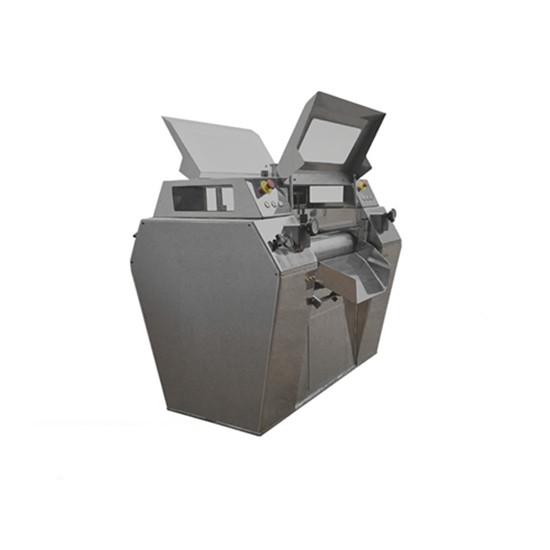

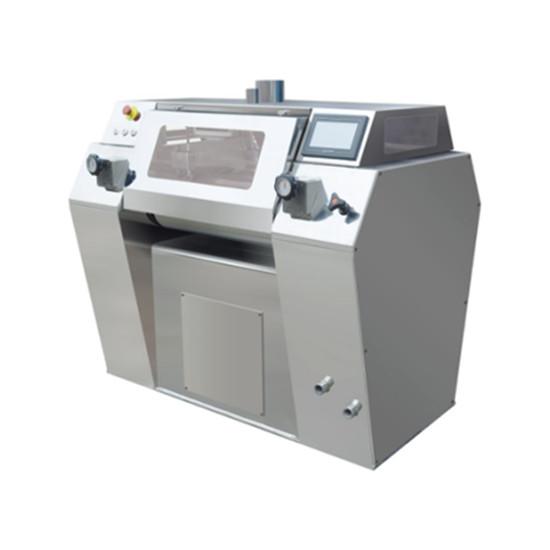

Roller Working Length 300mm and 600mm, Hydraulic Three Roller Mill Machine Suitable for Various Viscosity Material with Optional Alloy and SiC Roller Material

Hydraulic three roller mill is a new product which suit for various viscosity material. The cooling effect of this series of machine is triple or more than traditional hydraulic three roller mill, it can make the speed of operation higher, and the maximum speed can reach 800 rpm or more, so that this machine can meet the high shear forces, as well as demand for high productivity. The roller is driven by hydraulic system, and the gap adjustment device with high precision can be customized. This machine adopts PLC man-machine interface control system, which can remotely connect with the ERP.

Character

●Taiwan hydraulic pressure station, the United States Parker hydraulic joints, Germany BENTELER precision seamless tube ensure the stability of the system.
●Germany Siemens PLC system makes the product more accurately to be controlled(optional).

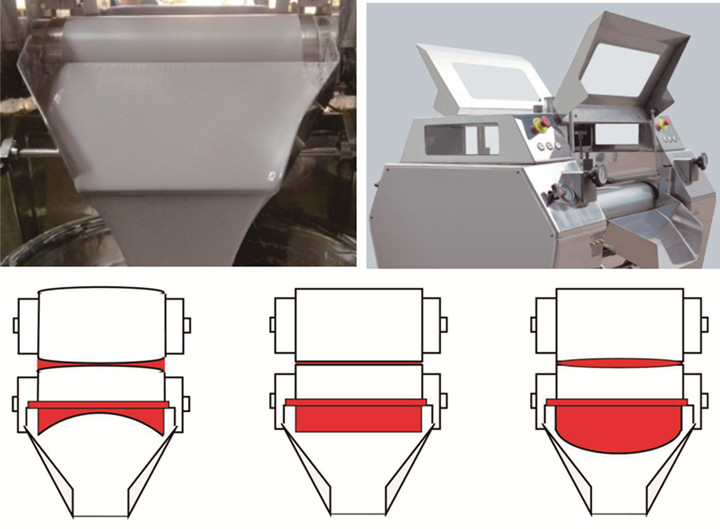

●The rollers pressure and rollers gap can be set and controlled, so as to realize the stable and consistent quality.
●Adopting manual gap adjusting makes the machine produce without human influence in low pressure.
●No metal contamination type and super- cooling type; (option).
●Multiple safety monitoring and protection systems.

Application

It is widely used in CNT, High value metal paste, New Ceramic material, Electronics conductive paste, cosmetic, pigment, solar pasty, etc.

Configuration table
○Optional
Explosion-proof		○
Material of roller	SiC	○
	Alloy	○
Material of bofy frame	Stainless steel	○
	Carbon steel	○
Chamber		○
Inverter control		○
Level sensor		○
Hydraulic		○
Control-panel		○
PLC		○

Model	DYS200-300	DYS200-600
Roller diameter	200mm	200mm
Roller working lenth	300mm	600mm
Speed ratio	1:3:9	1:3:9
Output（L/h）	100~150	200~300
Main motor power	7.5KW/11KW	18.5KW/22KW
Weight of machine	1400Kg	1800Kg
Overall dimension	1050*1300*1000	1350*1300*1000

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
