Roller Working Length 650mm 800mm and 1300mm,Hydraulic Three Roller Mill Controlled By Hydraulic Pressure From Double-Impeller Pump

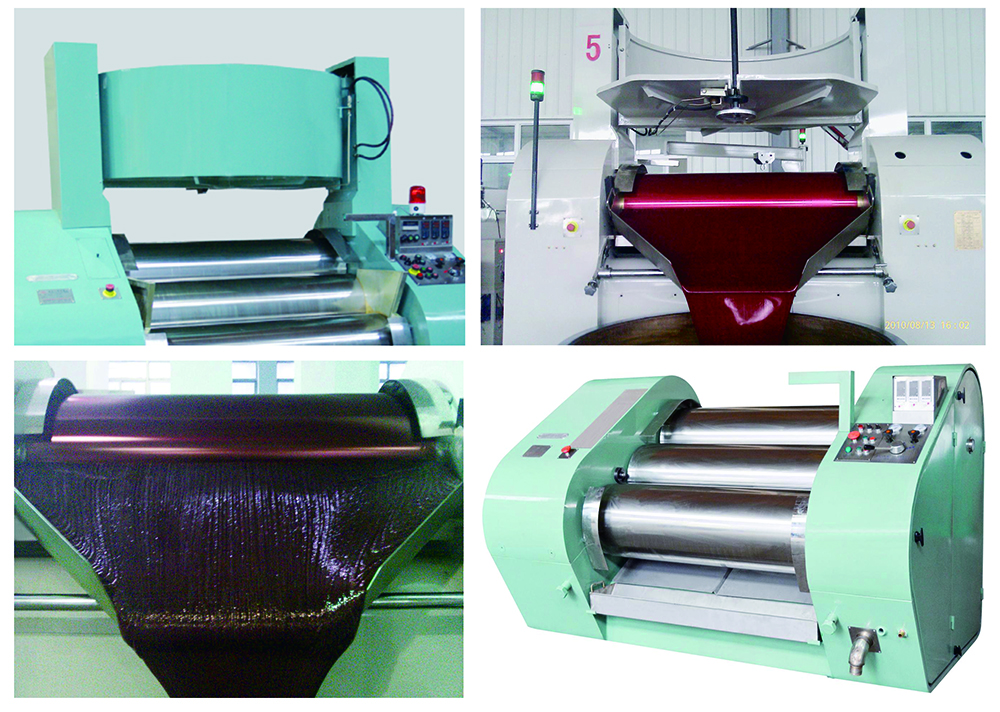

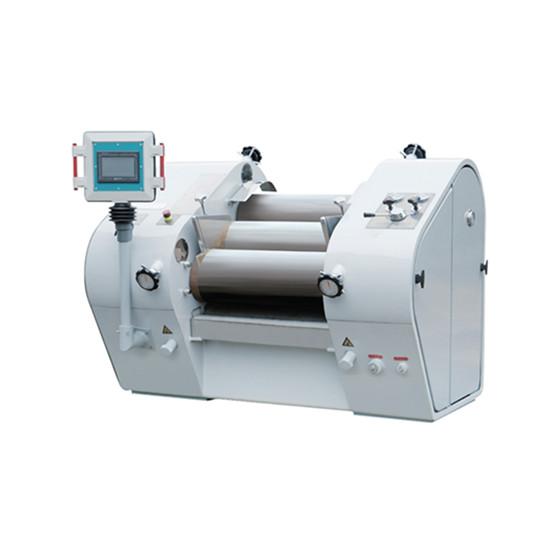

Three roller mill controlled by hydraulic pressure from double-impeller pump. The basic work of machine such as feeding, discharging and size of material is controlled by hydraulic pressure. It features high automatization content, convenient to operate and safe in use. Because the hydraulic system adapts plate type structure, its arrangement is more reasonable. The roller is cast by special alloy, its strength is high and its surface has high hardness and wear resistance property. It is an ideal equipment to grind high quality paste material.

Application

It is widely used in all kinds of ink, grease, coating, pigment, dye, e-paste, guar gum, soap, etc.

Configuration table
Optional○
Explosion-proof	○
Material of body frame: Stainless steel or Carbon steel	○
Topple over device	○
Chamber	○
Inverter control	○
Level sensor	○
Hydraulic system	○
Control-panel	○
PLC	○



Model		YS260	YS400-800	YS400-1300
Roller diameter(mm)		260	400	400
Length of roller working surface(mm)		650	800	1300
Distance from discharge hole to ground(mm)		650	690	690
Output(L/h)		180-250	250-350	360-450
Roll rotating speed	Low speed roll	58	32	32
	Medium speed roll	153	128	128
	HIgh speed roll	408	400-450	400-450
Main motor power(KW)		22	45	55
Total pressure of hydraulic system(Mpa)		6.3	6.3	6.3*2
Pressure power(KW)		1.5	1.5	1.5*25
Machine weight(kg)		2000	4800	5200
Overall dimension(mm)		1558*1280*1200	2150*1750*2295	2650*1750*2295
Packing dimension(mm)		1800*1400*1700	2300*1900*1900	2800*1900*1900

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
