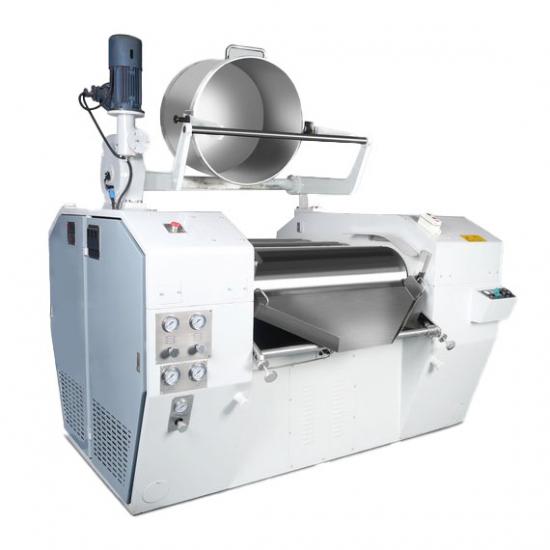

Hydraulic Three Roll Mill with Pressing Mixing and Disengagement Function

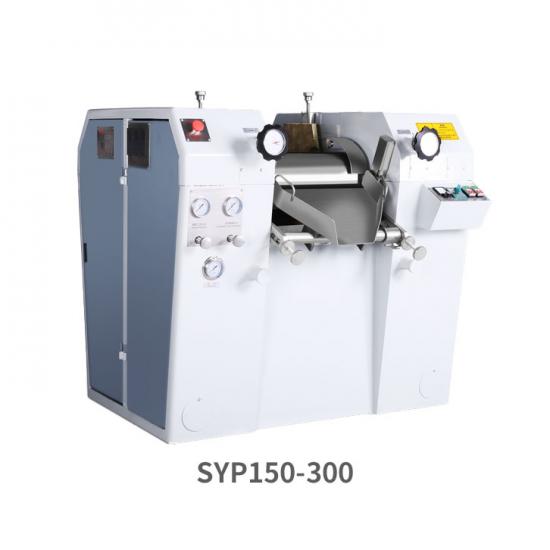

SYP – a three-roll mill designed for universal applications and for meeting the most stringent quality standards.

Convenient, easy operation, handy design and easy to clean. Versatile machine for low to high viscosity masses, e.g. all types of printing inks, artists’ colours, industrial and decorative paints, toners, coating masses, etc. Due to the wide range of options and models, SYP  also meets the demands of applications in the electronics, cosmetics and pharmaceutical industries.

Each of the three rolls is equipped with an individually adjustable high-efficiency cooling system. Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions. The cooling water supply is automatically stopped when the machine is not running. This prevents undesirable cooling of the rolls and unnecessary water consumption. The hydro-dynamic roll pressing system guarantees high throughput and permanently stable, reproducible pressures in the roll gap.

Three roll operating positions can be selected:

• Pressing: Working position for fine grinding and dispersion

• Mixing: Intake gap is pressed for intermixing the material

• Disengagement: Rolls are disengaged for cleaning

An adjustment mechanism allows a defined roll gap to be set. This permits the processing of short, dilute and low- viscosity products.

Roller dia	150mm	200mm	260mm	400mm	400mm
Roller length	300mm	600mm	650mm	800mm	1000mm
Distance height	750mm	650mm	680mm	700mm	700mm
Slow roll speed	44rpm	52rpm	49rpm	31rpm	31rpm
Middle roll speed	103rpm	144rpm	140rpm	122rpm	122rpm
Fast roll speed	0-240rpm	0-400rpm	0-400rpm	0-400rpm	0-400rpm
Main motor power	5.5kw	11-15kw	18.5-22kw	30kw	37kw
Hydraulic pressure	6.3Mpa	6.3Mpa	6.3Mpa	6.3Mpa	6.3Mpa
Pressure power	1.1kw	1.5kw	1.5kw	1.5kw	1.5kw
Weight	950kg	1500kg	2400kg	5000kg	5500kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
