Roller Working Length 300mm 650mm 900mm and 1000mm, Flat Hydraulic Three Roller Mill With PLC Automatic Control Used In All Kinds Of Oil, Electronic Paste, Plant Gum , Soap, Etc

Roller Working Length 300mm 650mm 900mm and 1000mm, Flat Hydraulic Three Roller Mill With PLC Automatic Control Used In All Kinds Of Oil, Electronic Paste, Plant Gum , Soap, Etc

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna



  • Item No.:

    TMAX-YSP/YSH
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Roller Working Length 300mm 650mm 900mm and 1000mm, Flat Hydraulic Three Roller Mill With PLC Automatic Control Used In All Kinds Of Oil, Electronic Paste, Plant Gum , Soap, Etc

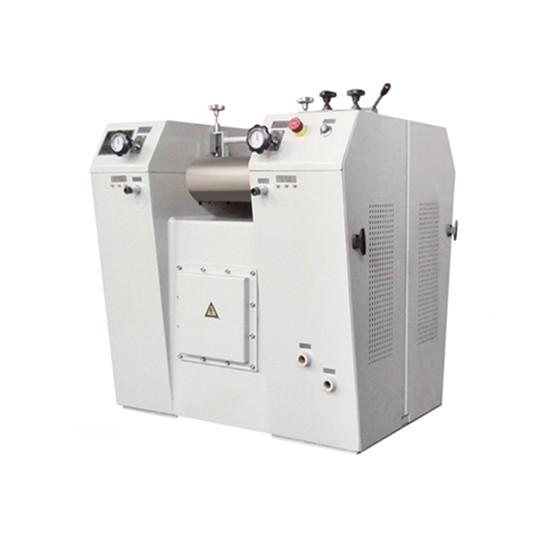

Flat hydraulic three roller mill series use special grade alloy steel, which could reach unbelievable hardness. This series will use proportional valve adjusting the roller pressure&gap, thus the whole machine will be more stable and have longer life. This machine could be PLC automatic control.

ROLLER MACHINE

Applications

It is widely used in all kinds of oil, electronic paste, plant gum , soap, etc. And YSH three roller mill specialized in grinding and dispersing powder type material like peanut, guar gum, etc.

Application

It is widely used in all kinds of ink, grease, coating, pigment, dye, e-paste, guar gum, soap, etc.

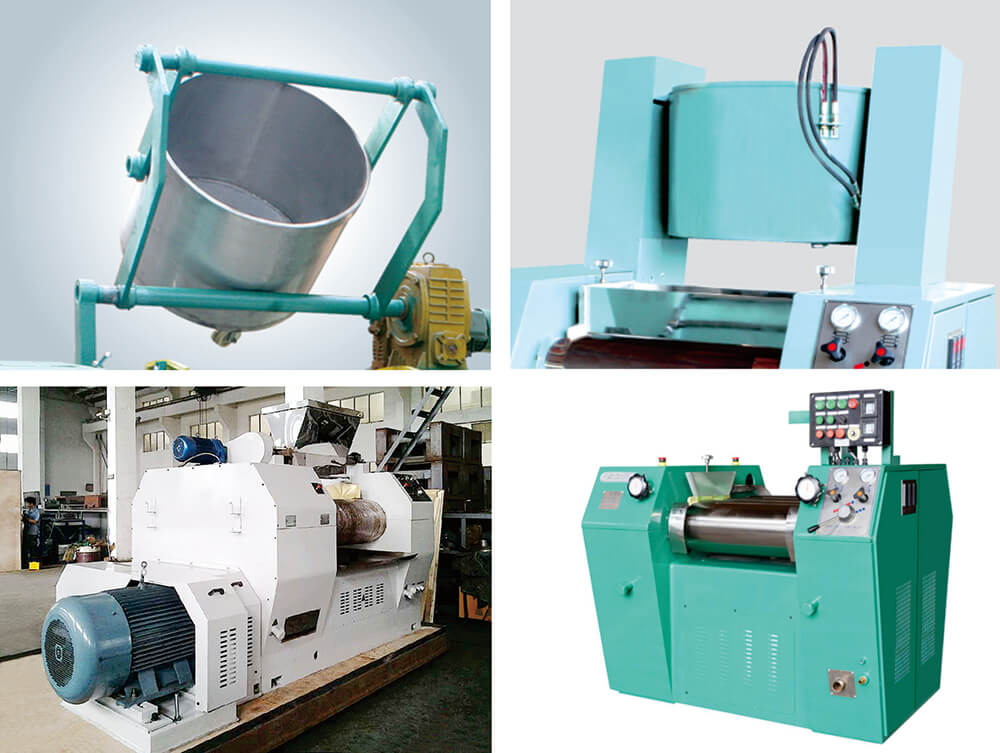

Configuration table

Optional○

Explosion-proof

Material of body frame: Stainless steel or Carbon steel



Topple over device

Chamber

Inverter control

Level sensor

Hydraulic system

Control-panel

PLC




Model

YSP150

YSP260

YSP400-800

YSP/YSH400-1000

Roller diameter(mm)

150

260

315

400

Length of roller working surface(mm)

300

650

900

1000

Distance from discharge hole to ground(mm)

620

650

690

690

Output(L/h)

25-40

180-250

250-350

300-400

Roll rotating speed

Low speed roll

26

58

51

32



Medium speed roll

61

153

154

128



HIgh speed roll

141

408

460

400-450

Main motor power(KW)

3

22

30-37

55

Total pressure of hydraulic system(Mpa)

6.3

6.3

6.3

6.3*2

Pressure power(KW)

0.375

1.5

1.5

1.5*2

Machine weight(kg)

520

2000

3200

5200

Overall dimension(mm)

950*950*1080

1558*1280*1200

2050*1360*1500

2650*1750*2295

Packing dimension(mm)

1100*1100*1400

1800*1400*1700

2200*1600*1800

2800*1900*1900





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
