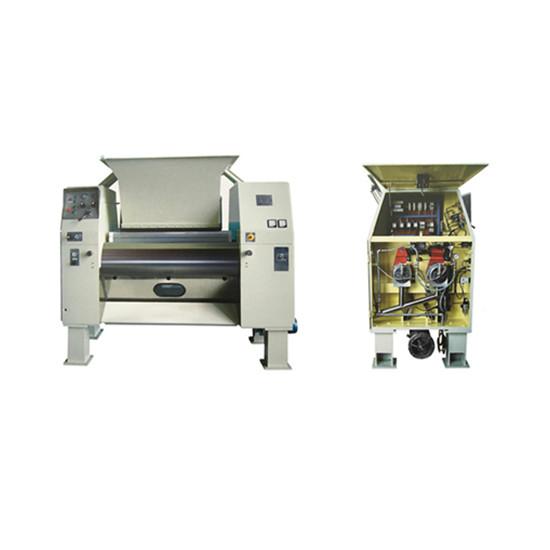

Roller Working Length 900mm 1300mm and 1800mm, Hydraulic Two Roller Mill Machine with 400 Roller Diameter Widely Used For Food Stuff, Chocolate, Soap And Pharmaceutical, Etc

Overview

TYS series two roller mill is designed specially for dispersing rough material and adjusting material for next procedure. It is widely used for dispersing and pre-dispersing all kinds off materials such as food stuff, chocolate, soap and pharmaceutical, etc.

Model		TYS900	TYS1300	TYS1800
Roller diameter(mm)		400	400	400
Length of roller working surface(mm)		900	1300	1800
Roller rotating speed	High speed roll	258	258	258
	Low speed roll	118	118	118
Motor power(kw)		45	55	75
Output 80-150um(kg/h)		2500-4500	3500-6500	5500-8500
Total pressure of hydraulic system(Mpa)		6.3	6.3	6.3
Power of hydraulic pressure(KW)		1.5	1.5	1.5
Machine weight(kg)		4500	5000	5800
Overall dimension L*W*H(mm)		2478*2780*3218	2878*2850*3218	3378*2880*3218

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
