Pouch Cell Vacuum Final Sealer

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-FS200
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

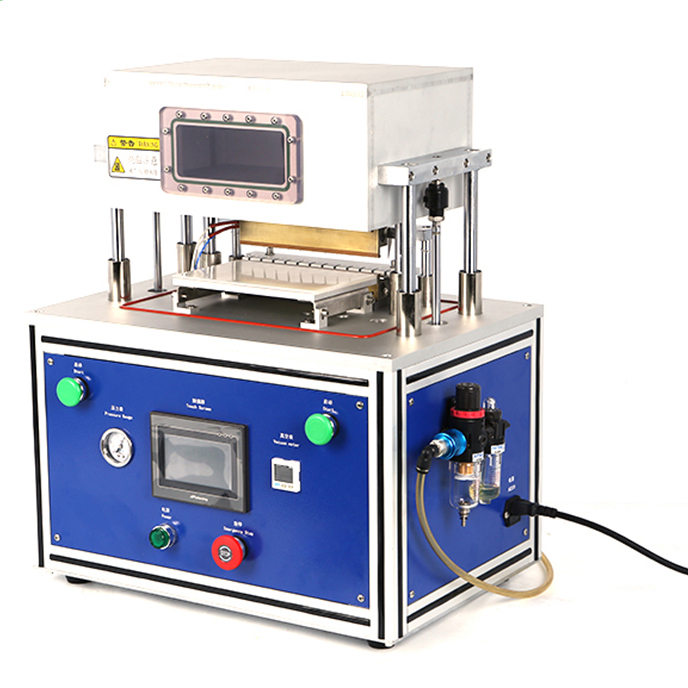

Pouch Cell Vacuum Final Sealer


Main feature

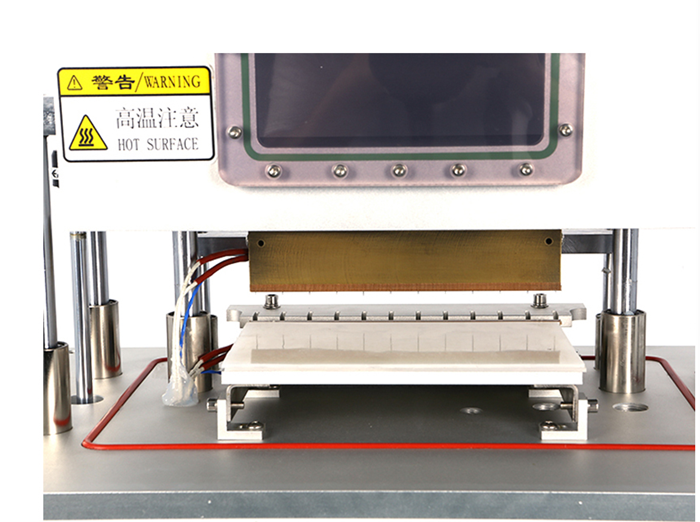

*The sealing head is made of copper materials,have a good heating transfer effect and power saving,can improve the work effective and more energy saving than other similar product;
*The pressure of the upper and lower sealing head can adjust by pressure regulator to achieve difference process parameter requirement;
*The upper and lower sealing head driven by cylinder and the direction controlled by two linear guide sheath.Flexible move ,accurate guide guarantee the parallelism requirement of the product after sealing.;
*With pierce function;
*Chamber lid driven by cylinder,and guide by linear sheath,flexible up and down activities,which can promise the requirement of the sealing performance;
*Can suit for difference model battery, and easy to adjust;
*Easy to operate,beauty appearance, small size and weight;


Technical parameter
*Chamber made by Aluminum alloy,anti corrosion,and firm structure;
*Vacuum degree≤-96Kpa(Buyer-provided vacuum pump);
*Sealing head temperature:room temperature~250℃,adjustable;
*Temperature control precision:±1.5℃;
*Heating sealing pressure:0~7Kg/cm2 adjustable;
*Heating sealing time:0~99S adjustable;
*Sealing width:5±0.4mm(according the requirement of the customer);
*Sealing length:340mm
*Maximum sealing size:310mm;
*Sealing thickness range:60~300um
*Sealing thickness precision.(mm):Package thickness difference at any two points<15um.
*Air consumption:About 0.2L compress air/time。
*Air compressor working speed:≥180 times/h
*Power:Using 500w heating tube, the power consumption when heating is about 0.6KW。
*Power:220V/50Hz;
*Compress air source:0.5~0.7Mpa;
*Dimension:L600mm*W650mm*L800mm;

*Maximum battery size:



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
