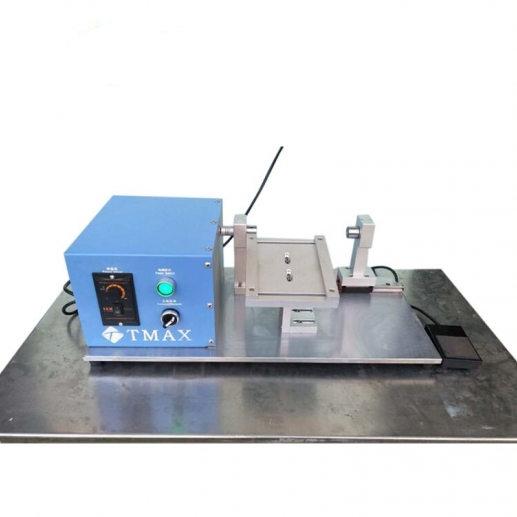

Semi-Automatic Winding Machine for Pouch Cell

Semi-Automatic Winding Machine for Pouch Cell

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164




  • Item No.:

    TMAX-JR135-P
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

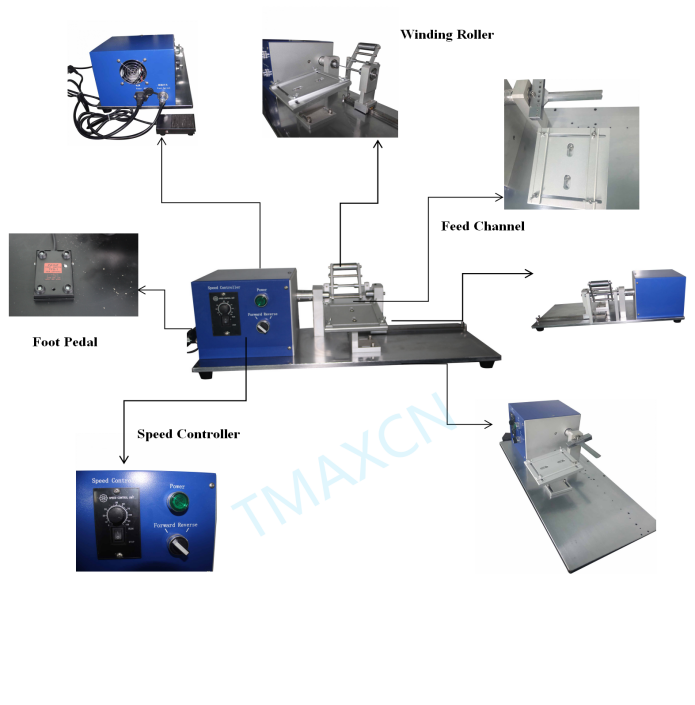

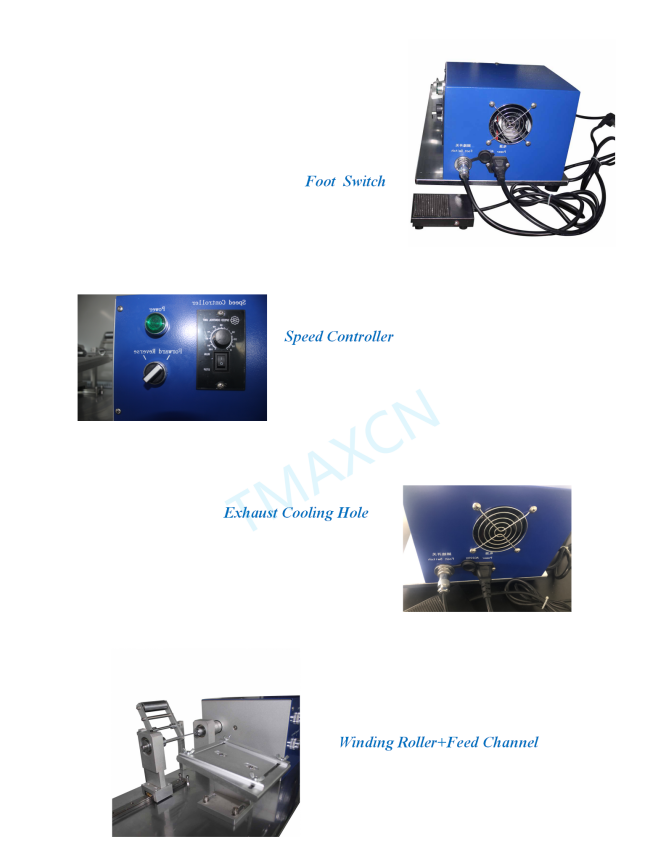

Semi-Automatic Winding Machine for Pouch Cell


Model

Semi-Automatic Winding Machine  TMAX-JR135-P

Working Voltage

AC110V/220V, 50/60HZ

Power

40W

Warranty

One Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

Winding blade

The winding width depends on the width of the winding blade

Customized square winding blade according to battery model

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

(L*W*H)

360*310*280mm

Net weight

About 20kg (45 lbs)

Application Notes

This machine can be used for prismatic battery with square winding shaft,

and you can also choose the round winding shaft for cylinder cell core winding,

We will supply with the suitable winding accessories according to your battery model


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
