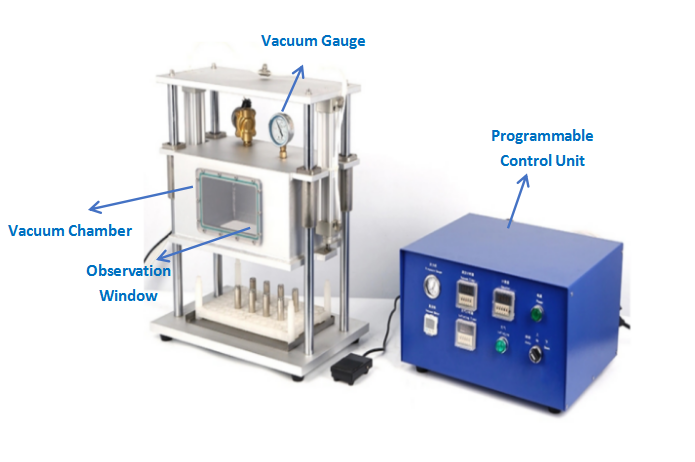

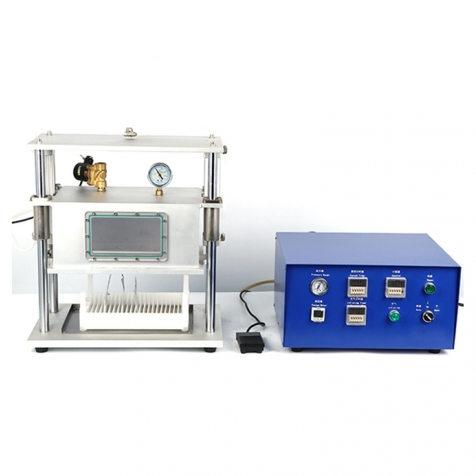

Li Ion Battery Vacuum Diffusion Chamber and Electrolyte Filling All-In-One Machine


Product introduction

Applicable to the injection and diffusion process of battery capacitors, after vacuuming and then filling and make diffusion. The electrolyte is more precision, absorption consistency, high reliability.


Main characteristics

* One machine includes injection and diffusion functions;

* High measurement accuracy and repeatability;

*Injecting liquid after vacuuming, high efficiency, accurate accuracy, convenient and reliable operation;

*Injection accuracy±0.5%, injection volume 0.2 ml ~ 200 ml;

*The entrance and exit are connected by chemical resistant hoses;

*Can be operated in a glove box or dry room;

*The appearance is exquisite and beautiful, and the performance is stable;

*PLC, touch screen operation, flexible parameters, high automation program;


Technical specifications


Model

TMAX-ZY65, suitable for lithium battery products, cylindrical or pouch cell

Function

Injection and Diffusion

Cylindrical range

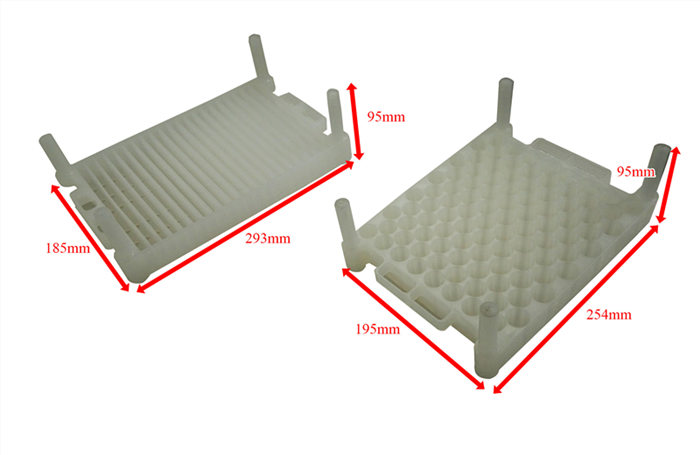

Φ60, H100mm or less, according to the 18650 calculation standard with 4 stations, 4 notes at a time

Warranty

One year limited warranty with lifetime support

Range of capacity

0.2ml~200ml

Core liquid injection

0.2g~200g

Injection accuracy

±0.5%

Exhalation velocity

6ml/s adjustable

In and out pipe

The liquid inlet pipe 6

Adjustable stroke

Maximum X-axis stroke 0~80mm (center)

Material

Manufacture of stainless Steel 304 and 316 corrosion-resistant material in key parts

External dimension

L400mm×W260mm×H500mm

Power supply

AC220V/50Hz/0.5KW

Weight

70kg


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
