Electrode Die Cutter For Pouch Cell Electrode Sheet


1.Speedy,efficiently

2.for current collector tabs
3.One stop serives,full solutions

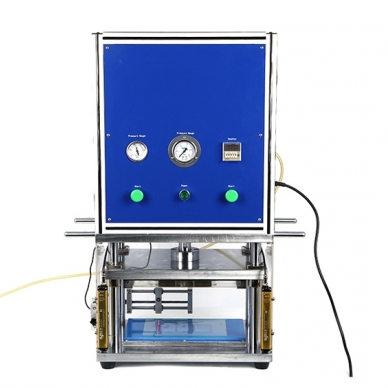

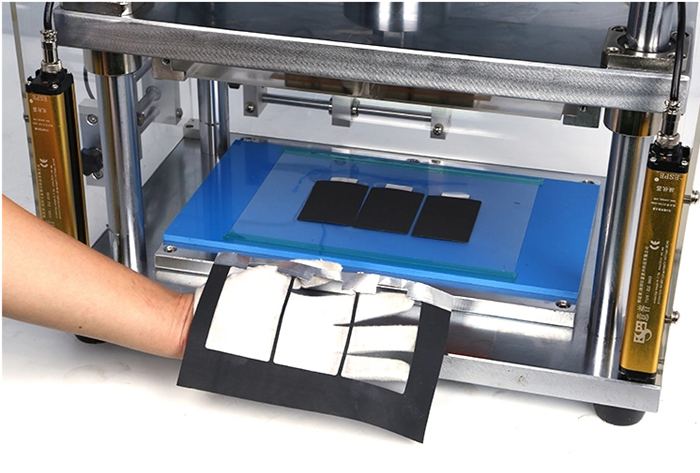

TMAX-MQ300 is a CE Certified semi-automatic electrode die cutter. It is a necessary tool in the production

line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.


Model

Battery Electrode Die Cutter Machine  TMAX-MQ300

Work voltage

AC110V/220V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Cutting Die

Customized according to customer's request

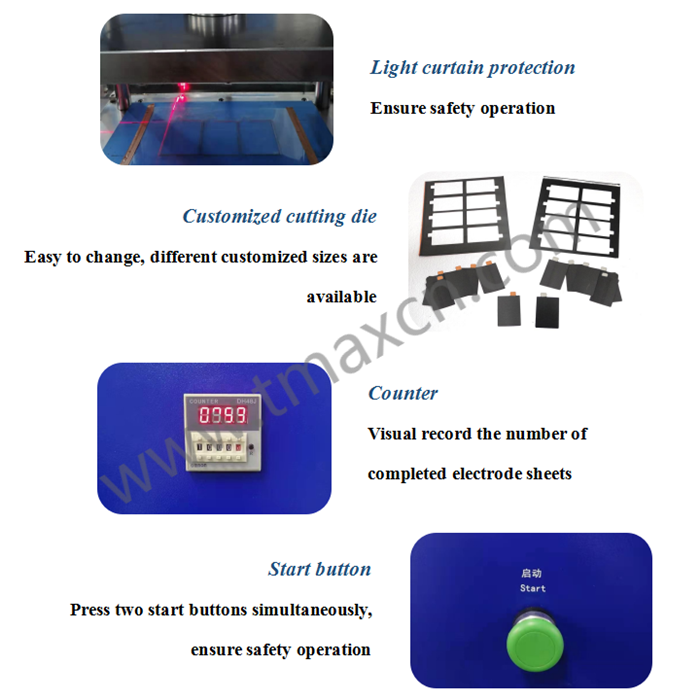

Safety Protection

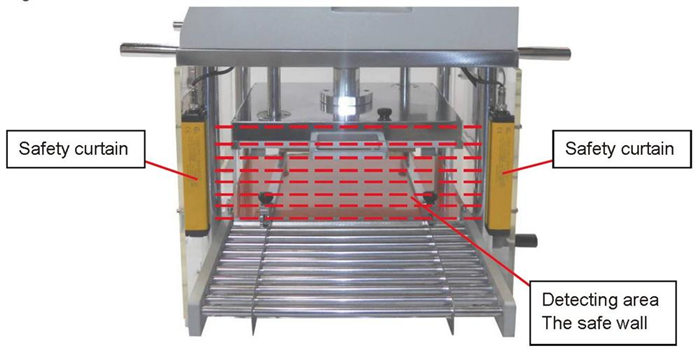

Built in Safety Curtain to protect against hand injuires during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

5 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Cutting stroke

250mm

Feeding

Manually

 Yield

800 - 2000 pieces of electrodes per hour

Air Pressure

0.5-0.8Mpa

Dimension

(L*W*H)

580*455* 900mm

Net Weight

120kg (265 lbs)

Shipping Dimensions

47*75*109cm

Recommendation

For the pouch cell assembly, we also recommend you the following items:

 forming machine          hot sealer      vacuum sealer

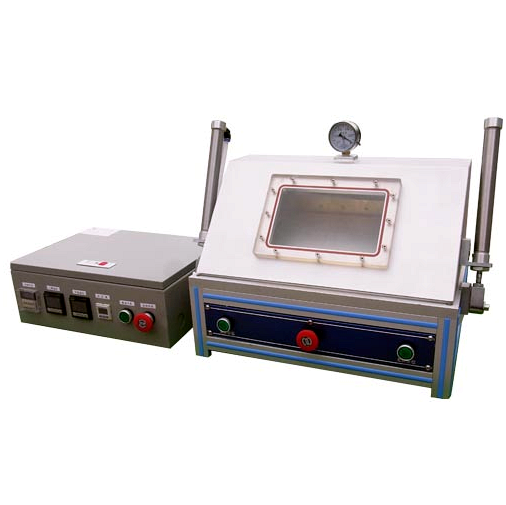

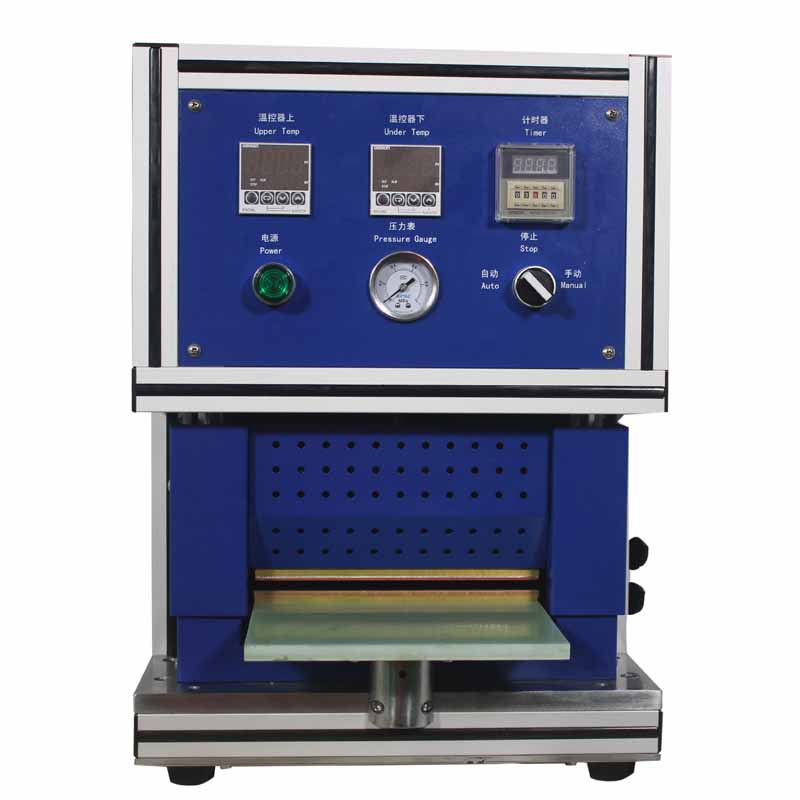

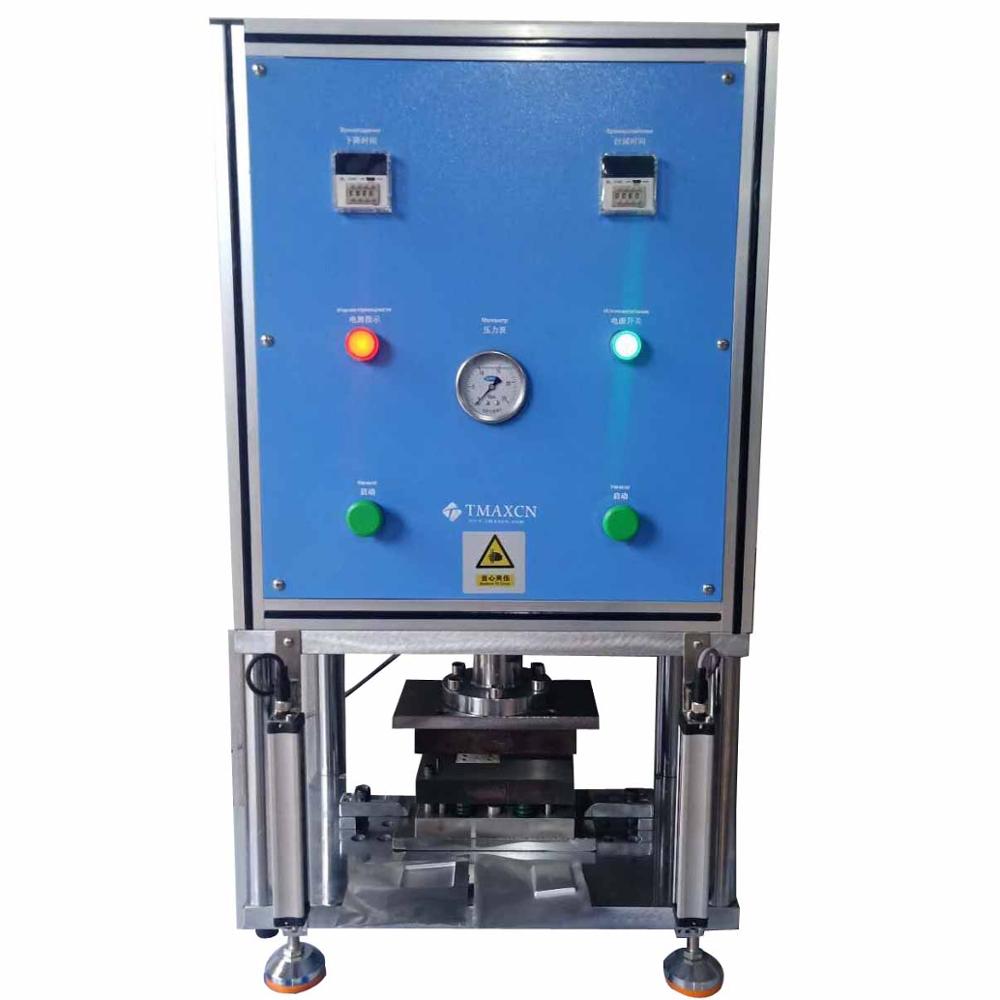

Forming machine             Hot sealer with tab          Vacuuming sealer

   ultrasonic welder       stacking machine      aluminum laminated film

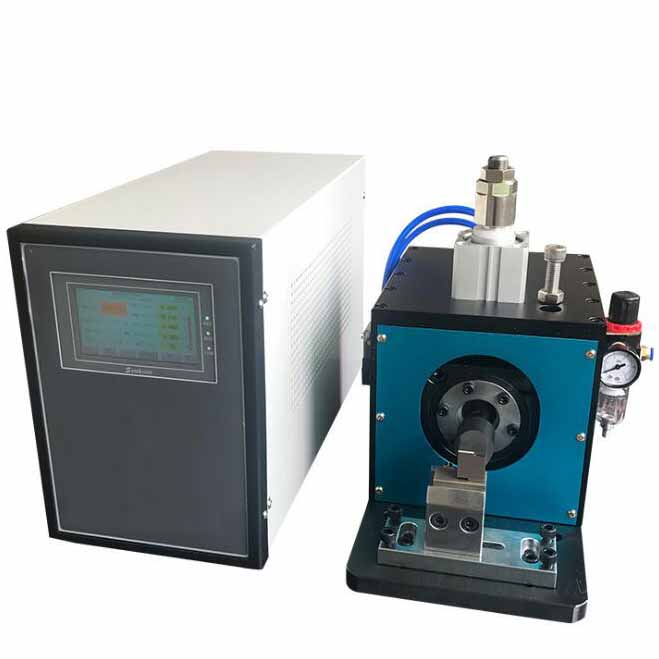

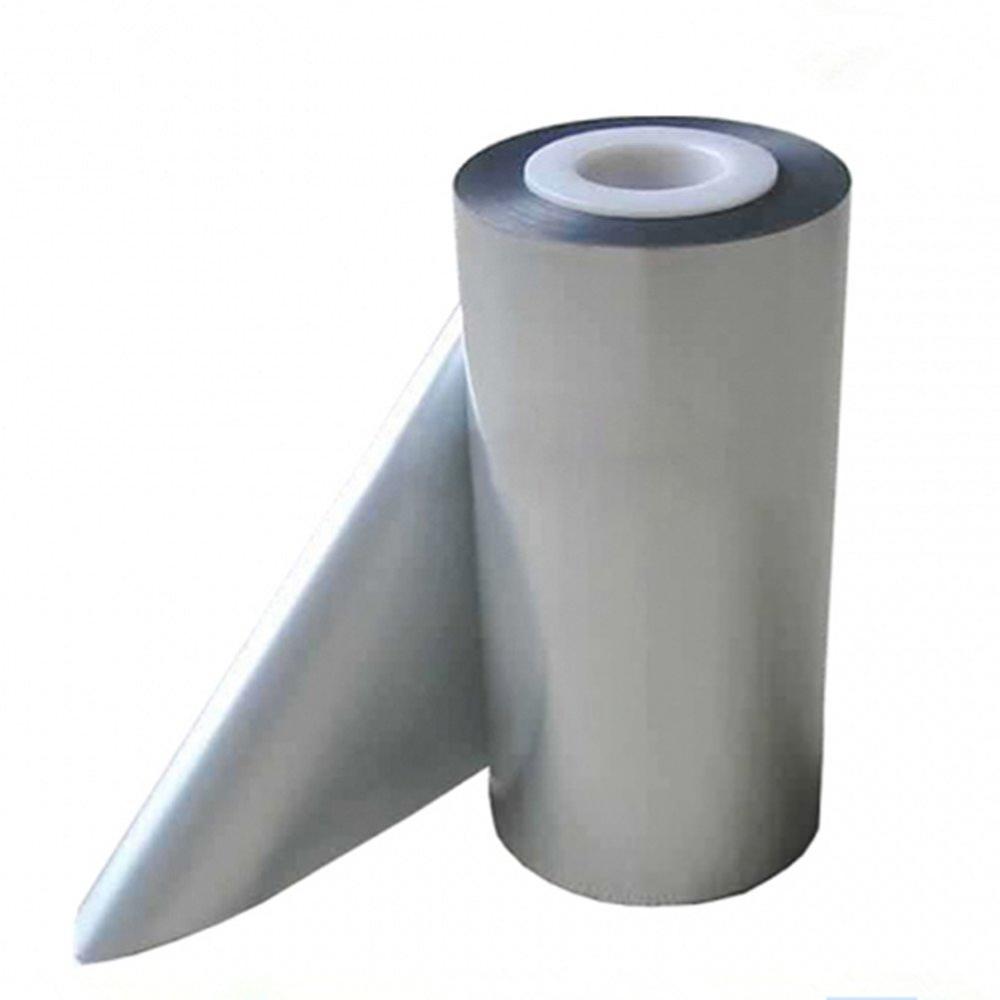

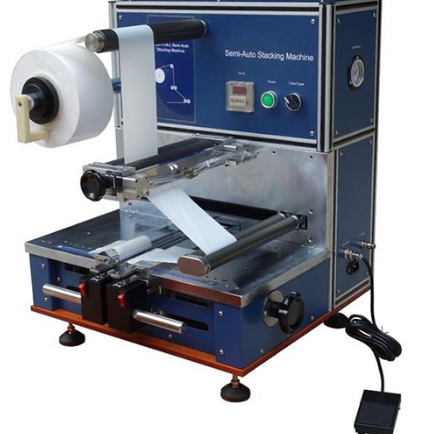

    Ultrasonic tab welder       Stacking machine   Aluminum Laminated Film







 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
