Battery Stacking Machine for Pouch Cell

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-M-DP-200
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

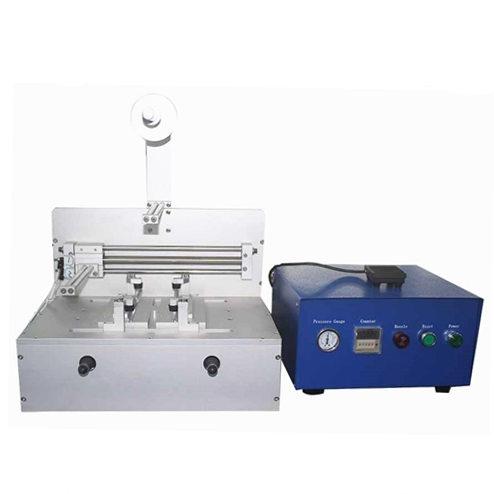

Battery Stacking Machine for Pouch Cell

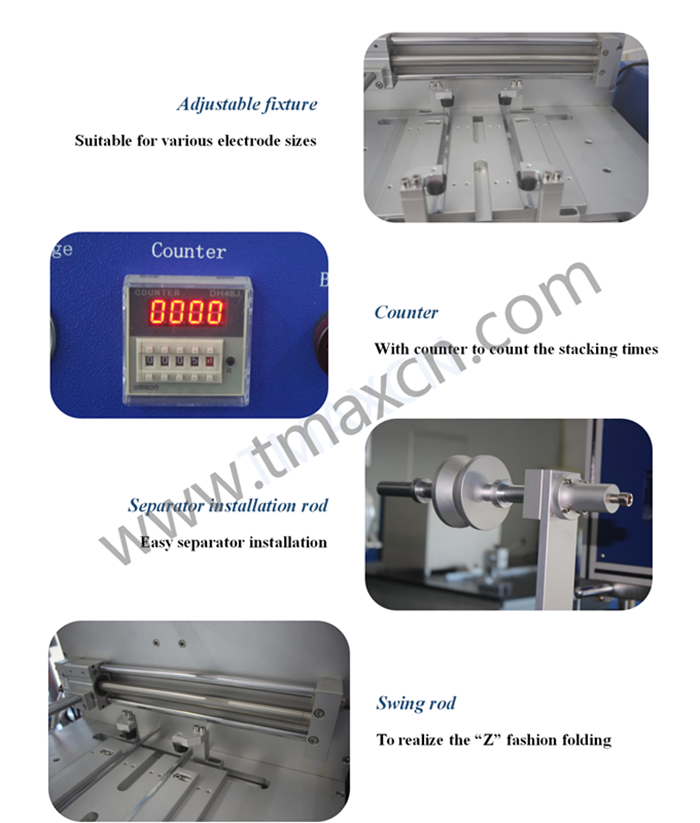

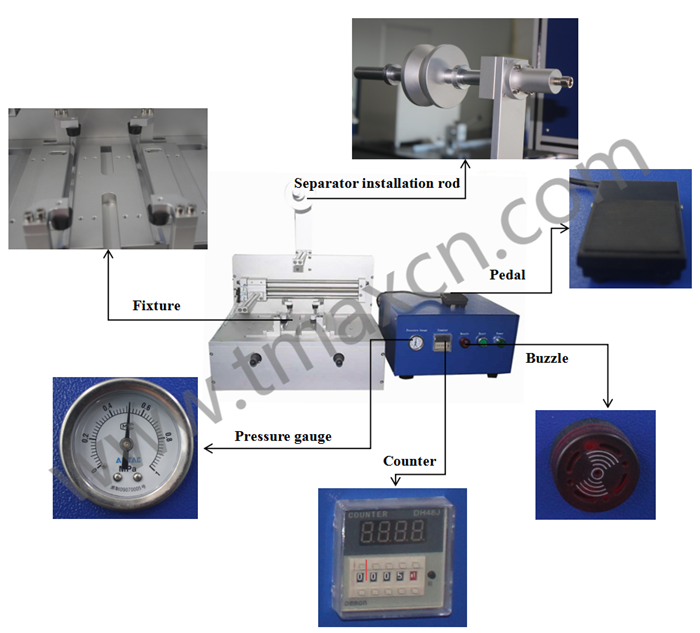

1 TMAX-M-DP-200Battery stacking machineis a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

2 Thebattery stacking machineis used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.

Model	Battery Stacking Machine TMAX-M-DP-200
Voltage supply	AC 110v-220V Customized by requirements, 50HZ±10%
Power	100W
Warranty	One Year limited warranty with lifetime support
Stacking Layer Length	L(0-200)mm, W(0-200)mm
Max separator feeding diameter	Φ250mm
Fixed travel distance	400mm
Travel cycle	1 - 9999 cycles
Air supply	0.25-0.55MPa (40 - 80 psi)
Machine dimension(LWH)	650400700mm
Controller dimension(LWH)	200300380mm
Weight	40kg
Package size for stacking machine	660740430mm
Package size for control box	470330520mm
