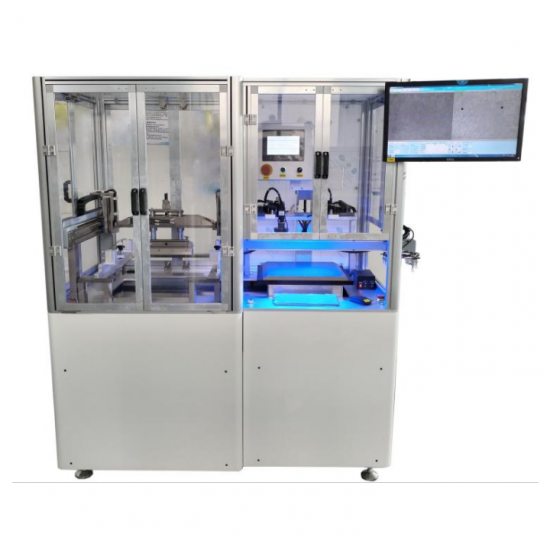

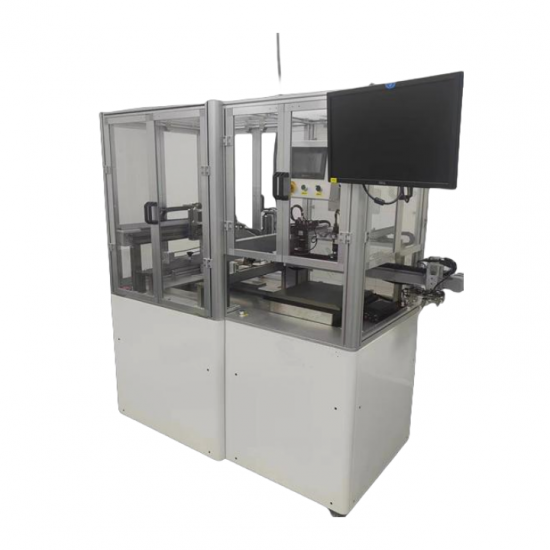

1. Basic Specifications

pecification

Content

Machine Dimensions

L1500×W840×H1620mm

Printing Area

Max 250×250mm / Min 40×50mm

Substrate Thickness

0.05mm~5.0mm

Film Thickness Uniformity

< ±0.001mm

Power Supply

3-phase, 220V, 50Hz 3.0kW

Air Pressure

0~6kgf/cm² PSI (includes air reservoir to maintain stable pressure)

2. Printing platform

Printing Table Size

360mm×360mm

Table Suction Area

260×260mm

Table In/Out Repeatability

0.001mm (servo motor + ball screw)

Table Conveying Direction

Left/Right

Printing Table Adjustment Range

X: ±4mm, Y: ±4mm, θ: ±2°

Table Alignment Accuracy

< ±0.002mm

Repeat Printing Accuracy

< ±0.005mm

Table Flatness Accuracy

< ±0.015mm

Table-to-Squeegee Parallelism

< ±0.02mm

Table-to-Frame Clamp Parallelism

< ±0.02mm

Table In/Out Speed

10~1500mm/s (adjustable)

Platform Max Lifting Stroke

15mm

Table Drive

Servo motor + linear guide + ball screw (ensures no jerking at low speed)

Table Material

Customized per customer requirements

Auto Roll Paper Function

Optional

Auto Alignment Device

CCD automatic positioning

Auto Feeding & Collecting

Automatic (per customer requirements)

3. Printing base

Printing Mode

Fixed printing head

Printing Speed

0~1200mm/s

Printing Pressure

0~20kg/cm²

Squeegee Stroke

0~300mm (digital setting)

Squeegee Height Adjustment

20mm

Squeegee Angle

-30°~30°

Flood Coater Height Adjustment

20mm

Flood Coater Angle

-30°~30°

Squeegee Leveling Adjustment

Available

Printing Drive

Servo motor

4. Frame base

Max Frame Size

550×550mm

Frame Thickness

25~50mm

Screen Fixing

4-point cylinder clamp

Screen Frame Mount

Fixed screen

Screen-to-Table Gap

0~15mm

Auto Screen Cleaning

Optional
