Item No.:
TMAX-KT-DM280Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

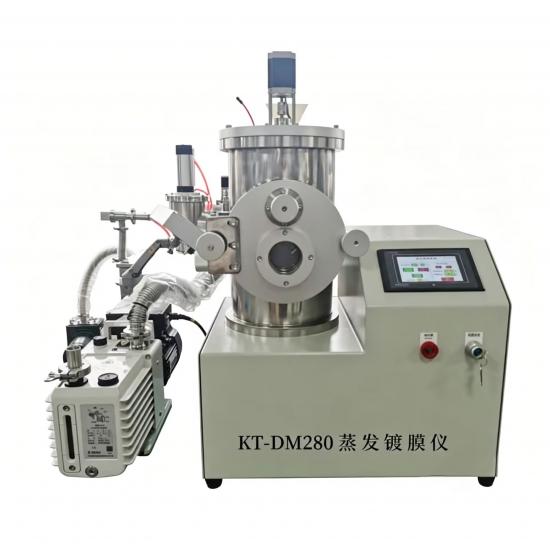

Two years limited warranty with lifetime technical supportDual-source Vacuum Evaporation Coater with 100x100mm Work size
Main technical parameters:
1. Vacuum chamber: ∅ 280mm * H420mm;
2. Maximum workpiece size that can be plated: 100*100mm, backward compatible, samples can rotate;
3. Maximum vacuum degree: better than 8*10^(-5) Pa (molecular pump system);
4. Pumping time: from atmospheric pressure to 8*10^(-4) Pa less than 40 minutes;
5. Evaporation: Resistance-type evaporation electrode (2 pairs) power: 2KW; equipped with 1 set of digital evaporation power supply, which can switch between two sets of evaporation sources for use;
6. Opening method: front-opening structure, convenient for changing the wire and loading materials;
7. Vacuum system: 4L mechanical pump + 300L molecular pump system;
8. Control system: using touch screen control.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
