Automated High Accuracy Slot Die Coater Aimed at Perovskite Photovoltaic Fabrication

The SD150 slit coating machine is a high-precision coating equipment. It features automatic liquid supply, automatic alignment, automatic cleaning, and the coating speed can be controlled in segments. The control accuracy is high. It also has the functions of heating and air knife-assisted in-situ film formation, enabling the production of precise and uniform films. It is mainly applied in the advanced manufacturing and research fields of industries such as perovskite solar cell film preparation, OLED/QLED, and fuel cells.

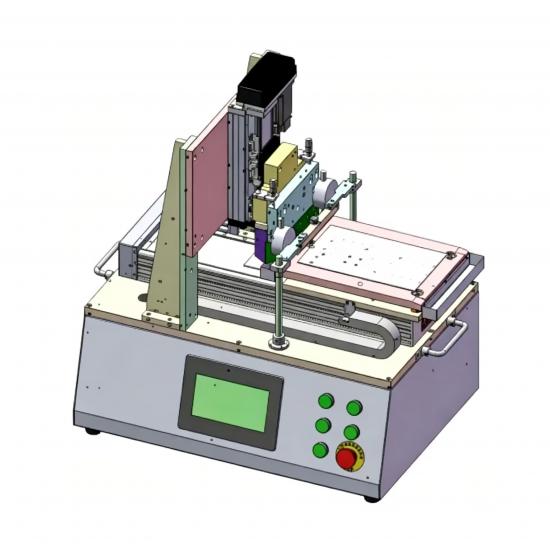

Product images (refer to actual product for accuracy)

Coating Advantages

1. Capable of forming a continuous and uniform film over a large area;

2. Automatic liquid supply and automatic cleaning;

3. Wind knife / heating platform, in-situ film formation;

4. Saves solution, saving over 90% compared to spin coating;

5. Product yield rate reaches over 95%;

6. Wide application range, including perovskite batteries, OLED, fuel cells and other fields.

Main technical parameters

1.Basic parameters of the substrate
Type	Flexible conductive PET/PEN, conductive FTO/ITO, etc.
Thickness	1–5 mm
Coating Size	150mm × 150mm; coating width compatible from 50–150mm (determined by gasket)
2. Coating Film Parameters
Coating Viscosity	<1–100 cps
Wet Film Thickness	1–100 μm
Dry Film Thickness	50–1000 nm
3. Equipment Basic Parameters
Item	Specification
Worktable	Heated table / Marble table / Aluminum alloy platform
Liquid Supply	High-precision supply pump (0.1–2000 μl/s)
Coating Speed	0–100 mm/s, freely selectable, programmable segment speeds
Control System	Siemens PLC control system
Repeatability Accuracy	±0.01 mm
Power Supply	220V, 2.5 kW
4. Die Head Parameters
Machining Precision	Die flatness/straightness ≤ 1.5 μm
Effective Die Width	150 mm
Die Cavity Volume	Approx. 4 mL
Die Material	German imported stainless steel 17-4, offering excellent corrosion resistance and stability; machined on Japanese high-precision CNC machines in a temperature-controlled workshop.
5. Equipment Operating Environment
Ambient Temperature	25℃ ± 2℃
Relative Humidity	< 70%, no condensation
Pollution Degree	Class 2; shall not be installed in dusty areas or places with corrosive gases
6. Equipment Configuration
Air Knife	Adjustable height and angle; three-side air intake with high air distribution uniformity
Control	Servo motor
Gaskets	Several gaskets of different thicknesses and widths
Dimensions	650×450×730 mm (reference)
Weight	Approx. 80 kg
