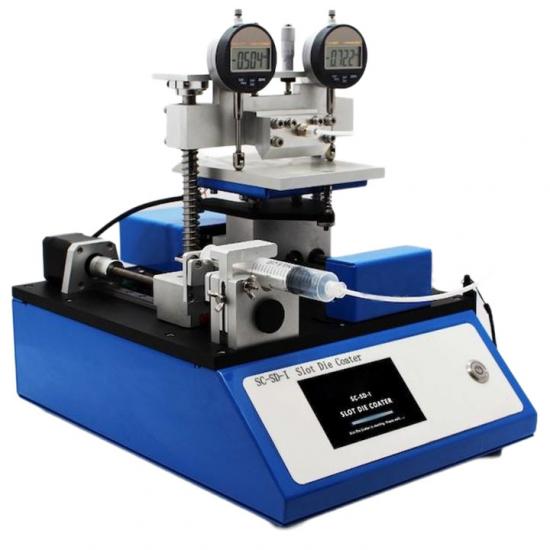

Perovskite Solar Cell Lab Plant 200C Benchtop Slot Die Coater or Slit Coater

Brand

TMAXCN

Origin

R&D by American team, production and assembly in Beijing

Slot-Die Head Coating Width

50 mm (maximum)

Slot-Die Shim Thickness

100  μm

Hotplate Temperature

200°C (maximum)

Stage Travel Length

100 mm (maximum)

Coating thickness range

1-1000  μm

Minimum Stage Speed

100  μm.s-1

Maximum Stage Speed

50 mm s-1

Minimum Syringe Speed

12  μm.s-1

Maximum Syringe Speed

5 mm.s-1

Maximum Head to Substrate Travel Distance

13 mm

Power Supply

DC 24 V, 6.2 A, via 100-240v 50/60Hz power adapter

Dimensions

Depth x Width x Height (360 mm x 280 mm x 190 mm)

Shipping Weight

＜10kg

Ambient temperature

0-40℃

Relative humidity

＜85%

Installation method

Place on a horizontal desktop

Warranty

1 year
