Item No.:
TMAX-KT-SY3050Certificate:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportSmall Vacuum Screen Printing Machine Equipped with Screen And Doctor Blades
Technical parameter
|
Equipment type |
KT-SY3050 |
|
Table size |
30*50cm |
|
Printing area |
Max. 25*35cm |
|
Maximum screen size |
45*65cm |
|
Printing speed |
1200 times per hour |
|
Voltage, power |
220V，65W |
|
Atmospheric pressure |
5-7bar |
|
Overall dimension |
72*65*110cm |
|
Printing height |
Max.12cm |
|
Driving mode |
Pneumatic |
|
Left and right stroke cylinder |
MAL25-400U |
|
Up and down stroke cylinder |
SC50-150 |
|
Net fuselage weight |
90KG |
|
Doctor blade cylinder |
CQ2B 32-25 |
|
Other configuration |
with vacuum adsorption |
|
Other |
Included is one screen and two doctor blades.
Note: This equipment pneumatic cutter, self-configured air compressor |

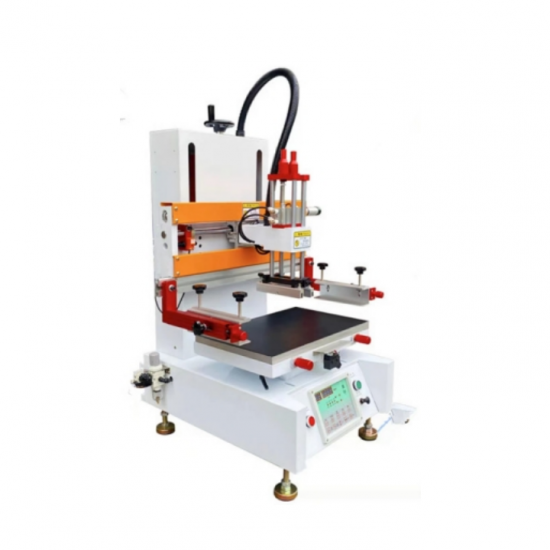

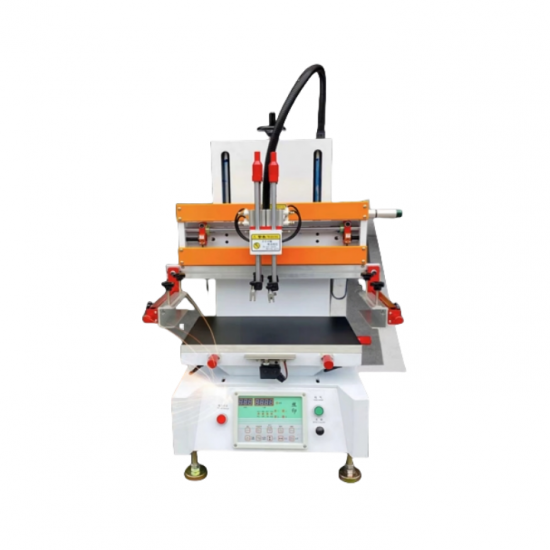

Reference picture
