Item No.:
TMAX-KT-SY3050Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical supportSmall Pneumatic Screen Printer with Vacuum Worktable for Laboratory Use
Equipment Introduction:

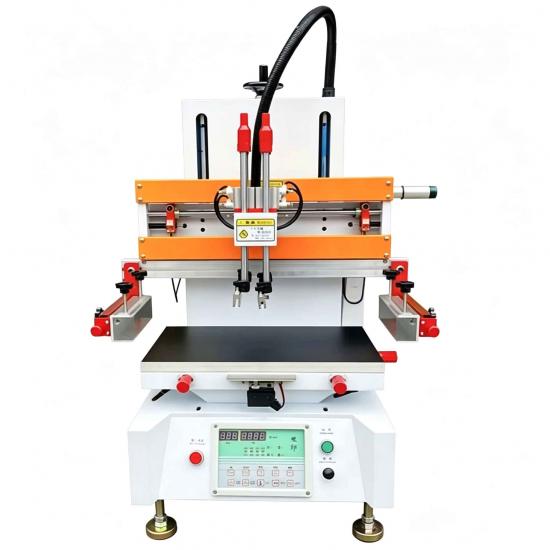

The KT-SY3050 is a small tabletop screen printing machine that uses pneumatic scraper for printing. It is suitable for small-sized printing and laboratory pattern printing.
Main parameters of the equipment:
|
Model |
KT-SY3050 |
|
Table Size |
30*50cm |
|
Max Screen Frame Size |
45*65cm |
|
Voltage / Power |
220V, 65W |
|
Air Pressure |
5-7bar |
|
Dimensions |
72*65*110cm |
|
Horizontal Stroke Cylinder |
MAL25-400U |
|
Vertical Stroke Cylinder |
SC50-150 |
|
Squeegee Cylinder |
CQ2B32-25 |
|
Other Configurations |
With vacuum adsorption |
|
Remarks |
Pneumatic blade lifting; air compressor to be provided by user. Comes with one free screen frame and two squeegees. |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
