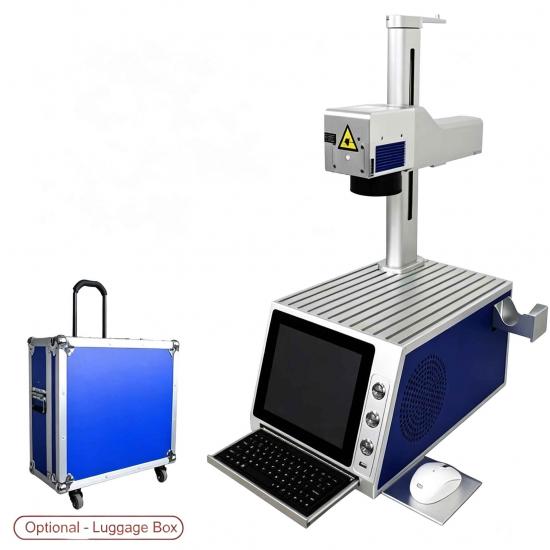

Two years limited warranty with lifetime technical supportLab Mini Laser Scribing Machine Designed for Transparent Conductive Oxides and Flexible Materials
Usage Introduction:
This is a small laser etching machine equipment, used for etching and marking lines on ITO/FTO and flexible conductive substrates. It can also be used for removing other films, marking lines and cutting silicon wafers, etc.
Technical Specifications
|
Laser Power |
20W |
|
Wavelength |
1064nm |
|
Service Life |
100,000 hours |
|
Software Support |
Compatible with dedicated software, AutoCAD, CorelDRAW, Photoshop, and other software formats. |
|
Frequency Range |
20-80KHz |
|
Max Engraving Size |
100mm~150mm |
|
Min Line Width |
<0.02mm |
|
Machine Dimensions |
300*460*700mm |
|
Outer Box Dimensions |
600*270*600mm |
|
Other Configurations |
Touch-screen computer, hidden keyboard and mouse, one-year free warranty. |
|
Free Gifts |
One suitcase, a quantity of conductive glass, free training |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
