Call at +17759004070

Leave a message Gia@tmaxlaboratory.com

Products
Home Ball Mill Machine

Ball Mill Jar

High Corrosion Resistance PTFE Grinding Tank for Roller Drum Ball Mill Machine

High Corrosion Resistance PTFE Grinding Tank for Roller Drum Ball Mill Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PTFERjar
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    10 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

High Corrosion Resistance PTFE Grinding Tank for Roller Drum Ball Mill Machine



Product Introduction

   PTFE has the characteristics of "non-stick coating" or "easy-to-clean material". It is resistant to acids and alkalis and does not dissolve in many solvents. At the same time, it also has the features of high temperature resistance and extremely low friction coefficient.


Product feature

1. The entire product is made of high-quality polytetrafluoroethylene selected for its excellent corrosion resistance, high temperature resistance, low temperature resistance, low adhesion, anti-aging property, extreme lubricity, and non-toxicity.

2. The entire grinding jar is manufactured from a single piece of raw material, with no gaps or seams, thus avoiding the occurrence of leakage and cracking accidents.

3. The shape perfectly matches the drum ball mill, and it is sold directly by the manufacturer with high cost-effectiveness.

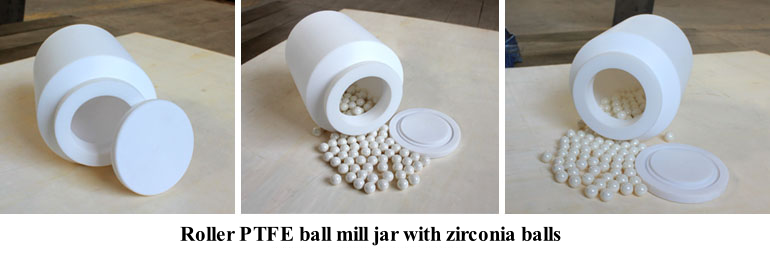

Product picture

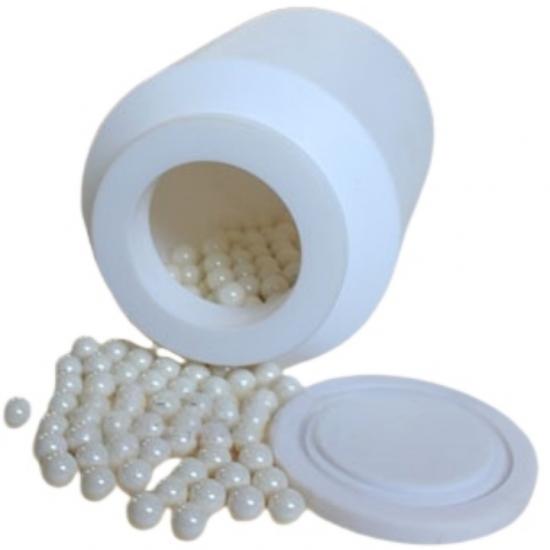

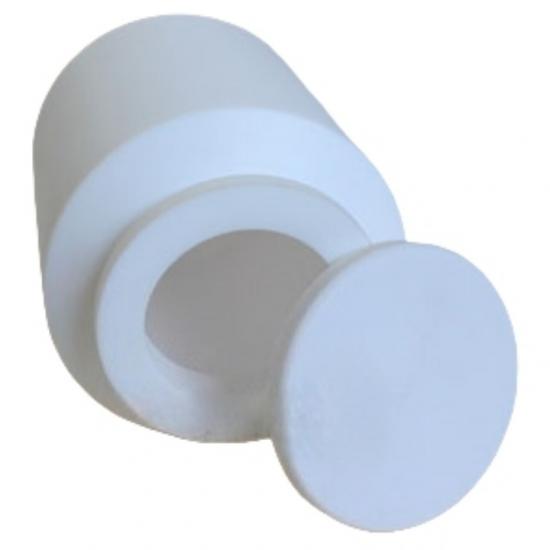

PTFE Grinding Tank


Product parameter


Parameters of PTFE Mill Jar

Model

External Diameter
(mm)

Inner Diameter (mm)

Height (mm)

500ml

108

88

115

1L

133

109

142

1.5L

133

109

178

2L

158

134

172

2.5L

158

134

202

3L

158

138

210

4L

178

158

226

5L

218

190

217

10L

246

218

307

15L

273

243

372

20L

320

285

359

25L

320

285

424








 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
