Low Pollution Planetary Nylon Grinding Tank for Fine and Precise Grinding

Product Introduction

The nylon ball mill jar is a high-quality grinding jar. The nylon jar contains no metal impurities and is the preferred grinding jar for various metals and high-grade pigments. It can be widely used in industries such as precious metals, electronic ceramics, magnetic materials, and color paint.

Product features

1. Pure white nylon, with exquisite appearance;

2. Non-metallic material, no metal impurities introduced during grinding process;

3. Professional design, meticulous workmanship, beautiful and high-quality;

4. High strength, good toughness, excellent sealing performance.

Product picture

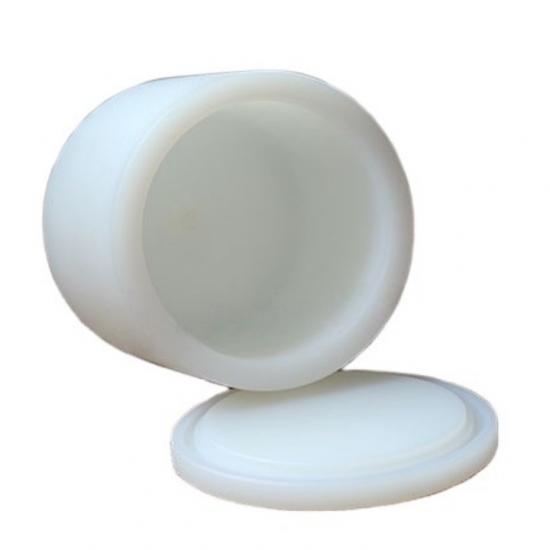

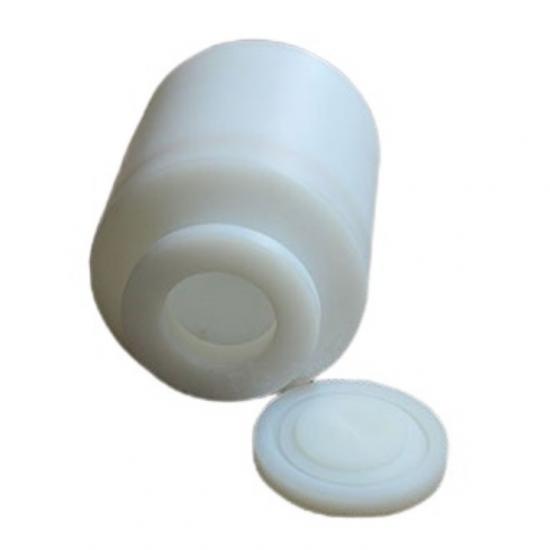

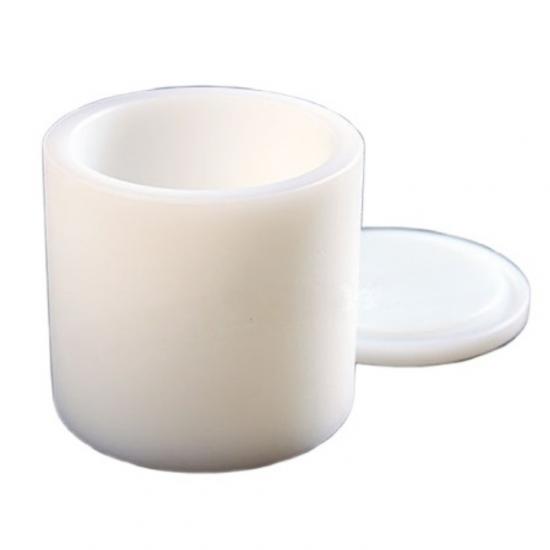

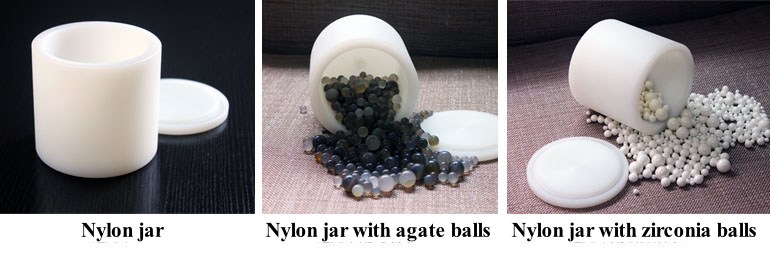

Nylon Grinding Tank

Product Parameter

Parameter of Nylon Mill Jar for Planetary Ball Mill
Volumn of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
25ml	31	63	40	56	65	0.21
50ml	43	63	40	50	59	0.15
100ml	48	68	55	65	76	0.21
250ml	68	88	75	85	98	0.39
500ml	88	108	90	100	115	0.61
1L	109	133	118	130	142	0.98
1.5L	109	133	154	166	178	1.18
2L	134	158	148	160	172	1.45
2.5L	134	158	178	190	202	1.65
3L	138	158	190	200	210	1.45
4L	158	178	212	214	226	1.67
5L(packeged 2mm stainless steel)	190	218	186	200	217	4.97
10L(packeged 2mm stainless steel)	218	246	276	290	307	7.83
15L(packeged 3mm stainless steel)	243	273	335	350	372	12.98
20L(packeged 3mm stainless steel)	285	320	320	335	359	16.18
25L(packeged 3mm stainless steel)	285	320	385	400	424	18.74
Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG
