Product introduction
The vacuum stainless steel grinding jar is specially designed for materials that are prone to oxidation during the grinding process. Through the unique sealing design of the grinding jar, it can be evacuated and then inert gas can be introduced to separate the material from oxygen, water or other substances in the air that may affect the grinding process, thereby avoiding oxidation and reducing the contact between the material and other substances that may affect the grinding effect.
Product features
1. Special valve design, easy to operate, strong sealing performance
2. Made of stainless steel, and can also be lined with other materials such as nylon, polyurethane, corundum, etc., with strong versatility

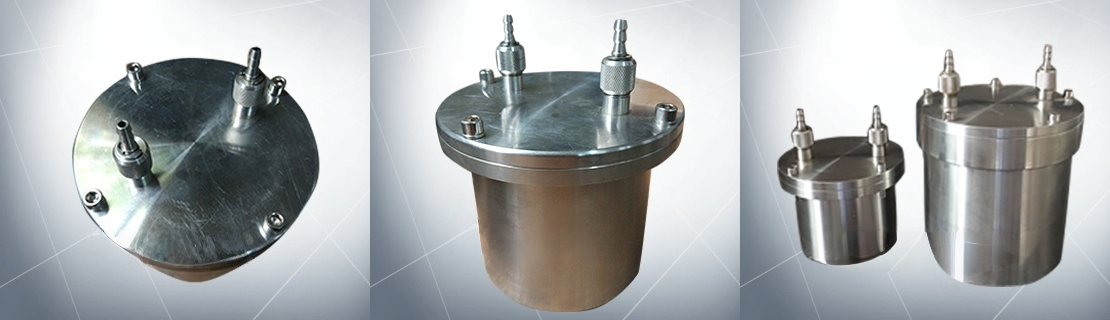

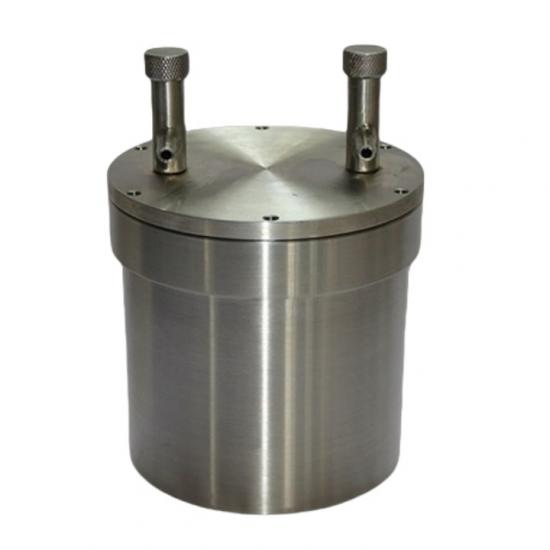

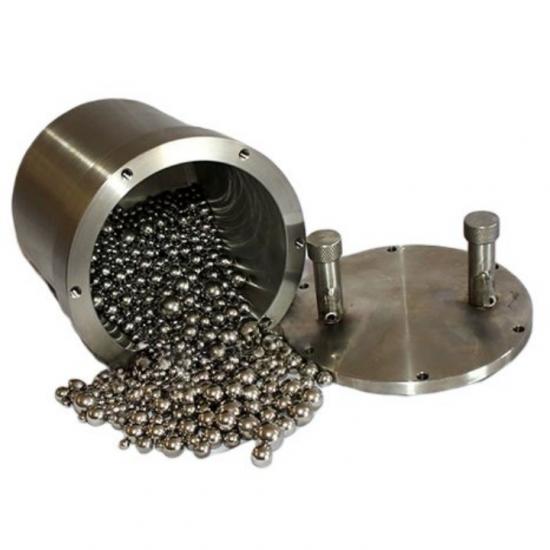

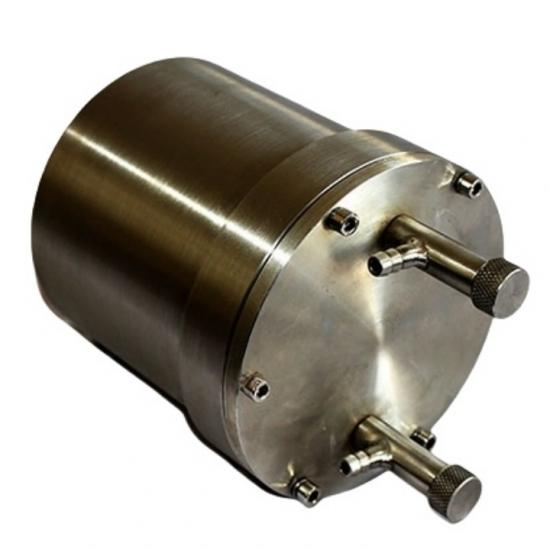

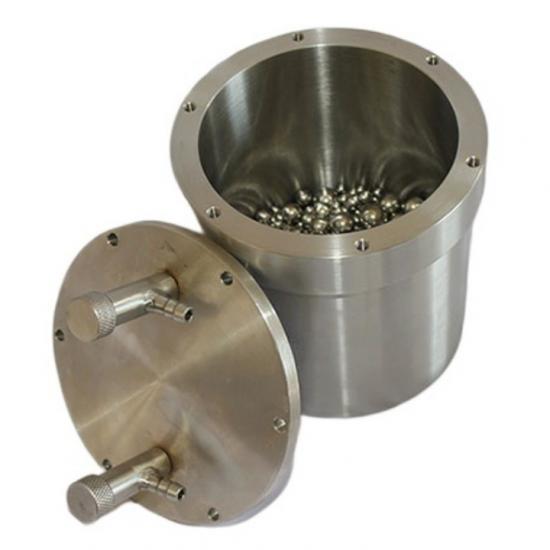

Product picture
Product Parameter
|
Parameters of Stainless Steel Vacuum Mill Jar for Planetary Ball Mill |
||||||
|
Volume of Jar |
Inner Diameter |
External Diameter |
Inner Depth (mm) |
Height of Not Containing Cover |
Total Height |
Weight (KG) |
|
50ml |
39 |
49 |
45 |
50 |
58 |
0.7 |
|
100ml |
48 |
62 |
57 |
65 |
72 |
1.3 |
|
250ml |
73 |
88 |
65 |
73 |
80 |
2.1 |
|
500ml |
90 |
107 |
93 |
100 |
107 |
3.5 |
|
1L |
115 |
132 |
118 |
128 |
135 |
5.4 |
|
1.5L |
115 |
131 |
143 |
150 |
158 |
5.8 |
|
2L |
141 |
153 |
133 |
140 |
149 |
6.3 |
|
3L |
141 |
157 |
198 |
205 |
213 |
9.2 |
|
4L |
168 |
178 |
200 |
205 |
213 |
9.2 |
|
5L |
182 |
192 |
200 |
205 |
213 |
10.2 |
|
Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG |
||||||
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
