Product Details

50ML to 2L High Temperature Resistant Agate Grinding Jars Used for Planetary Ball Mill

Brief introduction

Natural agate has high hardness, is wear-resistant and does not introduce impurities. Therefore, when grinding high-purity materials, planetary agate jars are generally chosen.

Application scope

The planetary agate ball mill tank is widely used in ball milling processes for electronic materials, optoelectronic materials, biomedicine, scientific research and chemical industry, ceramic glaze slurry, non-metallic minerals, and new materials, etc., where high-quality ball milling is required.

Product features

1. High gloss, strong shock resistance. Experimental results show that the agate jars after high-speed vibration wear have no obvious unevenness.

2. The planetary agate jars are made from imported agate stones from Brazil and Uruguay. They have bright colors and high hardness.

3. The planetary agate jars have strong heat resistance and acid-base resistance. They can be used in acidic grinding media.

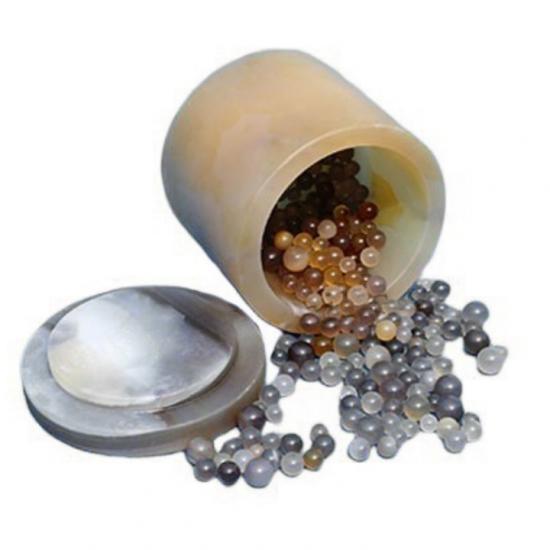

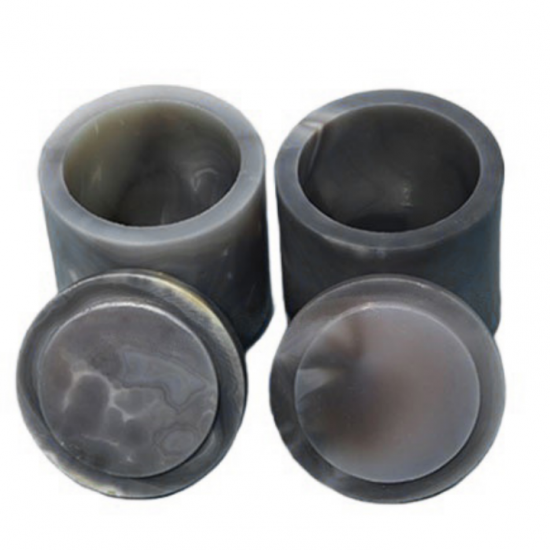

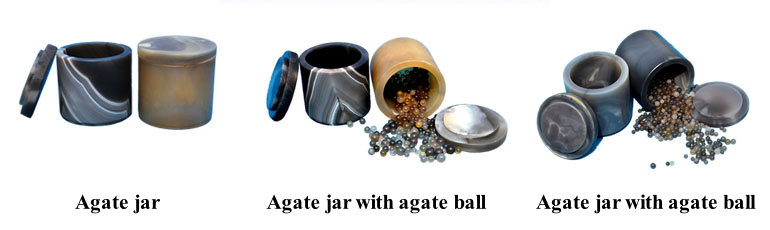

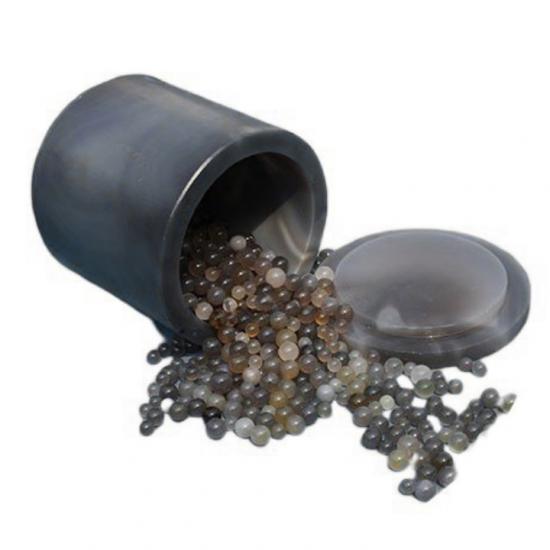

Product picture

Agate Grinding Jars for Sale

Product parameter

Parameter of Agate Mill Jar
Volume of Jar	Outside Diameter (mm)	Inner Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
50ml	65	45	37	49	57	0.36
100ml	75	50	52	62	70	0.56
150ml	90	62	55	70	80	0.93
250ml	94	73	70	80	90	0.84
300ml	102	79	71	81	95	1.18
400ml	106	80	80	93	103	1.38
500ml	106	82	90	100	108	1.31
1L	130	107	114	126	141	2.54
2L	156	130	150	170	190	4.43
Remarks: 1. Size deviation within ±2mm; 2. Every specification has A or B two grades with the same size(B grade agate packaged 1mm stainless steel outside; 3 The above weight is for A grade agate jars, deviation within ±0.2KG.
