Corrosion Resistance PTFE Planetary Ball Mill Tank with High Electrical Insulation





Product Introduction

   Polytetrafluoroethylene (Teflon or PTFE), commonly known as "the king of plastics", is a high molecular compound formed by the polymerization of tetrafluoroethylene. It possesses excellent chemical stability, corrosion resistance, sealing property, high lubrication and non-stickiness, electrical insulation, and good resistance to aging and wear. Polytetrafluoroethylene Grinding Vessel is professionally designed, made of selected polytetrafluoroethylene materials, and processed as a whole.


Product features

1. High temperature resistance: The working temperature can reach up to 250℃.

2. Low temperature resistance: It has excellent mechanical toughness; even when the temperature drops to -196℃, it can maintain a 5% elongation rate.

3. Corrosion resistance: It shows inertness towards most chemical substances and solvents, and can withstand strong acids, strong alkalis, water, and various organic solvents.

4. Weather resistance: It has a better aging life than plastics.

5. High lubricity: It is the material with the lowest friction coefficient among solid materials.

6. Non-adhesion: It has the smallest surface tension among solid materials and is not prone to adhering to any substances.

7. Non-toxic: It has physiological inertness and, as an artificial blood vessel or organ, has no adverse reactions when implanted in the body for a long term.

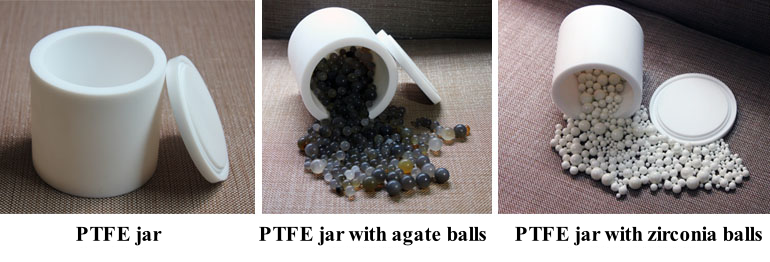

Product picture

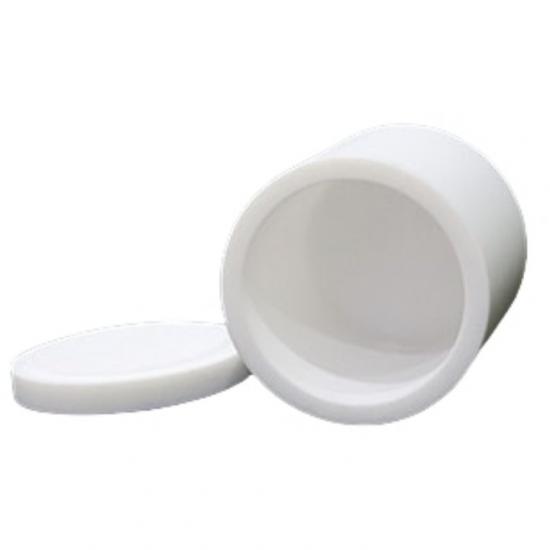

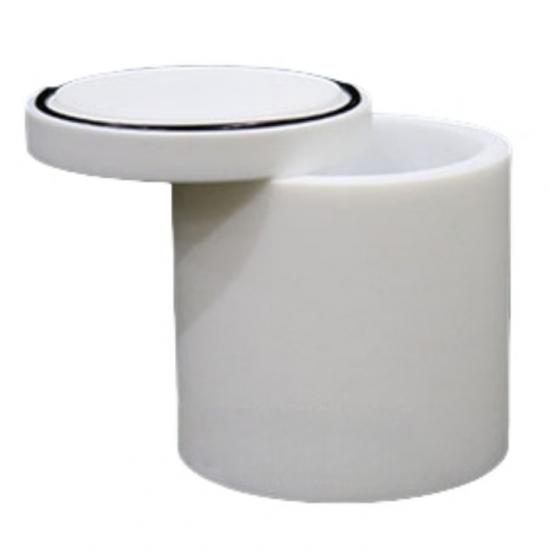

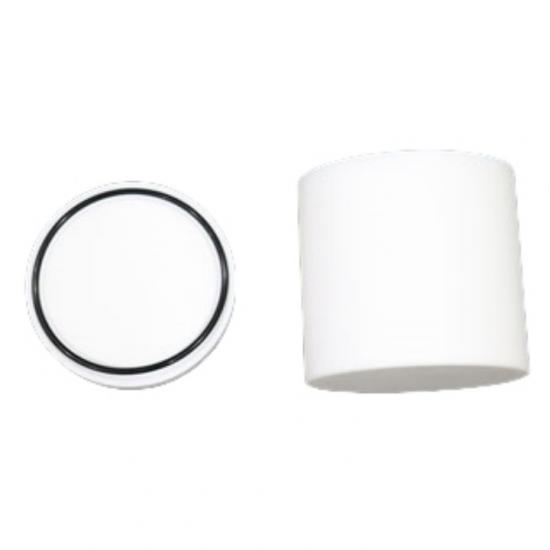

PTFE Ball Mill Tank


Product parameter

Parameters of PTFE Mill Jar

Model

External Diameter
(mm)

Inner Diameter (mm)

Height (mm)

25ml

63

31

65

50ml

63

43

59

100ml

68

48

76

250ml

88

68

98

500ml

108

88

115

1L

133

109

142

1.5L

133

109

178

2L

158

134

172

2.5L

158

134

202

3L

158

138

210

4L

178

158

226

5L

218

190

217

10L

246

218

307

15L

273

243

372

20L

320

285

359

25L

320

285

424



We can customize PTFE jars of various specifications and sizes according to customer requirements.
