High Hardness Zirconia Planetary Mill Tank with Ultra-Low Wear

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-ZrOjar
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
10 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

High Hardness Zirconia Planetary Mill Jar with Ultra-Low Wear

Product introduction

Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc. Zirconia mill jar is particularly suitable for vertical stirring mill, horizontal rolling mill, vibration mill, and various high-wire-speed sanding stick pins, etc.

Pure zirconia is a high-grade refractory material with a melting point of 2715℃. It can enhance the high-temperature viscosity of the glaze and expand the temperature range of viscosity changes. It has good thermal stability. When its content is 2%-3%, it can improve the crack resistance of the glaze. Due to its high chemical inertness, it can enhance the chemical stability and acid-base resistance of the glaze, and also play the role of a opacifier. The molecular weight of pure zirconia is 123.22, and the theoretical density is 5.89g/cm³.

Hardness of zirconia: 12.3 (GPa)

Consumption resistant: 0.48(ppm/hrs)

Product feature

1. High hardness, high strength, high tenacity, high wear resistant and good corrosion resistant.

2. Strong acid resistant and alkali resistant.

3. Wear-resistant, corrosion-resistant.

4. No pollution.

5. High grinding efficiency.

6. Long life and low cost integrated.

7. Wet grinding and dispersion of occasions.

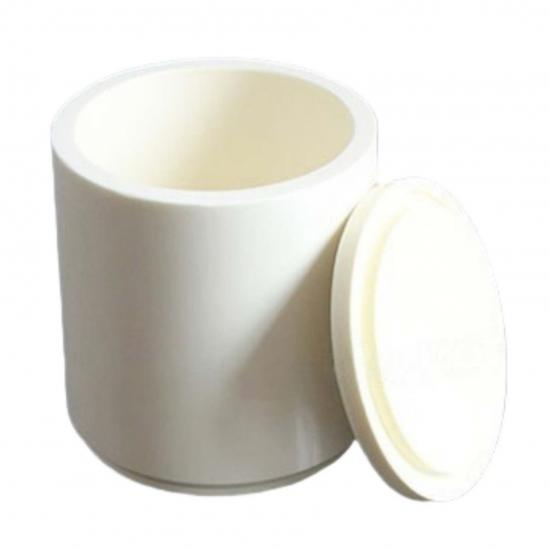

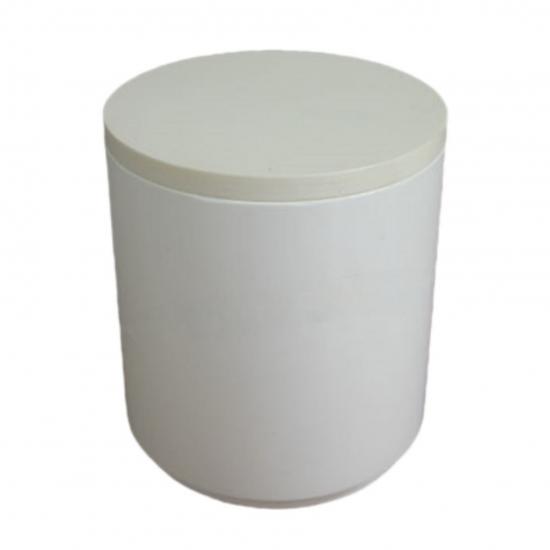

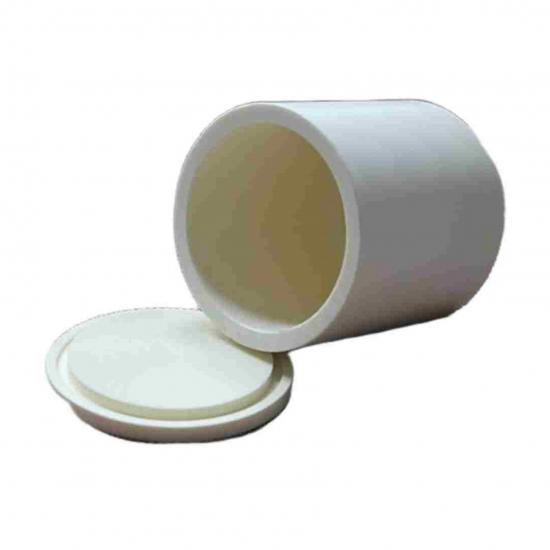

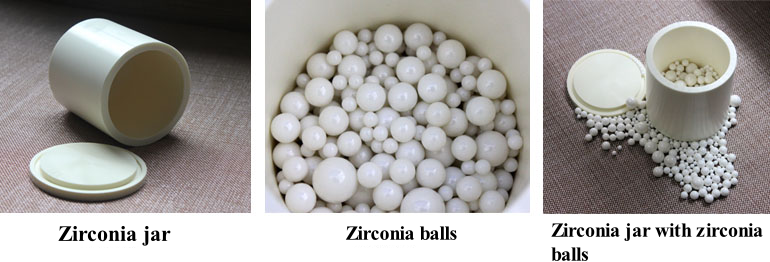

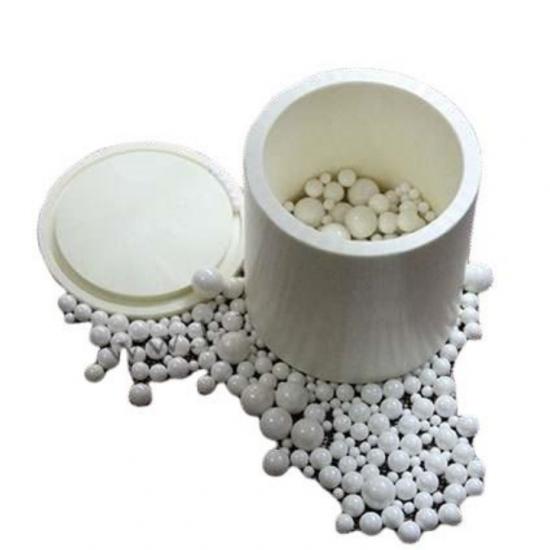

Product picture

Zirconia Tank Price

Product parameter

Parameters of Zirconia Mill Jar
Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
50ml	38	55	52	60	67	0.6
100ml	50	65	58	66	75	0.8
250ml	74	92	70	78	88	1.8
500ml	84	100	100	108	118	2.3
1L	108	128	128	138	148.5	4.7
1.5L	112	132	155	165	175.5	5.5
2L	138	158	140	150	162	6.9
2.5L	138	158	170	180	192	7.8
3L	138	158	198	208	220	8.6
4L (packaged 2mm stainless steel)	175	205	205	222	231	14.8
5L (packaged 2mm stainless steel)	170	192	228	240	254	16.7
Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG
