512 Channel 5V2A Battery Capacity Tester for Polymer Battery

512 Channel 5V2A Battery Capacity Tester for Polymer Battery

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-512-2LP
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Market price:

    $1880
  • Price:

    $1680
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

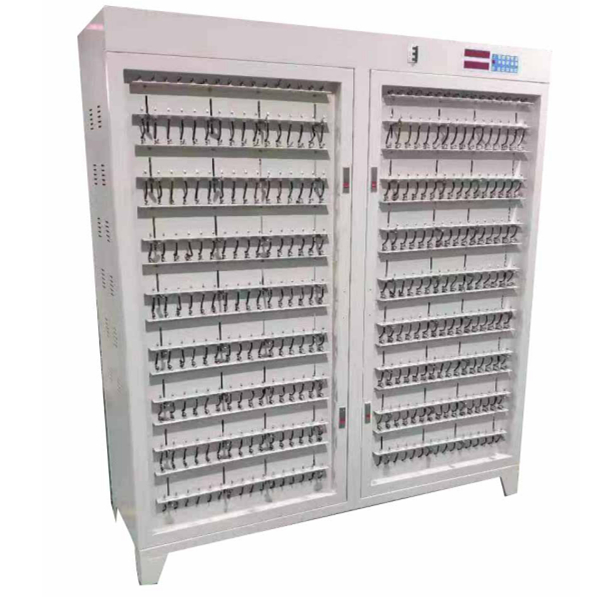

512 Channel 5V2A Battery Capacity Tester for Polymer Battery


TMAX-512-2LP The device is mainly composed of a communication interface and a battery detection cabinet. The battery testing cabinet is composed of battery clamp and a plate body to placing fixture, a constant current constant voltage source, a registration control circuit, a sampling circuit, a single chip microcomputer and a control panel.


This is 5V2A forming and grading machine,also provide other specification forming and grading machine ,like 5V5A,5V10A, please contact with us to get more specificaton.


Technical parameter

Model

TMAX-512-2LP

Channel No.

512

Workflow control method

Whole Cabin control

Charging model

Constant voltage,constant current

Charge cutoff condition

Voltage, current, time, capacity

Discharge mode

Constant current

Discharge cutoff condition

Voltage, time, capacity

Sampling inspection cycle

≤10s

Voltage measurement range

0~5V,Resolution 1mV

Battery voltage range

Charge:0~4.5V,Discharge:4.5~2.5V

Constant voltage range

3~4.5V

Voltage accuracy

±(0.05%RD+0.1%FS)

Current range

Charge:0.01-2A,Discharge :0.01-2A,Resolution:1mA

Current accuracy

±(0.1%RD+0.1%FS)

Time Set Range

Any setting within 0~30000 minutes, the time unit is min

Time accuracy

≤±0.1%

Clamp type

Polymer clamp

Clamp adjust range

70mm

Support battery type

Pouch cell

Voltage source

3 phase 4 wire , AC380V±5% , 50HZ , Power consumption9.5KW

communication method

RS485,Baud rate 57600

Machine size

1440mm(length)×500mm(width)×1840mm(height

working environment

Temperature:0-40℃,related temperature≤85%

Full load operating current

Phase line up to 15A, zero line up to 3A

Device startup current

Air switch closing moment about 60A

N.W

Anout 350kg

System main

configuration requirements



Minimum configuration of computer system: CPU above P4, memory above 2G, hard disk space above 200G, EGA/VGA color display, one CD-ROM, one mouse, MicrosoftTM Windows XP and above, one available RS232 serial communication port, Windows support Printer. The computer system is self-contained by the user, and the number of microcomputer systems is determined according to actual needs.



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
