Item No.:
TMAX-PC-40JPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
One year limited warranty with lifetime technical support

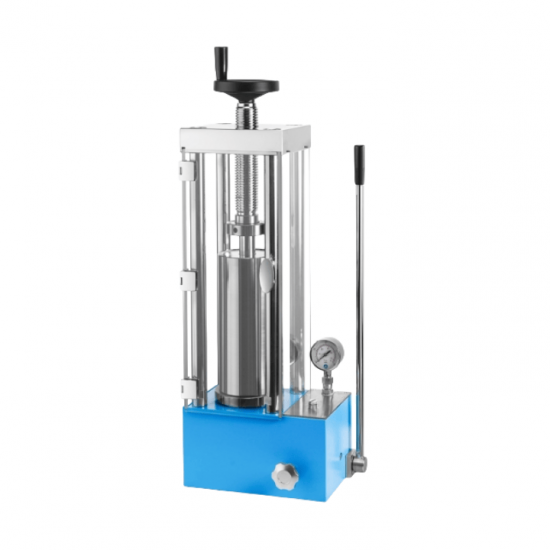

40T 30MPa Digital Pointer Manual CIP Isostatic Press Machine with Organic Glass Protective Cover
Cavity mold diagram
Cavity mold operation diagram
Operation procedure
Technical parameter
|
Instrument type |
PC-40J |
|
Pressure range |
0-40T(0-30MPa) |
|
Piston diameter |
Chrome-plated cylinder Φ130mm(d) |
|
Overall structure of the main body |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
Dual-scale display of pressure and intensity |
|
Maximum piston stroke |
50mm(T) |
|
Protective cover |
Organic glass |
|
Ambient temperature |
10℃-40℃ |
|
Isostatic pressure |
φ40x150mm(MXN) 0-300MPa φ30x150mm(MXN) 0-500MPa |
|
Equipment weight |
130Kg |
|
Equipment size |
355x215x710(LXWXH) |
|
Powder press size diagram |
|
Pressure conversion
Note: Generally, the system pressure should not exceed 35MPa; otherwise, it will affect the service life of the equipment.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
