30T Lab Manual Hydraulic Heat Press With Two Heating Platens

30T Lab Manual Hydraulic Heat Press With Two Heating Platens

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-YLJ-HP300
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

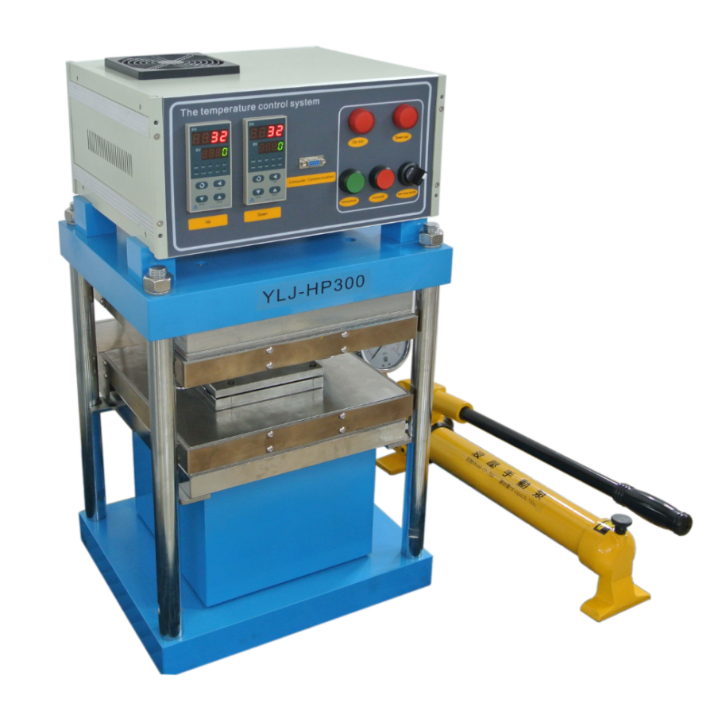

30T Lab Manual Hydraulic Heat Press With Two Heating Platens



YLJ-HP300 is CE certified and UL-ready 500°C Max. lamination hot press, which consists of a 30T hydraulic press with two heated  platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately up to 500°C.  The platen ( 300 x 300 mm area)  are made of harden Cr12MoV alloy with a flat surface. Water cooling jackets are installed with the heating platen that allows heated plate get faster cooling. One pressure gauge ( 300 kN) is also mounted to monitor the pressure applied on the platen. It is an excellent tool to prepare polymer and ceramic samples.


 Technical parameters


Equipment name and model

Hot press YLJ-HP300

30T hydraulic press

-Split design for easy maintenance

-Maximum pressure: 30T

-Manual operation

Pressure comparison table



Pressure gauge measurement accuracy

Measurement accuracy: 2.5

Hot pressing plate

Hot pressing area: 300mm*300mm (effective area: 280*280mm)

Material: heat-resistant mold steel

Surface: Grinding machine processing

Cold state, flatness of upper and lower heating plate <0.04mm (within the effective area of 280mm*280mm)

Maximum cylinder lift

80mm

Do not exceed this lift during the experiment

Temperature control system

Upper and lower heating zones

There is a separate temperature control box to control the temperature, with two sets of temperature control

Maximum temperature: 450℃ (continuous), 500℃ (<30min)

Temperature rise rate:0-400℃≤3℃/min, 400-500℃≤2℃/min

Temperature control precision: ±8℃

Heating rate

≤2℃/min

Water-cooled section

Water-cooled upper and lower heating plates

Water cooler: KJ-5300 water cooler (optional)



Overall dimensions

External dimensions of temperature control system: 360 (L) x 300 (W) x 190 (H) mm

Press dimensions: 400 (L) x 320 (W) x 540 (H) mm

Thickness of materials that can be put in

≤75mm

Switchboard power supply

220V/50HZ

Wattage

4.5KW

Weight

240KG

Warranty

One year warranty, lifetime technical support

Precautions for use

-No overpressure and over-temperature use, the preset temperature is 500 degrees, the highest preset pressure can not be greater than 24Mpa.

-Please make sure to pass the water cooling before heating to prevent damage to the press, please check the water level of the water cooler before use.

- When the material size is too fine, the gap between the middle extruding bar of the mold and the material extruding wall is 0.005mm, some fine materials will fall into the gap, which will cause damage to the mold. Therefore, it is recommended to sieve the powder (200 mesh and 800 mesh sieve) before pressing the material to remove small and large particles (only take the powder between 200-800 mesh), due to the powder is too fine or the mold is not clean and caused by the damage of the mold, the company does not assume the corresponding responsibility.

-If the machine is not in use for a long time, please run the press to 2-3Mpa (at room temperature) and tighten the screws of the oil drain valve and oil filling valve.



Items

Requirement

Provider

Remark



Electricity supply

Single-phase AC 220V ± 10%, frequency 50/60HZ, power 4.5KW

Client provided

Client provided



Need to prepare a single-phase voltage AC 220V 50HZ, maximum current 10A plug board

Need to prepare a single-phase voltage AC 220V 50HZ, the maximum current 10A plug board







Client provided



Earth (electric connection)

Ground wire with resistance less than 4Ω

Client provided



Water chiller









The equipment needs to be connected to water cooling when working, a water cooler is needed.

Customer options




Packing list


Equipment No.



Destination



Serial number

Accessory name

Specification

Unit

Amount

Remark

1

Hot press machine

YLJ-HP300

Piece

1

Mainframe

2

Temperature control box



Set

1

Installed

3

Polyurethane hose (white transparent)

Outer diameter φ12*inner diameter φ8mm



Set

1



4

Allen wrench

M2.5 M3 M4 M5 M6

Piece

5



5

Instruction manual



Book

1






 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
