25T Lab Manual Hydraulic Heat Press With Two Heating Platens

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-YLJ-HP88V-350
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

25T Lab Manual Hydraulic Heat Press With Two Heating Platens

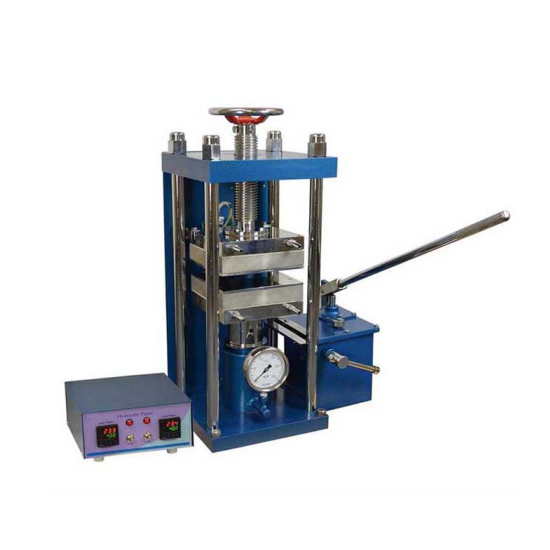

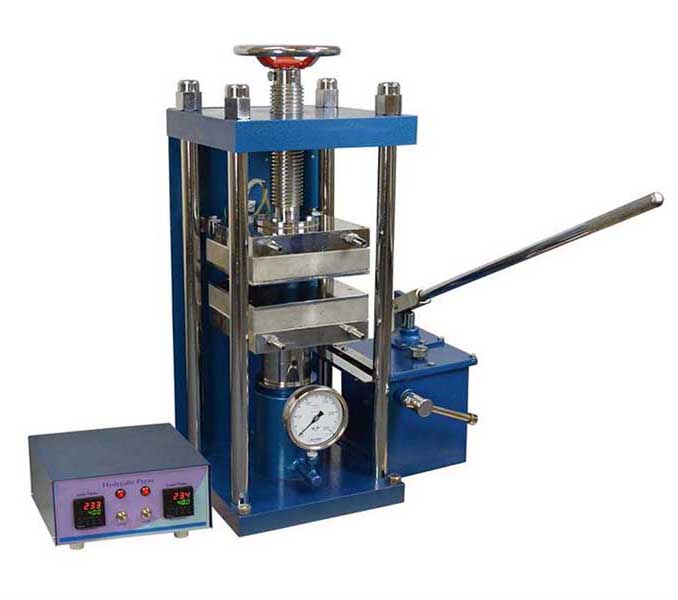

YLJ-HP88V-350 consists of a hydraulic press with manually operated oil pump & two heated platens. The temperatures of heated platens are controlled by two digital temperature controllers separately up to 350°C. Water cooling jackets are installed with the heating plate that allows heated plate get faster cooling. One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the plates. It is an excellent tool to prepare polymer and ceramic samples up to 7.5"x7.5".

Specification

Max.Working Pressure	25 metric Tone ( 250 KN)
Voltage	220VAC +/-10%, 50/60Hz 4000W Max. ( 25A breaker required )
Pressure Gauge	Measuring Accuracy is +/-1.25 KN
Heated Platen Area	Platen Area:200mm x 200mm Material:Headen Steel Surface:Flat with CNC grinding
Max. Travel Distance	140mm Max
Max. Working Temperature	15 minutes Max at 350°C without water cooling. 350°C continuously with water cooling. 250°C continuously without water cooling.
Heating Rate	3°C/min
Water Cooling Requirement	3 pairs (6 ports) of barbed fittings for water cooling. Hydraulic cylinder cooling with a pair of barbed fittings for 10mm I.D. tube. Water-cooling is required to prevent oil sealing gasket from melting and to ensure the cylinder's performance. (Click pic to the left for detail.) Top and bottom heating plate with two pairs of barbed fittings for 10mm I.D. tube. Water cooling hot plate is possible for rapid sample cooling after a hot pressing process. Water flow requirement: ≥10L/min, <25°C, >25PSI
Temperature Control	Two digital controller installed in one box with one point control and auto-tune faction Temperature accuracy ±1°C.
Power Requirement	220VAC +/- 10% ( 208 - 240V) 3800W max.
Compliance	CE Certified
Shipping Size	50''(L) x 41''(W) x 46''(H)
Shipping Weight	500 lbs
Warranty	Two years limited warranty with lifetime support
